200 TPH rotary drum washer gold scrubber washing machine
- 10 Set / Sets per Month
- Xiamen/Shenzhen
- T/T Credit Card
- Hot sale best price metal ore crusher,metal ore crusher with CE
- Hot Selling jaw stone crusher jaw grinder and crusher manufacturer
- Hot Selling jaw stone crusher jaw crusher capacity 110-250tons congo
- Hot sale New type sand making plant in india for sale with low price
- High quality crushed stone processing and pulverized mineral processing
- Zenith construction sand making plant,construction sand making plant price
Product Details
Condition: | New | Type: | Gravity Separator | Production Capacity: | 98% |
Place of Origin: | Jiangxi, China | Brand Name: | JXSC | Model Number: | JXSC-2200 |
Voltage: | 380V | Power(W): | 55kw | Dimension(L*W*H): | Diffrent Model |
Weight: | 5000-6000kgs | Certification: | ISO9001:2008 | Warranty: | 12months |
After-sales Service Provided: | Overseas third-party support available |
Product Description
200 TPH rotary drum washer gold scrubber washing machine
rotary drum washer
gold scrubber washing machine
drum washer
Description of 200 TPH rotary drum washer gold scrubber washing machine :
The gold washing trammel scrubber is consisted of two parts: one is for washing the clay, another is for sieving different sizes ores. There are 4 carrier rollers to support the drum. The machine is working rotary through the gear in the middle of the outside drum. In the washing part, it’s a closed space ,there are some plate in this part. When the material is fed from the feeder to the washing part, during the force of watering and striking, the clay and ore will be separated, the fine particle will be flowed to the sieving part. The sieving screen will separate different size ores, the ore bigger than screen mesh will go to the discharge hopper, and the small ores will be flow out from screen mesh and go to next machine, such as sluice box, centrifugal concentrator, shaking table ect.
Application of 200 TPH rotary drum washer gold scrubber washing machine :
gold washing rotary scrubber/gold trommel scrubber/ durm scrubber washer /trommel scrubber is mainly used for washing alluvial ores which is with much sticly clay, such as alluvial gold /coltan ore/ black sand/alluvial tin/alluvial chrome,ect.
Main structure of 200 TPH rotary drum washer gold scrubber washing machine :
1. Drum : For washing the clay.
2. Inner plate: separating the clay and ores.
3. Sieving screen: for sieving different sizes ores, the screen mesh size& layer quantity & screen materials can be made according to customer need.
4. Motor: electric or diesel according to your needs.
5. Carrier rollers: For support the drum
6. Gear, Reduction Box, coupling.
7. Frame: Supporting the reduction box and motor.
Specifications for 200 TPH rotary drum washer gold scrubber washing machine :

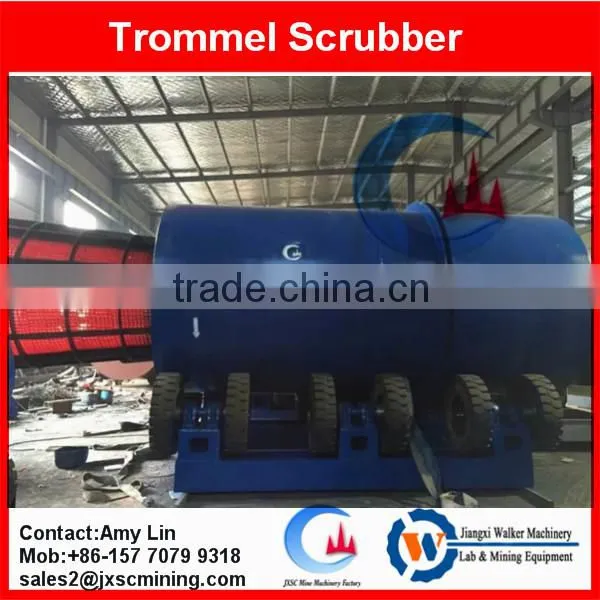

Detail pictures of 200 TPH rotary drum washer gold scrubber washing machine :
Loading picure and delivery of 200 TPH rotary drum washer gold scrubber washing machine :
200 TPH rotary drum washer gold scrubber washing machine installed at customer mine site:
Some parts of alluvial gold washing machine gold drum washer can be made different materials, detail information as below:
Screen Material:
1. High manganese steel: normal material
2. PU material: wear-resistance, long life time, corrosion resistant, splicing technology, replacable,easy to replace.
3. Stainless steel : wear-resistance, long life time, corrosion resistant, splicing technology, replacable.
Linning Plate:
In order to increase the washing effect, we always put linning plates insider of the drum scrubber part, it can be made below two kinds material:
1. High manganese steel: normal material, can’t be replaceable.
2. Natual rubber: wear-resistance, long life time, corrosion resistant, replacable, easy to replace.
Transmission way:
All natual rubber wheel driving
Below Detail Specifciations and features of this set 200 TPH rotary drum washer gold scrubber washing machine :
- Model : JXSC-2200
- Process capacity: 180-200T/H.
- Drum dia: 2.2m, length 6.5m( 4.5m wash + 2m screen)
- Feeding size: <230mm
- Screen: 1 layer screen, sieve mesh 25mm
- Screen material: PU material, wear-resistant, long life time, replable.
- Linning plates: Iron steel material, can wash more clean the clay.
- Transmission : by solid rubber wheels, each side 6 wheels, good quality, long life time.
- 3 set driving motor power: 18.5kw*3=55.5kw
- With control carbinet
We have many other designed gold trommel scrubber/drum scrubber/rotary drum scrubber washing machine/ gold scrubber washer with different processing capacity, pls check below picture:
Jiangxi Walker Machinery Company is Sub-company of Jiangxi Shicheng Mine Machinery factory (JXSC), with more than 29 years history , we are one of the leading professional manufactrurer of mining equipments in China. We have got CE/SGS/ISO certificate for our main product to guarantee equipments quality.
Our advantages are providing professional minerals process solution, complete set equipments and after-sale engineer installation service for Alluvial Gold washing plant/alluvial tin ore/tungsten ore/iron sand ore/ hematite ore/chrome ore/tantalum-niobium ore/coltan ore, as well as many rock ores.
Our Main product includes: trommel screen, trommel scrubber, shaking table, spiral chute separator, jig machine, centrifugal concentrator, sluice box, vibration screen, melting furnace, magnetic separator, flotation machine, jaw crusher, ball mill, laboratory mining equipments, as well as many accessories machine: belt conveyor, sand pump, slurry pump, mixing tank, ect.
main market is in Africa, South America, Southeast Asia, Asia, ect. Our cooperated customers cover Ghana, Sudan, Uganda, Nigeria, Cameroon, Madagascan, Malaysia, Indonesia, Philippines, Russia, Mongolia, Mexico, Brazil, Chile, Canada, Australia, Iran, ect.
We sincerely provide below services:
-Mining project processing consulting.
-Design and draw flowchart.
-Do testing for gold ore, tin ore , iron ore, tungsten processing in laboratory.
- Providing whole processing plant equipments.
-Dispatching engineer overseas guidance for equipments installation, testing equipments, training worker.
Welcome to visit us, we are located in Ganzhou city, Jiangxi Province, Very near from Guangzhou, Shenzhen,Shanghai, only takes about ONE HOUR by air, also can by train very conveniently! We will pick you up at air port or train station
