XCSQ50 70 Laboratory Magnetic Ore Separator
Description of Laboratory Magnetic Ore Separator
XCSQ Wet High Intensity Magnetic Separator is suitable for beneficiation of fine-disseminated hematite, martite, limonite and siderite in mineral processing laboratories, it can also be used for processing some of rare metals. GTEK laboratory WHIMS has achieved good test results beneficiation index in processing of low grade oxidized iron ore. For manganese, bench placer, wolframite, tin, glass sand and phosphate, it is also very efficient.
Advantage of Laboratory Magnetic Ore Separator
1. Large magnetic action area and large processing capacity;
2. High magnetic intensity and high gradient.
Specification of Laboratory Magnetic Ore Separator
| Model | XCSQ50×70 |
|---|---|
| Separating Chamber Size (mm) | 50×70×220 |
| Magnetic Intensity Regulation (GS) | 0-2300 (1830 kA/M) |
| Coil Cooling Type | Forced Air Cooling |
| Maximum Feeding Size (mm) | 1 |
| Capacity (kg/hr) | 4-5 |
| Power Consumption (kW) | ≤4 |
| Dimensions (mm) | 843×552×1420 |
| Weight (kg) | 84 |

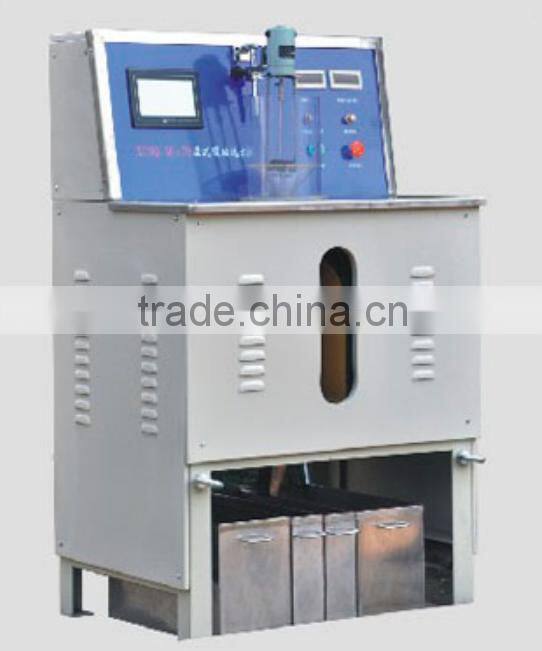

Detailed picuture of Laboratory Magnetic Ore Separator
Other hot-selliing lab mining machine from us
Any other question,Please feel free to contact me
