JXSC small lab magnetic separator for sale
2), Manufacturing according to the ISO9001:2008 quality control system guidelines.
3), Our products are widely recognized and trusted by users, sell well all over the world especially to
Ghana, Sudan, South Africa, Nigeria, Philippines, Malaysia, Indonesia, Austrlia, Brazil, Chile, Peru and many other area.
4), Jiangxi Walker owned a strong R&D term so your OEM&ODM orders are very much welcomed!
Our laboratory series mining equipment are mainly include:
Lab crusher,
Lab ball mill,
Lab grinder miller,
Lab sampling pulveriser,
Lab flotation cell,
Lab shaking table,
Lab spiral chute,
Lab magnetic separator,
Lab screener and classifier,
Lab crusher divider,
Lab disk vacuum filter
Description of drum magnetic separator
XCRS Laboratory Wet Drum Magnetic Separator is designed for the laboratory investigation of beneficiation of strongly magnetic minerals such as magnetite, maghemite, ilmenite and pyrrhotite. This low intensity magnetic separator is suitable for processing of fine strongly magnetic minerals, especially for removal of magnetic substance from powdered materials and purification of magnetic materials. It has wide application in the field of mining, metallurgy, glass industry, ceramics industry, as well as in the area of ash and slag processing.
Advantage of drum magnetic separator
1. Electromagnet system and concurrent tank type;
2. Small in volume and light in weight;
3. Easy operation and convenient maintenance;
4. Uniform feeding of ores due to elevated agitating tank;
5. Wide range of magnetic intensity regulation.
Specification of drum magnetic separator
| Model | XCRS400×300 | XCRS400×240 |
|---|---|---|
| Drum Size (mm) | Φ400×300 | Φ400×240 |
| Drum Speed (r/min) | 25 | 25 |
| Magnetic Intensity (GS) | 1250 (100 kA/M) | 1250 (100 kA/M) |
| Feeding Size (mm) | <2 | <2.5 |
| Capacity (kg/hr) | 20-60 | 20-50 |
| Motor Power (kW) | 0.25 | 0.25 |
| Overall Dimensions (mm) | 1515×1040×1500 | 1030×614×1196 |
| Weight (kg) | 200 | 300 |

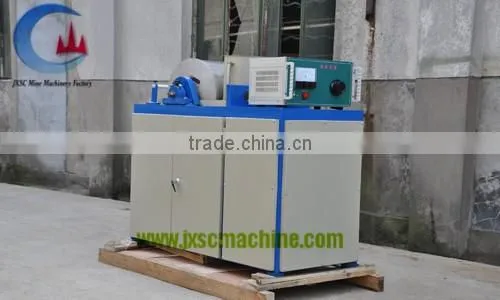

Detailed picuture of drum magnetic separator
Workshop of drum magnetic separator
Packing of Lab drum magnetic separator
Other hot-selliing lab mining machine from us
Any other question,Please feel free to contact me
