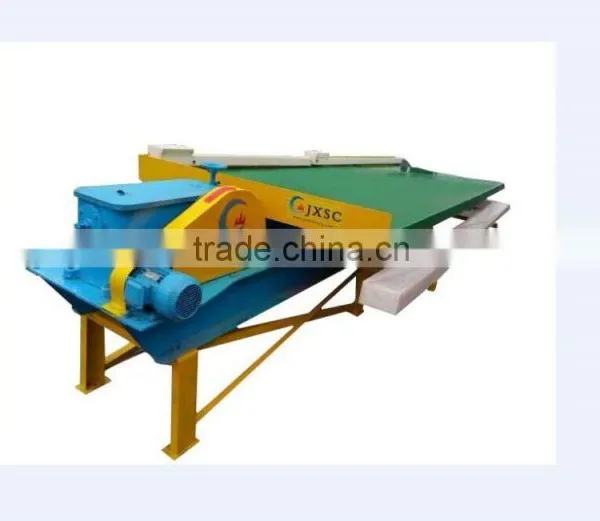

high recovery gold mining shaking table
Brief Introduction
As for our 2012 latest shaking table, it is widely used for the separation of metal ore. Shaking table can be used to deal with many kinds of metal ores, such as rough selection, elaborate selection, and scavenging. It also can select and sort coarse sand (2-0.5mm), fine sand (0.5-0.074mm), slime (-0.074) and other different particle sizes. What is more, shaking table can be used for sorting iron, manganese ore and coal. When dealing with tungsten, tin and other minerals, its effective recovery size is 2-0.02 mm.
Application
shaking table is widely used in the separation of Tin, tungsten, gold, silver, lead, zinc, tantalum, niobium, iron, manganese, ferrotitanium and coal.
Working Principle
shaking table is manly composed of eight components, which are table head, electric motor, slope control, deck, feed box, water tank, rifle spokes and lubrication system. The vertical and reciprocating motion of the deck is drove by the crank-connecting actuator. The motor drives the eccentric shafts to rotate and the connecting rod to move up and down. When the connecting rod makes a downward movement, the toggle plate pushes back shaft and reciprocating lever backward. At the same time, through the tension of spring, it drives the deck to move backward, because the deck is connected with the reciprocating lever by linkage seat. When the rod moves upward, through the force from spring tension, the deck makes a forwardmovement.
Features

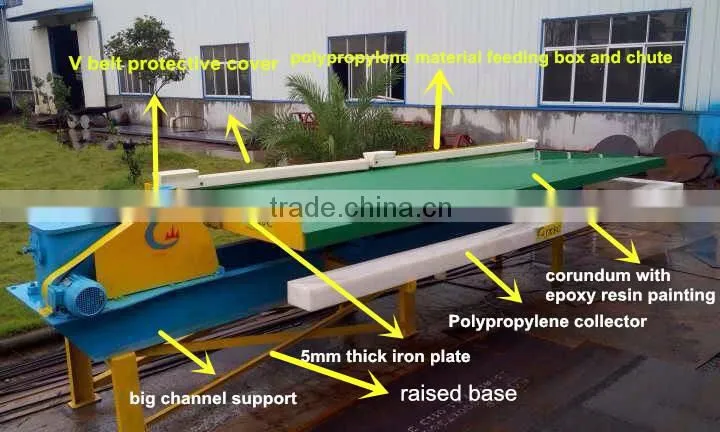

The brand new shaking table below is manufactured for Israel customer .they use it to recovery grinded heavy metals.The new design have exclusive features compared with normal shaker table made in Shicheng :
1: Big channel support for table.
2: Table surface is made of corundum which is very wearable
3. Paint by epoxy resin.table become more corrosion resistance.the epoxy is purchased from very famous brand in China.
3: Completely polypropylene material feeding box and collector
4: All parts :Siemens motor,thicken,glass-fiber-cloth,spring,bearing are Top quality .
5: Deck color as customer request .big channel shaking table with fine sand deck, slime deck and course deck available based on differe

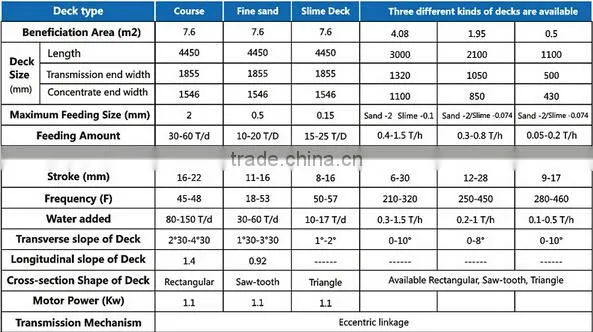

Technical Datas:

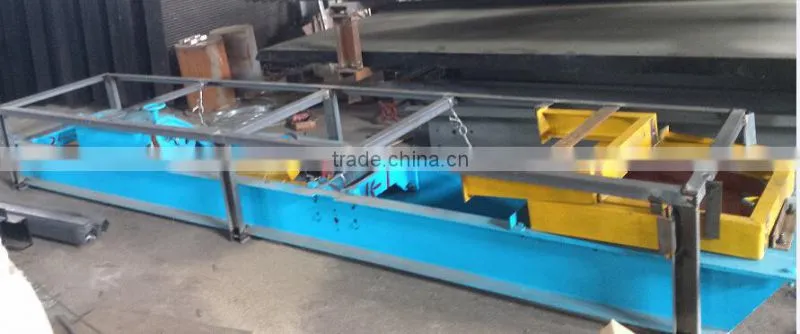

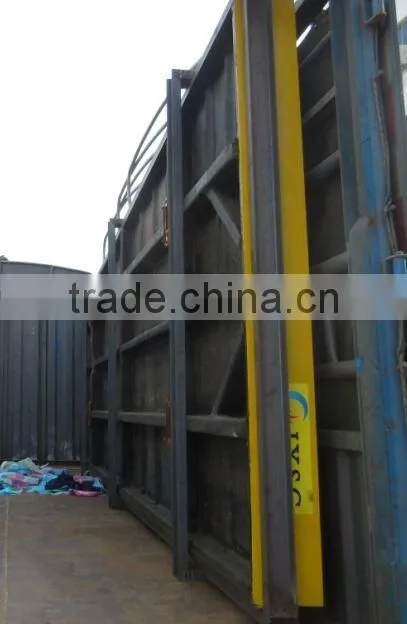

Pictures (including Iron frame packing and product pictures )
Any urgenty inquiry ,Please contact with us
my whatsapp and mobile is : +86 18172711202
