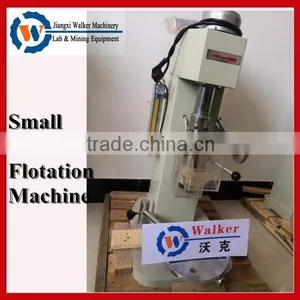

small lab single cell froth flotation machine :

Introduction&application area of small lab single cell froth flotation machine :

XFD series Single cell laboratory flotation machine is mostly used in geology, metallurgy, building materials, chemical and other industrial laboratory to floated small amount of ore samples.

The XFD series single cell lab flotation machine have THREE TYPES: XFDI, XFDII, XFDIII. the features of each type as below:

XFDI:  the ordinary simple type, the impeller rotary speed can not be adjustable, and without LED display screen, without heater device, can not control temperature of the minerals.

XFDII: it is the updated version of XFD I, the impeller rotary speed can be adjustable as your needs, but with LED  display screen, without heater device, can not control temperature of the minerals.

XFDIII:  It is the highest grade type. It uses inverter technology, variable speed impeller, digital display, and also change from the outside air to intake inflated with precise adjusted, clear and stable display.

According to user needs, it can be equipped with a heater, temperature control device to control, display tank mine fluid temperature at any time.

The machine can be equipped with additional water level automatically adjusts automatically administration and other devices, can achieve a higher level of automation.

Gas of pump tank supply to the rotor agitation, and mix with ore fluid, the stator is cut to produce tiny bubbles mineralization

Rotor speed is stepless and can be adjusted by inverter.
Fixed flotation tank fasten by hand wheel drive screw clamp.
Shaving foam body, its trajectory is a circular motion.

Main Structure of small lab single cell froth flotation machine  :

XFDI, XFDII Series cell Flotation machine consists of the following main components:

( 1 ) base ( 2 ) the carrier ( 3 ) the tank ( 4 ) stir part (5) blade part ( 6 ) spindle part ( 7 ) the cover ( 8 ) the motor ( 9 ) flow meter ( 10 ) switch controls ( 11 ) blade switch

XFDIII main structure: frame member, spindle transmission parts, locking parts, wiper parts, flotation tank, outside the inflatable devices and electrical control components.

Specifications for XFD I, XFDII, XFDIII:

XFDI:

 XFDII:

XFDIII:

Detail pictures of small lab single cell froth flotation machine :

We have many other type lab flotation machine, such as lab multi-cell flotation machine, lab small leaching agitation machine, lab  FX series continuous mechanical agitation flotation machine, replaceable groove multi cells lab flotation machine:

Excepting the small lab flotation machines , we also provide many other series lab mining equipments, check below pictures:
