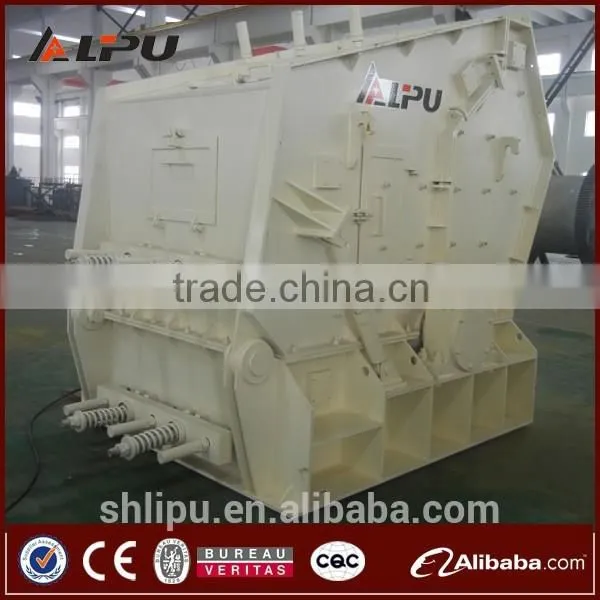

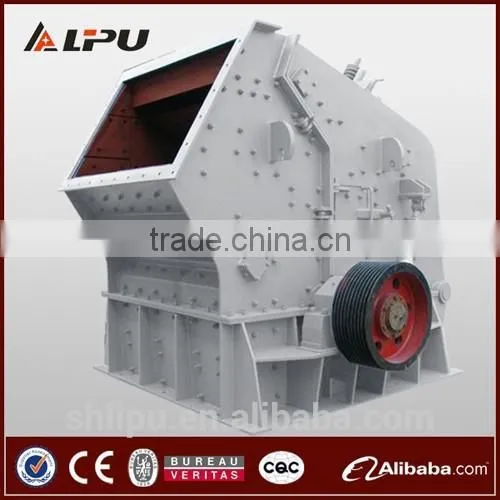

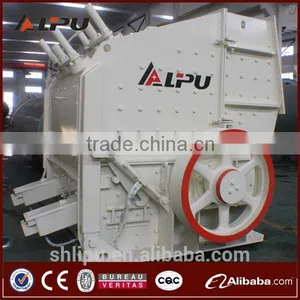

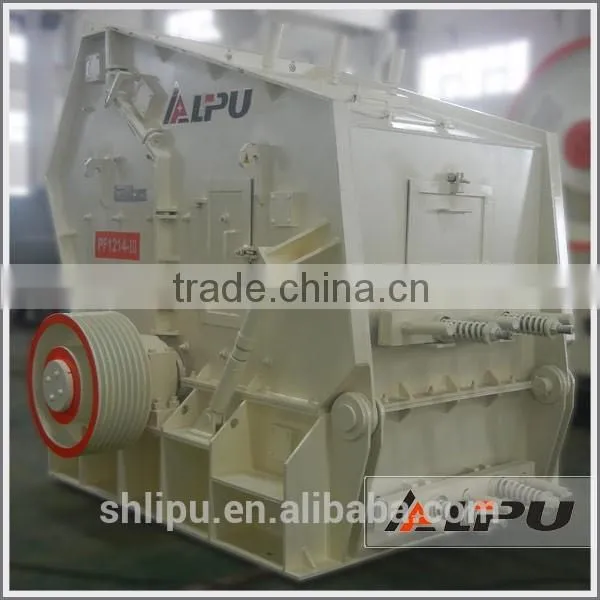

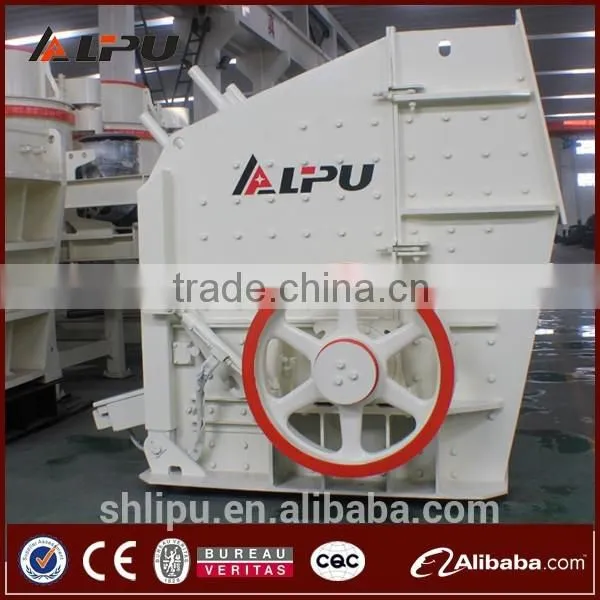

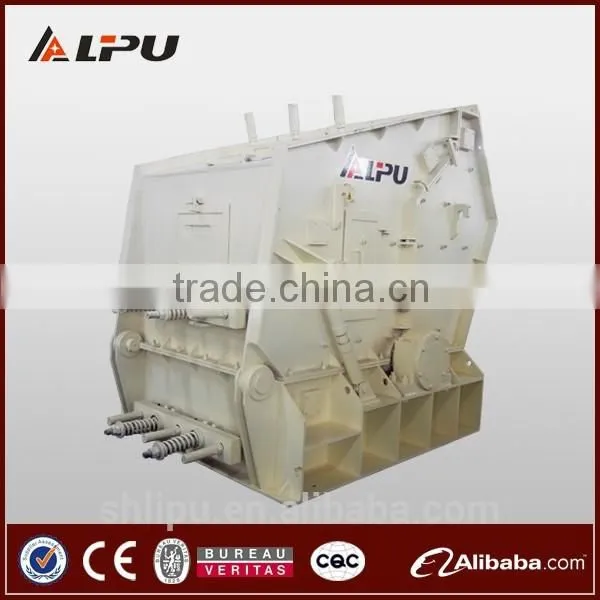

Sound Equipment Impact Crusher Machine for Stone Crushing Line
- 90 Set / Sets per Month
- Shanghai qingdao dalian for Export.
- T/T
-
High Efficiency Stone Crushing Plant Impact Stone Crusher
-
Sand Ore and Coal Vibrating Feeder Machinery Used in Mining Industry
-
Good Quality Heavy Hammer Crusher for Crushing All Kinds of Ores
-
China Wheat and Grain Transport Vibrating Feeder Price in Shanghai
-
Tertiary Reversible Impact Hammer Crusher with High Chrome Blow Bar
-
China ISO BV CE Certified Energy Saving Ball Mill Manufacturers
Product Details
Condition: | New | Type: | Other, Impact Crusher, Impact Crusher Machine | Application: | Granite limestone, etc, Granite, lime stone, concrete aggregate |
Motor Type: | AC Motor | Power(W): | 90000-250000 | Capacity(t/h): | 15-310t/h |
Place of Origin: | Shanghai, China | Brand Name: | LIPU | Model Number: | PF series |
Dimension(L*W*H): | According to model | Weight: | 15-38t | Certification: | CE,ISO9001:2000,BV |
Warranty: | One Year, One Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Export Standard container or as customers requirements.(Impact Crusher Machine)
Product Description
Frequently Asked Questions
Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year.
Q: How long is the warranty of your equipment? Do you supply spare parts?
A: Our warranty period is one year generally. We can supply spare parts.
Q: Do you provide after-sale service?
A: Yes. We have a professional after-sale service team to promptly and thoroughly solve your problems.
Q: Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.
Q: Do you provide beneficiation flow chart?
A: Yes. Our experienced engineers are specialized in designing process flow for various ores beneficiation, including iron ore, tin ore, copper ore, gold ore, lead zinc ore, manganese ore, etc.
Q: Can you test our samples?
A: Yes. You can send your samples to us for test and analysis.
Q: Have you made the whole ore dressing lines?
A: Yes. We have made several large ore dressing lines at home and abroad.
Sound Equipment Impact Crusher Machine for Stone Crushing Line
Brief Introduction of Impact Crusher Machine:
PFW series impact crusher is applied to crushing medium and high hardness brittle material such as various ore, slag and concrete .Because of the big reductionratio, high contentof cubic products and big specific surface area, the equipment is widely used in metallurgy, mining, chemical, cement, construction, refractory materials and ceramic industries for fine grinding.
Features of Impact Crusher Machine:
1.The optimized-design crushing cavity and heavy rotor structure make equipment production increases by more than 20% and the operation is more stably.
2.Unique wedge block assembly locks plate hammer tightly. The contact surface of plate hammer and rotor are reprocessed so that the board hammer lock is more safe and reliable.
3.The plate hammer can be invert used with 25% higher utilization rate.
4.Monolithic bearing, larger size bearing are adopted to make the machine have the greater carrying capacity and longer service life.
5.Hydraulic open top device and hydraulic adjusting discharge gate device make the replacement for wearing parts faster and easier.
6.The selection of high quality alloy wear-resistant parts ensure the long-term stable operation of the equipment.
Working Principle of Impact Crusher Machine:
When the machine works, the rotor rotates with high speed when the crusher is driven by motor. Materials enter crushing chamber and impact with hammers on the rotor, and are thrown to impact plate for being crushed, and then are rebounded back to hammers for being crushed again. The materials enter the first chamber, the second chamber, and the third chamber for being crushed repeatedly until they are crushed into suitable size. The final product is discharged from the outlet. Product size and shape can be adjusted by adjusting space between impact plate and rotor.
Technical Parameters of Impact Crusher Machine:
*Technical parameters-PFW three-cavity impact crusher
Model | Max input size (mm) | Power(W) | Overall dimension L*W*H(mm) | Weight(t) | |
Capacity(t) | |||||
PFW1007-Ⅲ | 200 | 15-60 | 45-55 | 2130×1530×1700 | 9 |
PFW1010-Ⅲ | 200 | 50-90 | 55-75 | 2130×1830×1700 | 12 |
PFW1210-Ⅲ | 250 | 70-140 | 90-110 | 2550×1940×2110 | 15 |
PFW1214-Ⅲ | 250 | 90-190 | 132-160 | 2550×2340×2110 | 19 |
PFW1315-Ⅲ | 300 | 120-280 | 160-200 | 2720×2460×2410 | 25 |
PFW1320-Ⅲ | 300 | 160-350 | 200-250 | 2720×3060×2410 | 31 |
*Technical parameters-PFW two-cavity impact crusher
Model | Max input size (mm) | Power(W) | Overall dimension L*W*H(mm) | Weight(t) | |
Capacity(t) | |||||
PFW1007-Ⅱ | 300 | 40-90 | 45-55 | 2130×1530×1700 | 11 |
PFW1010-Ⅱ | 350 | 70-120 | 55-75 | 2130×1830×1700 | 14 |
PFW1210-Ⅱ | 400 | 100-160 | 90-110 | 2550×1940×2110 | 17 |
PFW1214-Ⅱ | 450 | 130-200 | 132-160 | 2550×2340×2110 | 22 |
PFW1315-Ⅱ | 500 | 180-320 | 160-200 | 2720×2460×2410 | 29 |
PFW1320-Ⅱ | 550 | 230-450 | 200-250 | 2720×3060×2410 | 38 |
Producing Process of Impact Crusher Machine:
Delivery Site of Impact Crusher Machine:
Work Site of Impact Crusher Machine:
Company Profile
![](http://res.goldsupplier.com/3/1_753_21082_320_185.jpg)
Shanghai Lipu Heavy Industry Co., Ltd. is a professional mining machine manufacturer in China. We are located in the international economic and financial center - Pudong in Shanghai. Lipu Heavy Industry is engaged in mining machine research, design and technical advisory services. We can provide service and technical solutions for the excavation of rock, minerals and cement in the mining and construction industries. We mainly manufacture 100-5000tpd capacity stone crushing plants, 800-3000tpd cement plants and 100-5000tpd beneficiation plants.
We focus on fine workmanship and technical innovation. We have independent development, processing and manufacturing capabilities and also have an independent R&D center and a reliable production base. Our R&D team mainly consists of mechanical engineers, chemical engineers and electric engineers. They specially supply the basic research, new product development and technical support in the field of mining machinery. Equipped with modern cutting equipment, advanced computer aided design systems and perfect three-dimensional simulation test systems, our company can ensure our products' performance.
While expanding domestic market, we have exported our rock crushers, stone crushing equipment and beneficiation equipment to Chile, Venezuela, Peru, Russia, Ukraine, the USA, Kazakhstan, South Korea, Yemen, Australia, Indonesia, Malaysia, Vietnam, Africa, and so on, totally more than 50 countries and regions.
Our company has a group of experienced workers and on-site engineers, which ensure the advantage of production. We always strictly control product quality to make sure every set of machine is of high performance and high reliability. Every item must pass our strict quality checks prior to shipment. Our after-sales service group is ready to help customers solve technical problems. We also let engineers train your employees if needed.
