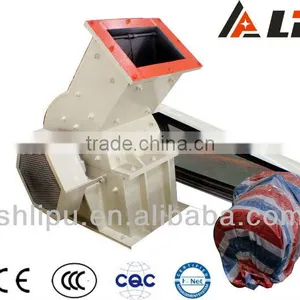

Help CenterGood Quality Heavy Hammer Crusher for Crushing All Kinds of Ores
Related Products
-
China Wheat and Grain Transport Vibrating Feeder Price in ShanghaiUS$ 1,500 - 99,999MOQ: 1 Set -
Tertiary Reversible Impact Hammer Crusher With High Chrome Blow BarUS$ 6,500 - 260,000MOQ: 1 Set
-
Granite Hydraulic Pressure Cone Crusher With Competitive Price in ChinaUS$ 15,000 - 999,999MOQ: 1 Set
-
Best Quality Mechanical Vibrating Feeder for SaleUS$ 1,500 - 99,999MOQ: 1 Set
-
LIPU Brand ISO9001:2000,CE Certificate Reliable Operation Impact CrusherUS$ 1,000 - 99,999MOQ: 1 Set
Specifications
Crusher Hammer:1.Application:Coal,cement,gypsum,alumen etc
2.Max.feed size:100-350mm
3.Discharged Size:0-60mm
4.new design.
Brief Introduction of Heavy Hammer Crusher :
Hammer Crusher is mainly used for crushing medium-hard or brittle materials with hardness not more than 300Mpa and 15% moisture, such as coal, cement, gypsum, alumen, brick, tile, limestone, etc. It has the features of simple structure, big crushing ratio, high production efficiency, uniform particle size, etc. This equipment can be adjusted to reach various discharged granularity as the customers' requests.
Working Principle of Heavy Hammer Crusher :
The main working part of Hammer Crusher is the rotor with hammers. The rotor consists of main shaft, disk, hinge pin and hammers. A sieve plate is below the rotor. The motor drives the rotor to rotate at a high speed. When the materials get into the crushing cavity, they are crushed by the rotating hammers, the crushed products which meet the required size can be discharged from the sieve plate and become the final products, the products with larger size are brought back to the crushed area for being re-crushed until they reach the required size.
Structure of Heavy Hammer Crusher :
Product parameter of Heavy Hammer Crusher :
| Model | Rotor speed (r/min) | Input opening size(mm) | Max. feed size (mm) | Discharged Size (mm) | Capacity (t/h) | Power(kw) | weight (t) | Overall Dimension (L×W×H) (mm) |
| Φ400×400 | 1500 | 145×450 | 100 | 0-30 | 5-8 | 7.5 | 0.9 | 844×942×878 |
| Φ600×400 | 1000 | 295×450 | 100 | 0-35 | 10-12 | 18.5 | 1.03 | 1054×972×111 |
| Φ600×600 | 1000 | 295×570 | 100 | 0-35 | 12-18 | 45 | 2.14 | 1315×840×150 |
| Φ800×600 | 1000 | 350×570 | 120 | 0-45 | 20-25 | 55 | 2.45 | 1515×2586×10 |
| Φ800×800 | 1000 | 350×850 | 120 | 0-45 | 35-45 | 55 | 3.05 | 1515×2831×10 |
| Φ1000×800 | 1000 | 580×850 | 200 | 0-45 | 25-40 | 110 | 6.5 | 3206×2210×15 |
| Φ1000×100 | 1000 | 580×1060 | 200 | 0-45 | 40-80 | 132 | 7.6 | 3514×2230×15 |
| Φ1250×800 | 750 | 650×850 | 200 | 0-45 | 20-50 | 132 | 11.7 | 2630×1780×20 |
| Φ1250×125 | 750 | 650×1330 | 200 | 0-45 | 90-110 | 185 | 13.2 | 2630×2180×20 |
| Φ1400×140 | 750 | 1050×154 | 250 | 0-45 | 120-170 | 280 | 17.2 | 2790×2800×23 |
| Φ1600×160 | 600 | 1500×178 | 350 | 0-60 | 220-280 | 450 | 22.8 | 3350×3120×26 |
Any change of technical parameters, there is no further notice.
