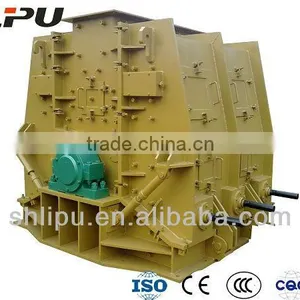

Help CenterIndia Hammer Mill Crusher for Stone Crushing Line
Related Products
-
China Impact Crusher Manufacturer for Crushing Nonmetallic MineralsUS$ 6,500 - 260,000MOQ: 1 Set -
High Pressure Briquette Press for Scrap MetalUS$ 3,500 - 35,000MOQ: 1 Set
-
Max Feeding Size 300-600mm Rock Impact Crusher for Granite LimestoneUS$ 1,000 - 99,999MOQ: 1 Set
-
Sound Equipment Belt Sander Machine for Building MaterialsUS$ 1,599 - 5,999MOQ: 1 Set
-
Sound Equipment Impact Crusher Machine for Stone Crushing LineUS$ 1,000 - 99,999MOQ: 1 Set
Specifications
hammer mill crusher;:PCFK Impact Hammer Crusher;
2.feed size:0-80mm;
3.discharge size:0-8mm;
4.high crushing rate.
Beief Introduction of hammer mill crusher :
hammer mill crusher has advantages of both Hammer Crusher and Impact Crusher. It can break brittle materials of medium hardness, such as coking coal, anthracite, coal used for fluidized bed boiler of heat power plant, coal gangue, gypsum, alum, etc.
Working Principle of hammer mill crusher :
hammer mill crusher Materials enter crushing chamber from feeding hopper, and are impacted to wear-resisting toothed plates on inlet by high speed hammers, this is the first crushing process. Crushed materials with almost the same size enter the main crushing chamber for second crushing. Materials from main crushing chamber are impacted between toothed plates and hammers for many times, and discharged from the outlet. Final product size can be controlled by adjusting space between rotor and impact plates.
Technical Parameters of hammer mill crusher :
Model |
Rotor Diameter(mm) |
Rotor Length(mm) |
Feed Size(mm) |
Discharge Size(mm) |
Capacity(t/h) |
Rotary Speed(r/min) |
Power(kw) |
Weight(t) |
|
|
|
|
|
100% |
93% |
|
|
|
|
PCFK-1212 |
Φ1200 |
1200 |
≤80 |
0-8 |
0-3 |
100-180 |
740 |
220-280 |
19 |
PCFK-1214 |
Φ1200 |
1400 |
≤80 |
0-8 |
0-3 |
120-220 |
740 |
220-280 |
21 |
PCFK-1216 |
Φ1200 |
1600 |
≤80 |
0-8 |
0-3 |
150-250 |
740 |
315-355 |
24 |
PCFK-1414 |
Φ1400 |
1400 |
≤80 |
0-8 |
0-3 |
220-300 |
740 |
355-450 |
25 |
PCFK-1416 |
Φ1400 |
1600 |
≤80 |
0-8 |
0-3 |
250-330 |
740 |
355-560 |
30 |
PCFK-1616 |
Φ1600 |
1600 |
≤80 |
0-8 |
0-3 |
280-350 |
740 |
450-560 |
32 |
PCFK-1618 |
Φ1600 |
1800 |
≤80 |
0-8 |
0-3 |
300-400 |
740 |
560-710 |
37 |
PCFK-1818 |
Φ1800 |
1800 |
≤80 |
0-8 |
0-3 |
400-450 |
740 |
710-800 |
45 |
PCFK-1820 |
Φ1800 |
2000 |
≤80 |
0-8 |
0-3 |
450-500 |
740 |
800-900 |
50 |
PCFK-1825 |
Φ1800 |
2500 |
≤80 |
0-8 |
0-3 |
500-550 |
740 |
900-1000 |
60 |
