High Efficient Symons Cone Crusher for Mining Quarry and Metallergy

High Efficient Symons Cone Crusher for Mining Quarry and Metallergy photo-1
US$ 1,999 - 99,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Cone Crusher
Application:
pebble, iron ore, limestone, copper ore,etc
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai port etc.
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Cone Crusher
Application pebble, iron ore, limestone, copper ore,etc
Motor Type AC Motor
Power(W) 75-220kw
Capacity(t/h) 45-91t/h
Place of Origin Shanghai, China
Brand Name LIPU
Model Number standard fine chamber type
Dimension(L*W*H) According to capacity
Weight 9.98-43.87t
Certification CE,ISO9001:2000
Warranty 1year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Symons Cone Crusher:
1,CE,ISO9001:2000 approved;
2,fast delivery;
3,high quality;
4,new materials.

High efficient symons cone crusher for mining quarry and metallergy



Brief introduction of Symons Cone Crusher :

Cone Crusher is a kind of secure crusher,  currenly the most widely used in the world, with the characteristics of high quality, fine products, even size, long service life, and high efficiency. the Symons Cone Crusher is the world latest cone crusher developed by our company has been experienced the optimized improvement so that Symons Cone Crusher ffeatures perfect reasonable structure and more advanced technology and have the excellent performance in the manufacturing, installation, and maintenance. Symons Cone Crusher has been widely applied in  the field of mining industry, metallurgical industry, chemical industry, silicate industry. and now Symons Cone Crusher has been used to proceed the mid hard crushiing of some materials like pebbles, iron ore, limestone, copper ore, quartz, granite, sandstone and so on.



High efficient symons cone crusher for mining quarry and metallergy

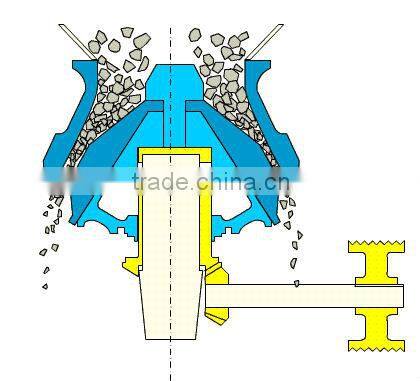

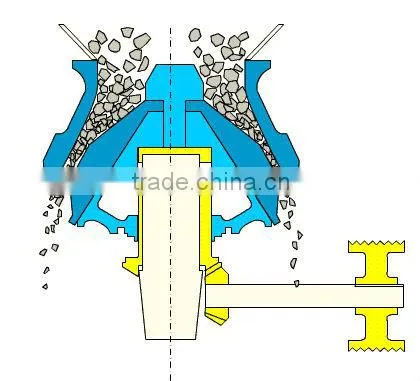

Symons Cone Crusher working principle:

1-driven by the electri-motor, the eccentric shaft bush will rotate with the triangle belt, small and big bevel gear, big bear, transmission shaft.

2-driven by the eccentric shaft bush, the cone crusher axis will move in circle, which makes the mantle close or leave the cone from time to time. and then the materials will be crushed by continuously compacting, striking, and bending in the circle crushing cavity between the fixed and moving cone.

3-after several times' repeating, the materials will be crushed to the required size and then they will be discharged by the discharging opening.



High efficient symons cone crusher for mining quarry and metallergy



Symons Cone Crusher Features:

1,big crushing ratio and high efficiency.

2,perfect lubricationg device ensure reliable functions of machine.

3,wearing parts of high quality lowers cost efficiently

4,long life and wide use

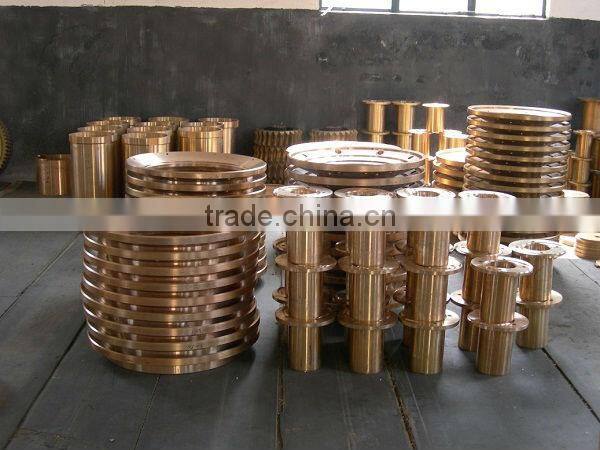

Spare parts of symons cone crusher:



High efficient symons cone crusher for mining quarry and metallergy

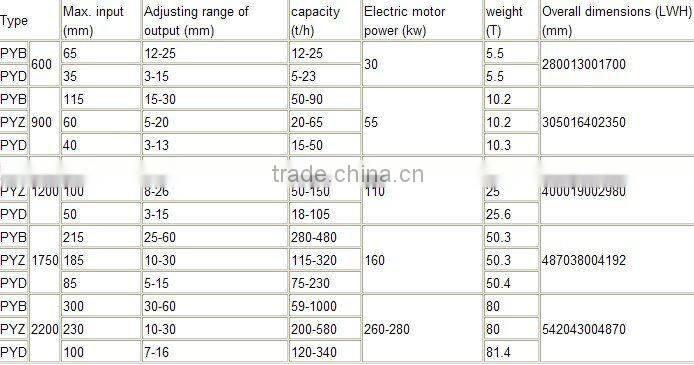

Technical parameter of symons cone crusher:



High efficient symons cone crusher for mining quarry and metallergy









High efficient symons cone crusher for mining quarry and metallergy

















High efficient symons cone crusher for mining quarry and metallergy





High efficient symons cone crusher for mining quarry and metallergy









High efficient symons cone crusher for mining quarry and metallergy











High efficient symons cone crusher for mining quarry and metallergy
