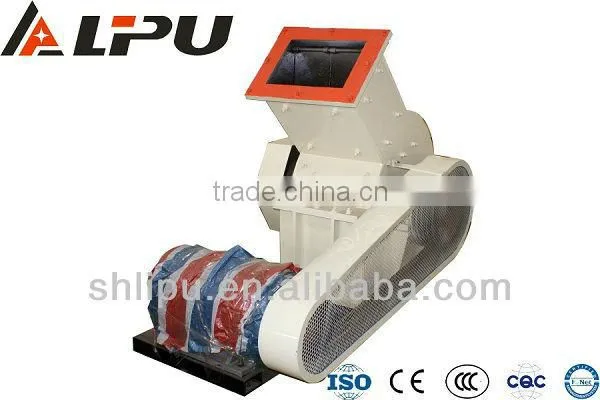

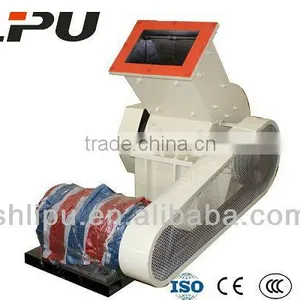

Machinery for small industries tile fine crusher to crush ceramic tiles
- Shanghai qingdao dalian etc
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Sound equipment crusher for glass with capacity of 5-280t/h
-
Vibrating hopper feeder machine for coal stone ore ceramics
-
Hazemag Stone Impact Crusher for Stone Crushing Line
-
Mining equipment gyratory hydraulic cone crusher for fine crushing
-
Concrete high efficiency hydraulic cone crusher manufacturer in China
-
Machine manufacturer small hammer crusher for stone crushing line
Product Details
Condition | New | Type | Hammer Crusher | |
Application | Mineral Crushing, Coal,cement,gypsum,alumen,brick,tile,limestone | Motor Type | AC Motor | |
Power(W) | 7.5-450kw | Capacity(t/h) | 5-280t/h | |
Place of Origin | Shanghai, China | Brand Name | LIPU | |
Model Number | various | Dimension(L*W*H) | According to capacity | |
Weight | 0.9-22.8t | Certification | CE,ISO9001:2000 | |
Warranty | 1 year, 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Export Standard container or as customer's requirements
Product Description
Specifications
tile crusher:1.Application:Coal,cement,gypsum,alumen etc
2.Max.feed size:100-350mm
3.Discharged Size:0-60mm
4.new design.
Brief Introduction of tile fine crusher :
Hammer Crusher is mainly used for crushing medium-hard or brittle materials with hardness not more than 300Mpa and 15% moisture, such as coal, cement, gypsum, alumen, brick, tile, limestone, etc. It has the features of simple structure, big crushing ratio, high production efficiency, uniform particle size, etc. This equipment can be adjusted to reach various discharged granularity as the customers' requests.
Working Principle of tile fine crusher :
The main working part of Hammer Crusher is the rotor with hammers. The rotor consists of main shaft, disk, hinge pin and hammers. A sieve plate is below the rotor. The motor drives the rotor to rotate at a high speed. When the materials get into the crushing cavity, they are crushed by the rotating hammers, the crushed products which meet the required size can be discharged from the sieve plate and become the final products, the products with larger size are brought back to the crushed area for being re-crushed until they reach the required size.
Structure of tile fine crusher :
Product parameter of tile fine crusher :
Model | Rotor speed (r/min) | Input opening size(mm) | Max. feed size (mm) | Discharged Size (mm) | Capacity (t/h) | Power(kw) | weight (t) | Overall Dimension (L×W×H) (mm) |
Φ400×400 | 1500 | 145×450 | 100 | 0-30 | 5-8 | 7.5 | 0.9 | 844×942×878 |
Φ600×400 | 1000 | 295×450 | 100 | 0-35 | 10-12 | 18.5 | 1.03 | 1054×972×111 |
Φ600×600 | 1000 | 295×570 | 100 | 0-35 | 12-18 | 45 | 2.14 | 1315×840×150 |
Φ800×600 | 1000 | 350×570 | 120 | 0-45 | 20-25 | 55 | 2.45 | 1515×2586×10 |
Φ800×800 | 1000 | 350×850 | 120 | 0-45 | 35-45 | 55 | 3.05 | 1515×2831×10 |
Φ1000×800 | 1000 | 580×850 | 200 | 0-45 | 25-40 | 110 | 6.5 | 3206×2210×15 |
Φ1000×100 | 1000 | 580×1060 | 200 | 0-45 | 40-80 | 132 | 7.6 | 3514×2230×15 |
Φ1250×800 | 750 | 650×850 | 200 | 0-45 | 20-50 | 132 | 11.7 | 2630×1780×20 |
Φ1250×125 | 750 | 650×1330 | 200 | 0-45 | 90-110 | 185 | 13.2 | 2630×2180×20 |
Φ1400×140 | 750 | 1050×154 | 250 | 0-45 | 120-170 | 280 | 17.2 | 2790×2800×23 |
Φ1600×160 | 600 | 1500×178 | 350 | 0-60 | 220-280 | 450 | 22.8 | 3350×3120×26 |
Any change of technical parameters, there is no further notice.
