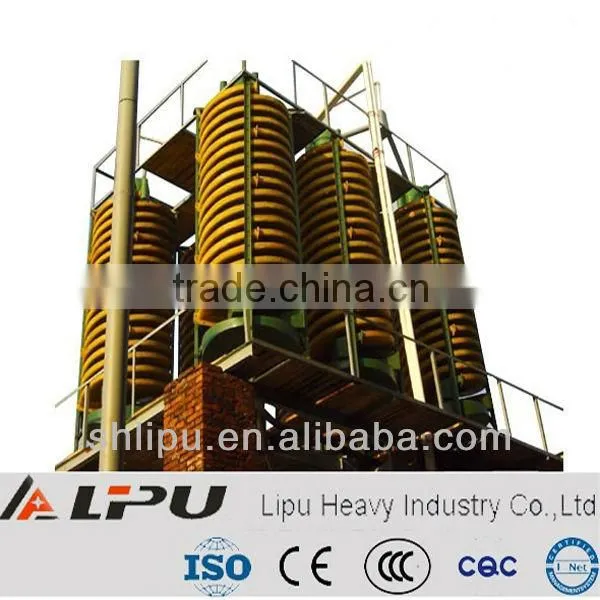

Help CenterChina Spiral Chute Mineral Separation Machine for Sale
Related Products
-
China Dry Powder Agitator for Slurry MixingUS$ 1,000 - 999,999MOQ: 1 Set -
Premium Mine Processing Plant Screen for SaleUS$ 1,000 - 999,999MOQ: 1 Set
-
Iron Ore Magnetic Drum Separators Processing MachineUS$ 1,000 - 99,999MOQ: 1 Set
-
Factory Supply Wet Shaking Table for SaleUS$ 1,000 - 999,999MOQ: 1 Set
-
New Arrival Biomass Briquette Pressing Machine for SaleUS$ 3,500 - 35,000MOQ: 1 Set
Specifications
spiral chute mineral separation machine :1.Model:5LL series;
2.Capacity:0.2-40t/h;
3.Height:1.5-6.6m;
Features of spiral chute mineral separation machine :
1.Simple structurer;
2.Light weight, lower power consumption;
3.Easy operation, reliable operation, easy maintenance;
4.Smaller area, high capacity, and high separating efficiency.
Structure of spiral chute mineral separation machine :
Spiral chute is mde of feeder, feed chute, spiral flute, bracket, intercepting slot, and supporting frame,etc.
Application of spiral chute mineral separation machine :
Spiral is used to process iron, stannum, tungsten, tantalum. niobium, gold ore, colliery, monazite, rutile and zircon of the size btween 0.3 and 0.02mm, metals and nonmetal minerals with enough proportion deviation.

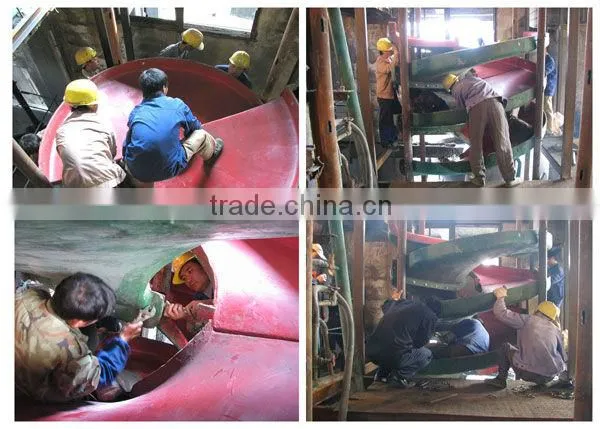

Installation of spiral chute mineral separation machine :
Technical Parameters of spiral chute mineral separation machine :
| Model | Helix No. | Cycle | Feed Size(mm) | Feed Density(%) | Capacity(t/h) | Area(m2) | Height (m) |
| 5LL400 | 1-2 | 4-5 | 0.02-2 | 30-50 | 0.5-0.2 | 0.25 | 1.5 |
| 5LL600 | 1-2 | 4-5 | 0.02-2 | 30-50 | 0.8-1.2 | 0.5 | 2.6 |
| 5LL900 | 2-3 | 4-5 | 0.03-3 | 30-50 | 2-3 | 1.2 | 3.2 |
| 5LL1200 | 2-4 | 4-5 | 0.03-3 | 30-50 | 4-6 | 2 | 5.23 |
| 5LL2000 | 2-4 | 3-5 | 0.04-4 | 20-45 | 15-40 | 5.7 | 6.6 |
Any change of technical parameters, there is no further notice.
