Specifications

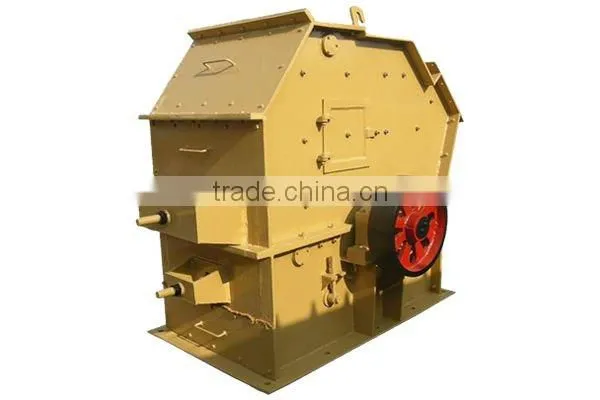

Fine Rock Crusher:1.Model:PXJ series,ISO9001:2000
2.Feed size:150-180mm
3.Out put size:0-20mm
4.Capacity:55-310t/h
Fine Crusher,Fine Rock Crusher
1.Fine Rock Crusher Feather:
1.Model:PXJ series,ISO9001:2000
2.Feed size:150-180mm
3.Out put size:0-20mm
4.Capacity:55-310t/h
Fine Rock Crusher has many advantages, like reliable performance, easy structure, convenient maintenance, big capacity, long life hammer. It is widely used in granite, basalt, limestone, river gravel, cement clinker, quartz, iron ore, bauxite, etc. It is also used in road, railway, water conservancy, airport, construction, cement, refractories, metallurgy, etc.
2.Working principle of Fine Rock Crusher:
When the Fine Crusher is working, materials are crushed primarily in the first crushing chamber by the high speed moving rotor against the hammer, and then enter the secondary chamber for fine crushing, at last, the final materials are discharged.
3.Types of Fine Rock Crusher
We have various of Fine Rock Crusher, such as PXJ0808, PXJ1010, PXJ1212, PXJ1414, PXJ1616, PXJ1818 etc. In order to give you a responsible quotation, you can inform us the following information:
- What's the material you are going to deal with?
- What's the granularity of the material?
- What's the granularity of the final products are you going to achive?
- What's the producing capacity you are going to achieve?
Our engineers will suggest you the most suitable one for you according to your information.
4.Product parameter of Fine Rock Crusher:
| Model | Inlet size (mm) | Feed Size (mm) | Out-put size (mm) | Capacity(t/h) | Power (kw) |
| PXJ0808 | 550×330 | <150 | 0-20 | 55-65 | 55 |
| PXJ1010 | 1000×350 | <150 | 0-20 | 65-75 | 75 |
| PXJ1212 | 1200×450 | <180 | 0-20 | 90-100 | 132 |
| PXJ1414 | 1500×500 | <180 | 0-20 | 100-150 | 260 |
| PXJ1616 | 1600×550 | <180 | 0-20 | 190-250 | 250 |
| PXJ1818 | 1800×800 | <180 | 0-20 | 280-310 | 315 |
Any change of technical parameters, there is no further notice.
5.After-Sale Service:
Erection and Commissioning
Operator Training
Spare Parts Supply
Warranty Terms: More than 12 months
Delivery Time:25~30 days after receiving advanced payment
Products Certificate: CE, ISO9001:2000
6.We(Shanghai LIPU Heavy Industry Co.,Ltd) believe that you can rely on us as we provide you quite satisfactory service and products with best quality at most competitive price in the world. We are very happy if you do not hesitate to send us any of your inquiries and we will always give satisfactory services.
Looking forward to hearing from you at your convenience!
