High Efficiency Magnetic Metal Separator
- 90 Set / Sets per Month
- Shanghai qingdao dalian
- T/T
You May Like
-
High Beneficiation Efficient Iron Ore Magnetic Separator Mineral Separator
-
Easy Installation and Adjustment Permanent Magnetic Separator Mineral Separator
-
High Magnetic Intensity Magnetic Separator for Conveyor Belts Mineral Separator
-
China cement agitator system
-
Industrial cement mixer machinery
-
Mining dewatering screens vibrating for sale
Product Details
Condition | New | Type | Other, Magnetic Separator, Separating machine | |
Place of Origin | Shanghai, China | Brand Name | LIPU | |
Model Number | CTB series | Warranty | 1 year |
Standard container
Product Description
Specifications
Magnetic Metal Separator1.CTB series
2.Shell Diameter;600-1200mm
3.Capacity:10-120t/h
4.Separate magnetite,hematite
2.Shell Diameter;600-1200mm
3.Capacity:10-120t/h
4.Separate magnetite, hematite etc.

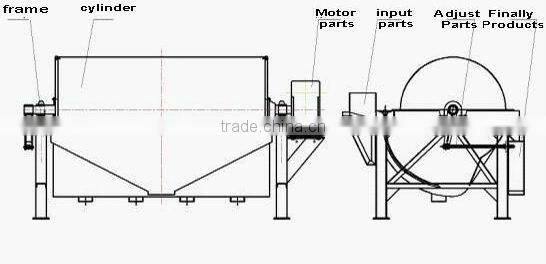

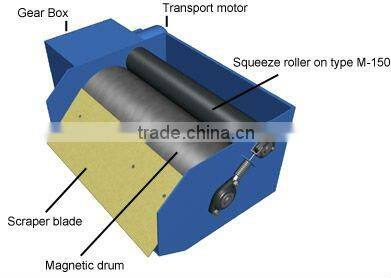

3.Working principle of Magnetic Metal Separator
Slurry enters chute through ore tank firstly, and then separating zone by waterpower. Mineral with strong magnetism is absorbed on the barrel surface, sent to concentrate discharging zone and discharged into concentrate box by water effect. Gangue and ore with weak magnetism are discharged into a pipe in opposite direction of barrel.
4.Features of Magnetic Metal Separator
1. High magnetic intensity.
2. Low energy consumption.
3. Good beneficiating efficiency.
4. Simple structure and easy maintenance.
5.Types of Magnetic Metal Separator
We have various of Magnetic Metal Separator,such as CTB612, CTB618, CTB718, CTB918, CTB1018, CTB1024,
CTB1224,etc. In order to give you a responsible quotation, you can inform us the following information:
1. What’s the material you are going to deal with?
2. What’s the granularity of the material?
3. What’s the granularity of the final products are you going to achive?
4. What’s the producing capacity you are going to achieve?
Our engineers will suggest you the most suitable one for you according to your information.
6.Main Technical Magnetic Metal Separator:
Model | Shell Diameter (mm) | Shell length (mm) | Feed size (mm) | Capacity (t/h) | Power(kw) | Weight (t) |
CTB612 | Φ600 | 1200 | 0-2 | 10-20 | 1.1 | 1.5 |
CTB618 | Φ600 | 1800 | 0-2 | 15-30 | 2.2 | 1.8 |
CTB718 | Φ750 | 1800 | 0-2 | 25-45 | 3.0 | 2.2 |
CTB918 | Φ900 | 1800 | 0-3 | 35-70 | 4.0 | 2.8 |
CTB1018 | Φ1050 | 1800 | 0-3 | 40-75 | 5.5 | 4.3 |
CTB1024 | Φ1050 | 2400 | 0-3 | 52-100 | 5.5 | 5.2 |
CTB1218 | Φ1200 | 1800 | 0-3 | 47-90 | 5.5 | 5.0 |
CTB1224 | Φ1200 | 2400 | 0-3 | 80-120 | 7.5 | 6.4 |
7.After-Sale Service:
Erection and Commissioning
Operator Training
Spare Parts Supply
Warranty Terms: More than 12 months
Delivery Time:25~30 days after receiving advanced payment
Products Certificate: CE, ISO9001:2000
8.We(Shanghai LIPU Heavy Industry Co.,Ltd) believe that you can rely on us as we provide you quite satisfactory service and products with best quality at most competitive price in the world. We are very happy if you do not hesitate to send us any of your inquiries and we will always give satisfactory services.
Looking forward to hearing from you at your convenience!
Company Profile

Shanghai Lipu Heavy Industry Co., Ltd. is a professional mining machine manufacturer in China. We are located in the international economic and financial center - Pudong in Shanghai. Lipu Heavy Industry is engaged in mining machine research, design and technical advisory services. We can provide service and technical solutions for the excavation of rock, minerals and cement in the mining and construction industries. We mainly manufacture 100-5000tpd capacity stone crushing plants, 800-3000tpd cement plants and 100-5000tpd beneficiation plants. We focus on fine workmanship and technical innovation. We have independent development, processing and manufacturing capabilities and also have an independent R&D center and a reliable production base. Our R&D team mainly consists of mechanical engineers, chemical engineers and electric engineers. They specially supply the basic research, new product development and technical support in the field of mining machinery. Equipped with modern cutting equipment, advanced computer aided design systems and perfect three-dimensional simulation test systems, our company can ensure our products' performance. While expanding domestic market, we have exported our rock crushers, stone crushing equipment and beneficiation equipment to Chile, Venezuela, Peru, Russia, Ukraine, the USA, Kazakhstan, South Korea, Yemen, Australia, Indonesia, Malaysia, Vietnam, Africa, and so on, totally more than 50 countries and regions. Our company has a group of experienced workers and on-site engineers, which ensure the advantage of production. We always strictly control product quality to make sure every set of machine is of high performance and high reliability. Every item must pass our strict quality checks prior to shipment. Our after-sales service group is ready to help customers solve technical problems. We also let engineers train your employees if needed.
