Specifications
flotator plant operator manufacturer1.XJK,SF series;
2.Large inhaling capacity;
3.Capacity:0.05-3.5t/h.
Specifications of flotator plant operator manufacturer :
1.XJK,SF flotation machine
2.Large inhaling capacity
3.Capacity:0.05-3.5t/h
4.DiaOf impeller:200-600mm
Application of flotator plant operator manufacturer :
flotator plant operator manufacturer can be used to separate non-ferrous metal, ferrous metal, noble metal, non-metallic mine, chemical material. It can be used in roughing, scavenging, selection or reverse flotation. In the flotation process, after being mixed with drug, some qualified mineral attaches on bubble, floats on the surface of slurry and is scraped out, other mineral still stays in the slurry, so the separating purpose is finished.
flotator plant operator manufacturer Features:
1.Large inhaling capacity and low consumption.
2. Complete flotation circuit with inhaling air and slurry, no auxiliares are needed.
3. Process is easy to be changed.
4. Reasonable circulation of slurry decreases coarse sand sedimentation.
5. Automatic controlling device makes adjustment more convenient.
Types of flotator plant operator manufacturer :
We have various of flotator plant operator manufacturer ,such as XJK-0.13(1A), XJK-0.23(2A), XJK-0.35(3A), XJK-0.62(4A), XJK-1.1(5A),XJK-2.8(6A) etc. In order to give you a responsible quotation, you can inform us the following
information:
1. What’s the material you are going to deal with?
2. What’s the granularity of the material?
3. What’s the granularity of the final products are you going to achive?
4. What’s the producing capacity you are going to achieve?
Our engineers will suggest you the most suitable one for you according to your information.
flotator plant operator manufacturer Parameter:
| Type and specification | Trough volume of the machine | Dia. Of impeller | Production capacity m2/msh | Revolution of the impeller r/min | Scraper revolution r/min |
| XJK-0.13(1A) | 0.13 | 200 | 0.05-0.16 | 600 | 17.5 |
| XJK-0.23(2A) | 0.23 | 250 | 0.12-0.28 | 500 | 17.5 |
| XJK-0.35(3A) | 0.35 | 300 | 0.18-0.4 | 470 | 17.5 |
| XJK-0.62(4A) | 0.62 | 350 | 0.3-0.9 | 400 | 16 |
| XJK-1.1(5A) | 1.1 | 500 | 0.6-1.6 | 330 | 26 |
| XJK-2.8(6A) | 2.8 | 600 | 1.5-3.5 | 280 | 26 |
Model |
Volume(m3) |
Impeller diameter(mm) |
Capacity(m3/min) |
Impeller Speed(r/min) |
Impeller motor |
Scraper motor |
||
Model |
Power(kw) |
Model |
Power(kw) |
|||||
SF0.37 |
0.37 |
300 |
0.2-0.4 |
352 |
Y90L-4 |
1.5 |
Y90S-4 |
1.1 |
SF0.7 |
0.7 |
350 |
0.3-0.9 |
400 |
Y100L2-4 |
3 |
Y90S-4 |
1.1 |
SF1.2 |
1.2 |
450 |
0.6-1.2 |
312 |
Y132M2-6 |
5.5 |
Y90S-4 |
1.1 |
SF2.8 |
2.8 |
550 |
1.5-3.5 |
268 |
Y160L-6 |
11 |
Y90S-4 |
1.1 |
SF4 |
4 |
650 |
0.5-4 |
238 |
Y180L-6 |
15 |
Y90L-4 |
1.5 |

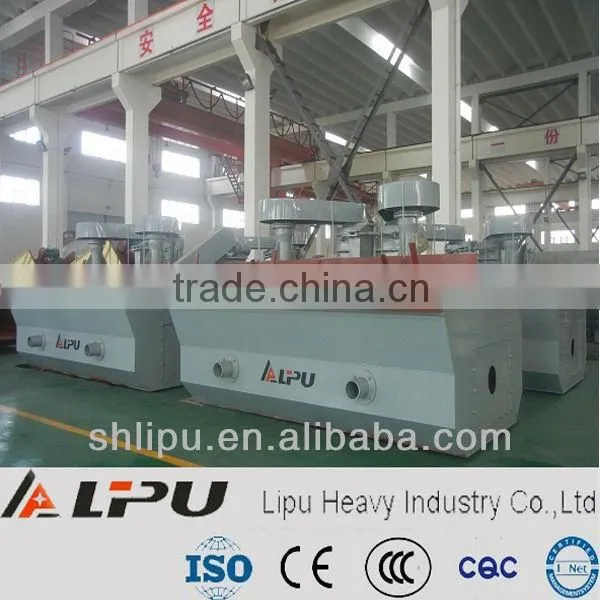

Showroom of flotator plant operator manufacturer :
