24 Core Good Flexibility Fiber Optic Air Blown Super Mini Cable

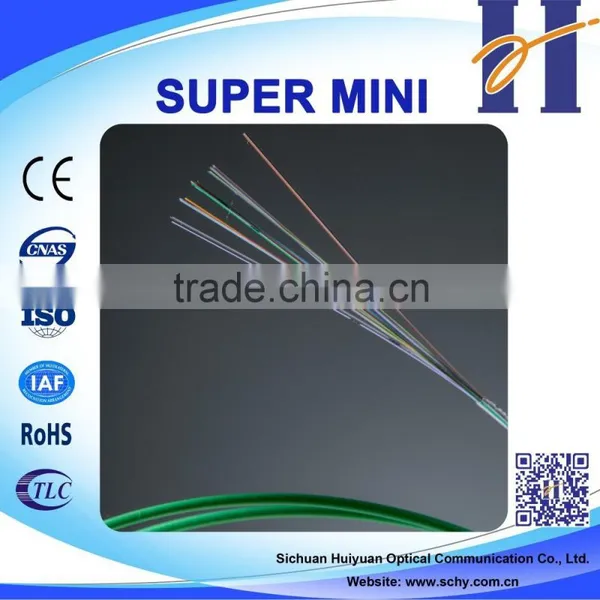

The Super Mini uni-tube blown cable is the product that with small diameter, lightweight, highly flexibility and proper stiffness, and it can be blown into the microduct of 5.0/3.5mm. The fibres are coated with a soft acrylate resin which provides excellent dimensional and thermal stability to cushion the fibres, in addition, the resin can be easily stripped in connecting the fibres. The outer sheath is a thermoplastic that is of low friction. The surface of the sheath is designed with special grooves, compared to the surface of the traditional optical fibre cable, it provides not only the high level of mechanical protection, but also the perfect blowing performance.
Advantage:
Special complex material loose tube, reduce the shrink of tube in cold temperature.
Accurate fibre length balance, stable mechanical and temperature performance.
Particular technique control, prevent sheath form crinkling during installation.
Structure Innovation in sheath, enhancing the blowing performance.
| Cable Type | Central Loose Tube Cable | ||
| Fiber Count | 2~4 | 6~12 | 24 |
| Nominal Overall Diameter | 2.0±0.1mm | 2.3±0.1mm | 2.8±0.1mm |
| Weight | 4.0 kg/km | 5.0 kg/km | 7.5 kg/km |
| Max. Tensile Strength | 40N | 50N | 100N |
| Cable Fiber Attenuation (G.652D) | 0.35dB/km max @1310nm 0.22dB/km max @1550nm | ||
| Max. Crushing force | 600N/100mm | ||
| Estimated blowing length | 12bar Pressure air, 5.0/3.5mm, 7.0/5.5mm micro duct, ≥800m | ||
Based on ISO9001, ISO14001 and OHSAS18001, we establish quality management system, environmental management system and occupational safety and heal management system, to ensure all flow of the process including: designing, R&D, purchasing, manufacturing, inspection and testing, packing, warehousing, delivery, and service in control.
Huiyuan (Shenzhen Stock Exchange: 000586), is one of the leading cable manufacturers in China, providing superior professional fiber optic cables to worldwide customers.
Huiyuan specializes in R&D, manufacture and sales of all kinds of optical fiber cables, including ADSS, OPGW, OPPC, micro air blown cable, fiber optic unit, optical fiber ribbon and so on. Untill now, the company has its full range of optical fiber cable to EU, Canada, Korea, Malaysia, Australia, Thailand, Vietnam, Zambia, Colombia, Nepal, Philippine, Bulgaria, and so on.
The company has achieved certificates of Quality Management System ISO9001, Environment Management System ISO14001, and Health and Safety Management System OHSAS18001.
Huiyuan's target is to be the most highly regarded and successful fiber optic cable company in the world and brings convenience to people.
Packaging Detail: Special wooden drum or iron wooden drum is also available according to cable size and packing length or customer required.
Delivery Detail: 30 days after confirmation of order and payment or customer required
1. We are one of the biggest optical fiber cable manufactures in China and have 20 years’ manufacturing and selling experience.
2.Micro air blown fiber optic cable, OPGW, ADSS and Plastic optic fiber are our competitive products.
3. We accept OEM. The cable size and material are customized.
Your own logo and own design are welcomed.
We will produce according to your requirement and description;
4. Different ways of transportation
A. ROAD, RAIL, SEA, and AIR transport.
B. Air Express: FedEx, DHL, UPS, GLS, and so on.
5. We provide FREE samples.
6. Please send us inquiry for more products info and we will give you feedback in 12 hours.
