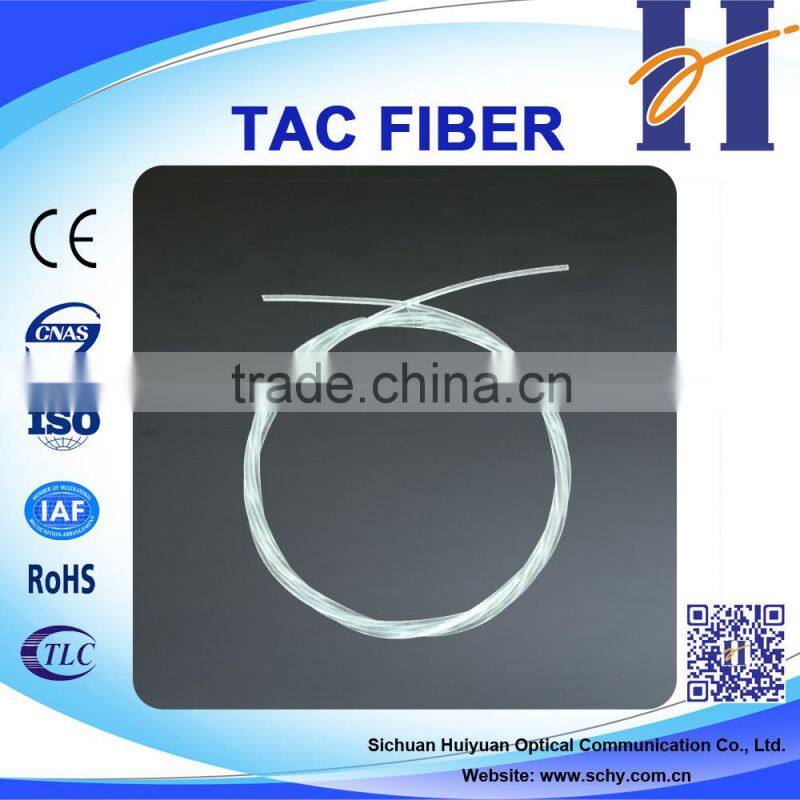

Invisible cable Fiber Optical cable
Invisible cable is transparent hot melt adhesive coated cable.It is G657B3 fiber, nylon / PVC as the main raw material.The outer cover layer of hot melt adhesive,It is step out of layers using the extrusion process,The nominal diameter is generally 1.1mm (outer diameter error +1).
Invisible Fiber Application
Invisible cable Applications are covered wire cable home user does not accept applications or solve the difficult problem of home users, the use of fiber is the minimum bend radius of 5mm G657B3 optical fiber, optical fiber can be fully compatible with the G652D.
Laying without playing in the way of the nails, do stand, drilling, pipelines do, destroy the original interior structure, or because the laying of fiber optic cable will cause discontinuities sagging, loss and other security risks, and because the cable almost transparent
So it will not affect the interior beautiful, construction is simple, just a hand-held heating installation tool can be done laying.
Invisible Fiber cable Operation temperature
-40℃~75℃
Invisible Fiber cable Fiber Optical cable
Features and Benefit
-- Tight weld layers are not isolated, almost transparent.
-- Outer surface is smooth, no visual visible holes, scars and other defects.
-- The minimum bend radius of 5mm, the room is not dead laying.
-- Handheld laying tool that uses no complicated wiring, convenient
Invisible Fiber Cable Standards
YD/T 1258.2-2003 The second part of the single-core indoor cable series cable
GB/T 7424.2-2008 Total cable Part 2 Basic optical cable test methods
GB/T 13936-1992 Vulcanized rubber to metal bonding tensile shear strength measurement method of vulcanized rubber and metal bonding tensile shear strength measurement method
Invisible cable Fiber Optical cable
Technical Parameter
Cable cross-sectional view and Hand-held heating installation tool figure

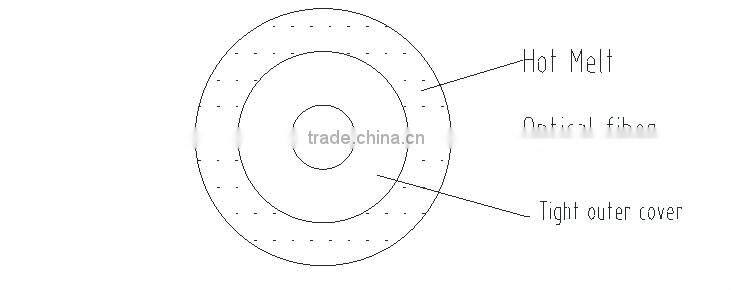

Figure 1 Cable cross-sectional view

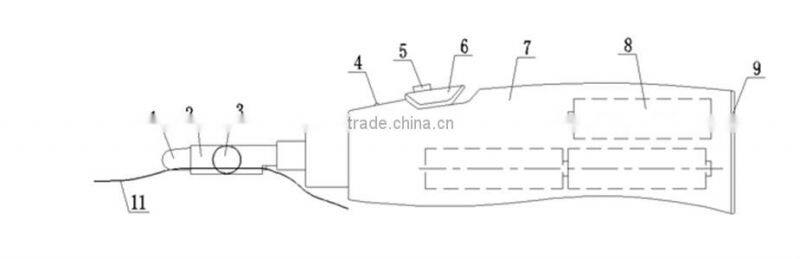

Figure 2 Hand-held heating installation tool
Invisible Fiber cable Optic Fiber Cable
The outer diameter:1.1 mm
The outer diameter of Tight outer cover:0.8 mm,
Hot melt adhesive thickness:0.15 mm
Chromatogram: Colorless and Transparent
Any cross-section of invisible cable should be uniform, without pores or blemishes. Besides ,its outer surface is smooth, no obvious defects such as cracks other.
Installation temperature range:-30℃~50℃ ( -22℉~122℉)
Using temperature range:-40℃~75℃ (-40℉~167℉)
Hand-held heating installation tool
Size:Length 190mm
Weight:100g
Comfortable Working Environment
Packing
Why choose us?
1. We are one of the biggest optical fiber cable manufactures in China and have 20 years’ manufacturing and selling experience.
2.Micro air blown fiber optic cable, OPGW and ADSS are our competitive products.
3. We accept OEM. The cable size and material are customized.
Your own logo and own design are welcomed.
We will produce according to your requirement and description;
4. Different ways of transportation
A. ROAD, RAIL, SEA, and AIR transport.
B. Air Express: FedEx, DHL, UPS, GLS, and so on.
5. We provide FREE samples.
6. Please send us inquiry for more products info and we will give you feedback in 12 hours.
