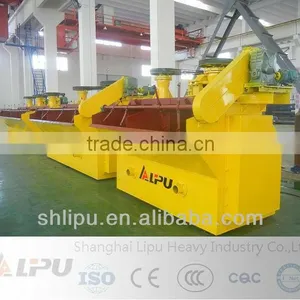

Help CenterLlabortary Mining Equipment Flotation Cell Machine
Related Products
-
Self-Nnloading Drum Magnetic Separator With Wet Magnetic FieldUS$ 1,000 - 99,999MOQ: 1 Set -
High Speed Water Agitators With High ViscosityUS$ 1,000 - 999,999MOQ: 1 Set
-
Mining Gold Spiral Classifier for Chrome OreUS$ 1,000 - 999,999MOQ: 1 Set
-
Big Capacity SF and XJK Series Sand Flotation Machine Factory OfferUS$ 10,000 - 999,999MOQ: 1 Set
-
Energy Saving Gyratory Vibrating Screen for BeneficiationUS$ 1,000 - 999,999MOQ: 1 Set
Specifications
flotation cell machine:1.XJK,SF series;
2.Large inhaling capacity;
3.Capacity:0.05-3.5t/h;
4.DiaOf impeller:200-650mm.
Specifications of flotation cell machine :
1.XJK,SF flotation machine
2.Large inhaling capacity
3.Capacity:0.05-3.5t/h
4.DiaOf impeller:200-600mm
Application of flotation cell machine :
Mining flotation machine can be used to separate non-ferrous metal, ferrous metal, noble metal, non-metallic mine, chemical material. It can be used in roughing, scavenging, selection or reverse flotation. In the flotation process, after being mixed with drug, some qualified mineral attaches on bubble, floats on the surface of slurry and is scraped out, other mineral still stays in the slurry, so the separating purpose is finished.
Flotation cell machine Features:
1.Large inhaling capacity and low consumption.
2. Complete flotation circuit with inhaling air and slurry, no auxiliares are needed.
3. Process is easy to be changed.
4. Reasonable circulation of slurry decreases coarse sand sedimentation.
5. Automatic controlling device makes adjustment more convenient.
Types of flotation cell machine :
We have various of High Efficiency Flotation Machine,such as XJK-0.13(1A), XJK-0.23(2A), XJK-0.35(3A), XJK-0.62(4A), XJK-1.1(5A),XJK-2.8(6A) etc. In order to give you a responsible quotation, you can inform us the following
information:
1. What’s the material you are going to deal with?
2. What’s the granularity of the material?
3. What’s the granularity of the final products are you going to achive?
4. What’s the producing capacity you are going to achieve?
Our engineers will suggest you the most suitable one for you according to your information.
Flotation cell machine Parameter:
| Type and specification | Trough volume of the machine | Dia. Of impeller | Production capacity m2/msh | Revolution of the impeller r/min | Scraper revolution r/min |
| XJK-0.13(1A) | 0.13 | 200 | 0.05-0.16 | 600 | 17.5 |
| XJK-0.23(2A) | 0.23 | 250 | 0.12-0.28 | 500 | 17.5 |
| XJK-0.35(3A) | 0.35 | 300 | 0.18-0.4 | 470 | 17.5 |
| XJK-0.62(4A) | 0.62 | 350 | 0.3-0.9 | 400 | 16 |
| XJK-1.1(5A) | 1.1 | 500 | 0.6-1.6 | 330 | 26 |
| XJK-2.8(6A) | 2.8 | 600 | 1.5-3.5 | 280 | 26 |
Model |
Volume(m3) |
Impeller diameter(mm) |
Capacity(m3/min) |
Impeller Speed(r/min) |
Impeller motor |
Scraper motor |
||
Model |
Power(kw) |
Model |
Power(kw) |
|||||
SF0.37 |
0.37 |
300 |
0.2-0.4 |
352 |
Y90L-4 |
1.5 |
Y90S-4 |
1.1 |
SF0.7 |
0.7 |
350 |
0.3-0.9 |
400 |
Y100L2-4 |
3 |
Y90S-4 |
1.1 |
SF1.2 |
1.2 |
450 |
0.6-1.2 |
312 |
Y132M2-6 |
5.5 |
Y90S-4 |
1.1 |
SF2.8 |
2.8 |
550 |
1.5-3.5 |
268 |
Y160L-6 |
11 |
Y90S-4 |
1.1 |
SF4 |
4 |
650 |
0.5-4 |
238 |
Y180L-6 |
15 |
Y90L-4 |
1.5 |

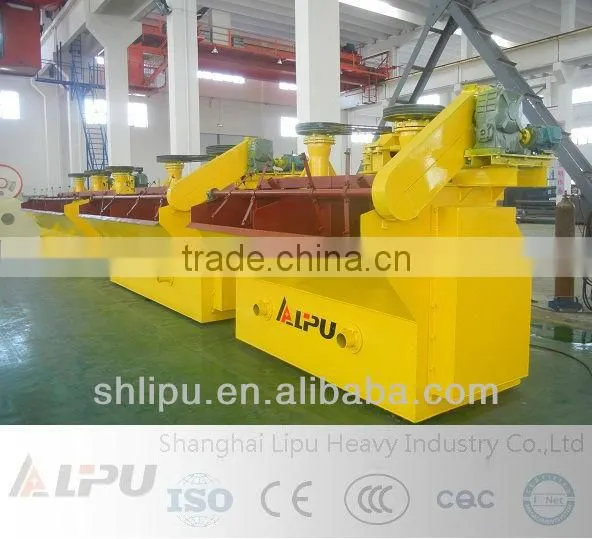

Showroom of flotation cell machine :
