LIPU Wet Type Raw Material Grinding Tube Mill

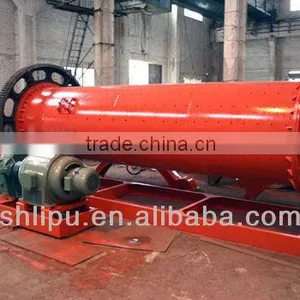

LIPU Wet Type Raw Material Grinding Tube Mill thumbnail-1

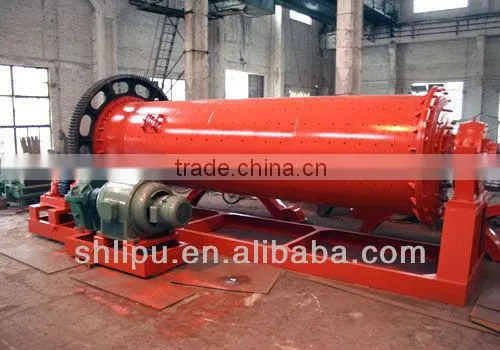

LIPU Wet Type Raw Material Grinding Tube Mill photo-1
US$ 880,000 - 3,670,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Ball Mill, Tube mill
Power(W):
According to model
Contact Supplier Request Quote Chat Now
Shanghai Lipu Heavy Industry Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Ball Mill, Tube mill
Power(W) According to model
Capacity(t/h) 15~70
Place of Origin Shanghai, China
Brand Name LIPU
Model Number tube mill
Dimension(L*W*H) According to model
Weight According to model
Certification CE,ISO9001:2000, CE,ISO9001:2000,CQC
Warranty 1year, 1 year
After-sales Service Provided Engineers available to service machinery overseas

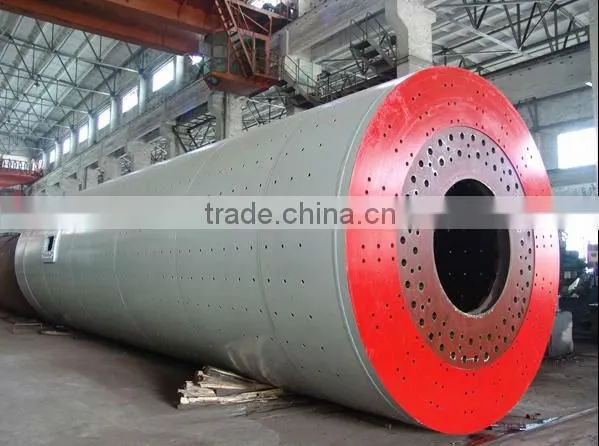

LIPU Wet Type Raw Material Grinding Tube Mill



The   tube mill for cement production line is mainly used for raw materials and finished products of cement grinding, also used in metallurgy, chemical, electric power, industrial and mining enterprises grinding all kinds of ores and other grinding material. It can be used for open flow grinding, also suitable for close-circuit grinding composed with classifier.

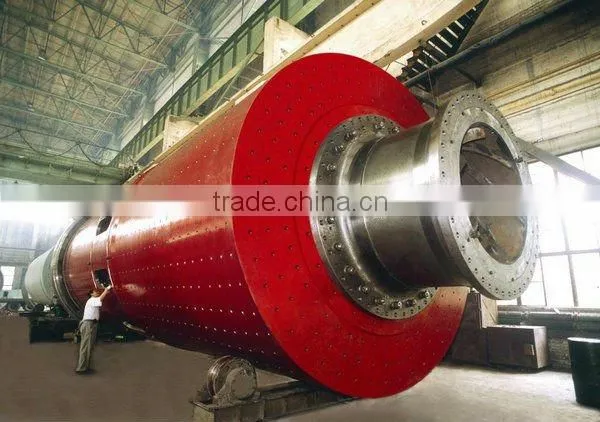

 LIPU Wet Type Raw Material Grinding Tube Mill



We make significant improvement to the traditional ball mill, besides all advantages of open flow mill, compared with the same specification of ball mill, the mill has the large scale production, and fine powder, and the specific surface area increases. We provide a new type of grinding equipment for the production of high yield, high fine,high standard cement.
The tube mill has adopted special integrate bulkhead and discharge grate to adjust material levels of every chamber so as to increase air ventilation and improve conditions inside; Also used the new liners, adjusted the rotating speed of the grinding machine, the optimization gear design and location of the lubrication parameters, it increases the mill operation stability and service life, and the grinding efficiency increases.



LIPU Wet Type Raw Material Grinding Tube Mill

Sepc.
(Dia. x L)		 Rotating
Speed
(r/min)		 Inlet
grain
size (mm)		 Capacity
(t/h)		 Grinder
load
(t)		 Main motor Main reducer Weight
(t)
Type Power
(kw)		 Rotating
speed(r.p.m)		 Type Speed
ratio
φ2.2×11 20.91 ≤25 15~17 50 TR1512-8 570 740 Zd80 5.6 92
φ2.4×8 20.91 ≤25 14~18 39.5~42 TRQ1512-8 570 740 Zd80-9 5 76.4
φ2.4×9 20.91 ≤25 23~25Closed 50 TR1512-8 570 740 Zd80-9 5 91
φ2.4×10 20.91 ≤25 16~22 50 TR1512-8 570 740 Zd80-9 5 111
φ2.4×11 21 ≤25 Open 19~24
Closed 22~28		 6265 YR710-8/1180 710 740 JDX630 5.6 125
φ2.4×12 21 ≤25 Open 18~20
Closed 21~23		 6365 YR800-8/1180 800 740 MBY710 6.3 127
φ2.4×13 21 ≤25 Open 21~22
Closed 24~26		 6668 YR800-8/1180 800 740 MBY710 6.3 131
φ2.6×10 20.6 ≤25 21~24 64 YR800-8/1180 800 740 JDX710 6.3 140
φ2.6×13 20.6 ≤25 28~31 81 YR1000-8/1180 1000 740 JDX800 6.3 158
φ3.0×9 19.13 ≤25 40~45 85 YR1000-8/1180 1000 740 MBY800 7.1 148
φ3×11 18.92 ≤25 44~47 95 YR1250-8/1430 1250 740 JDX900 7.1 177
φ3×12 18.92 ≤25 48~52 103 YR1250-8/1430 1250 740 JDX900 7.1 182
φ3×13 18.92 ≤25 39~45 116max YR1400-8/1430 1400 740 JDX900 7.1 200.7
φ3.2×11 18.3 ≤25 45~48 112max YR1600-8/1430 1400 740 JDX900 7.15 213.6
φ3.2×13 18.7 ≤25 50~55 133max YR1600-8/1430 1600 740 JDX1000 7.15 237
φ3.4×11 18 ≤25 45~55 120max YR1600-8/1430 1600 740 JDX1000   230
φ3.5×13 17 ≤25 60~65 156max YR2000-8/1730 2000 740 TS130-A-F1   257.6
φ3.8×13
(main bearing)		 17 ≤25 65~70 190 YR2500-8/1730 2500 740 JS130-C-F1   316
φ3.8×13
(slide shoe edge-driving)		 17 ≤25 65~70 185 YR2500-8/1730 2500 740 DMG22/2500   313
φ4×13 16.3 ≤25 78~80 191 YRKK900-80 2800 745 JS140-A   348
φ4.2×11
(main bearing)		 15.8 ≤25 100~110 182~190 YR2800-8/17830 2800 740 JS140-A-F1D   350
φ4.2×13
(main bearing)		 15.2 ≤25 110~120 230 YRKK1000-8 3350 740 MFY355-A   375
φ4.2×13
(main bearing)		 15.2 ≤25 120~130 245 YRKK1000-8 3350 740 MFY355-A   390
φ4.2×13
(central driving)		 15.2 ≤25 110~120 230 YRKK1000-8 3350 740 MFY355-A   380
φ4.6×14 15 ≤25 100~115 285 YR1000-8 4200 740 J3160-C   485



After-Sale Service:



Erection and Commissioning

Operator Training

Spare Parts Supply

Warranty Terms: More than 12 months

Delivery Time:25~30 days after receiving advanced payment

Products Certificate: CE, ISO9001:2000



We(Shanghai LIPU Heavy Industry Co.,Ltd) believe that you can rely on us as we provide you quite satisfactory service and products with best quality at most competitive price in the world. We are very happy if you do not hesitate to send us any of your inquiries and we will always give satisfactory services.



Looking forward to hearing from you at your convenience!
