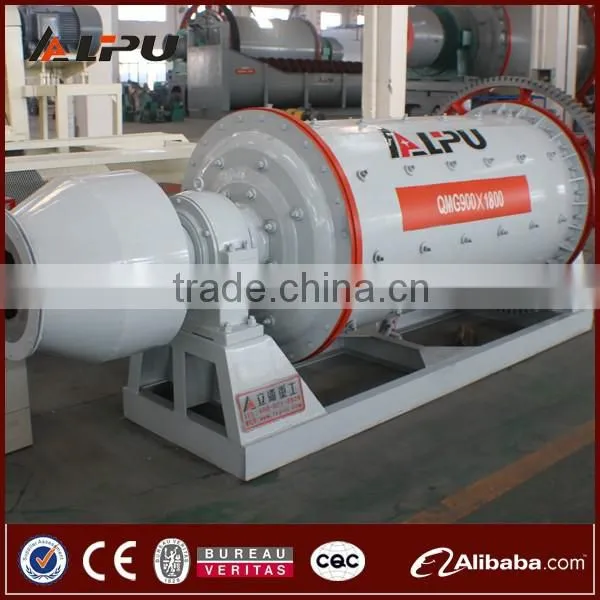

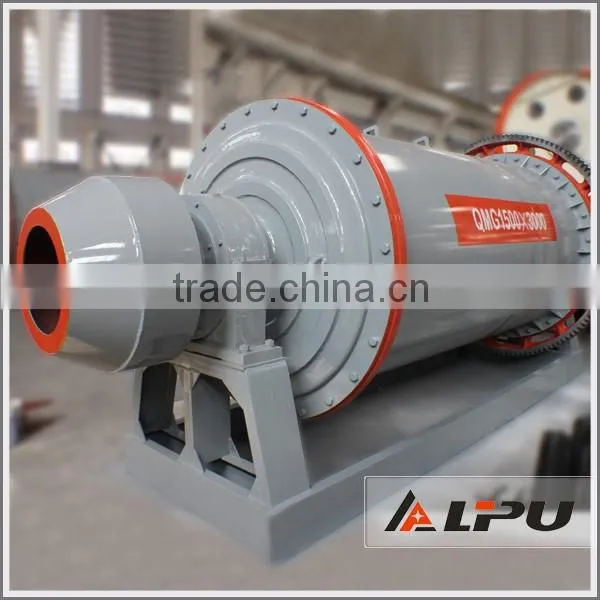

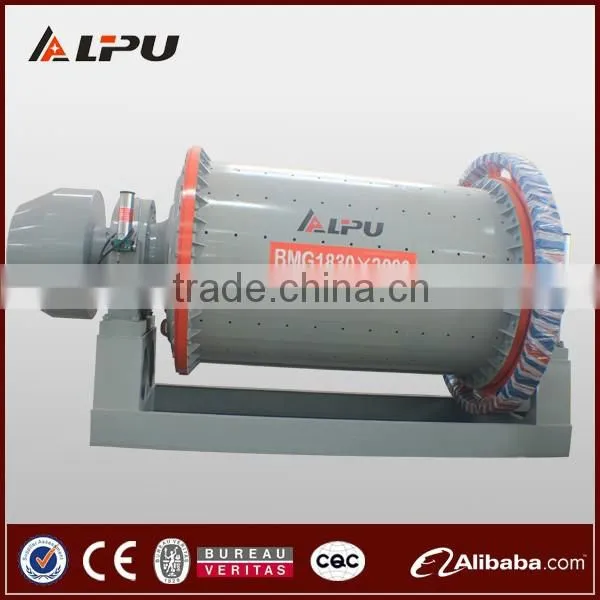

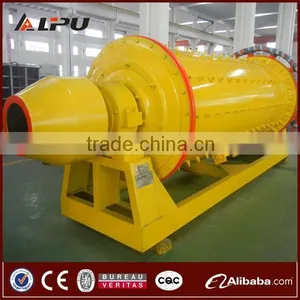

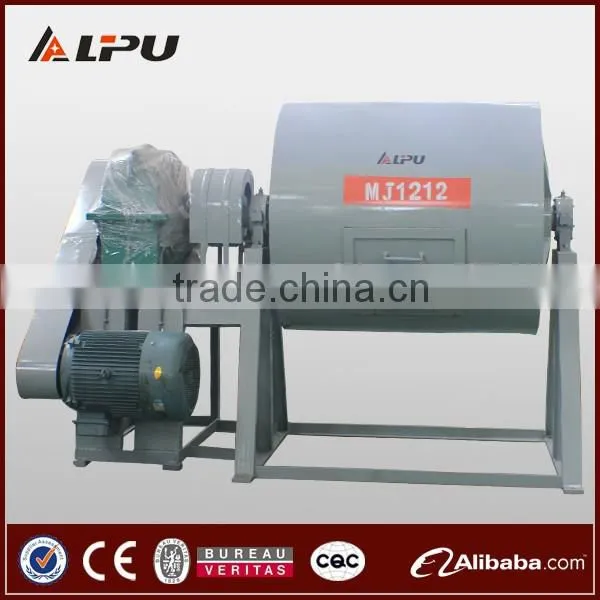

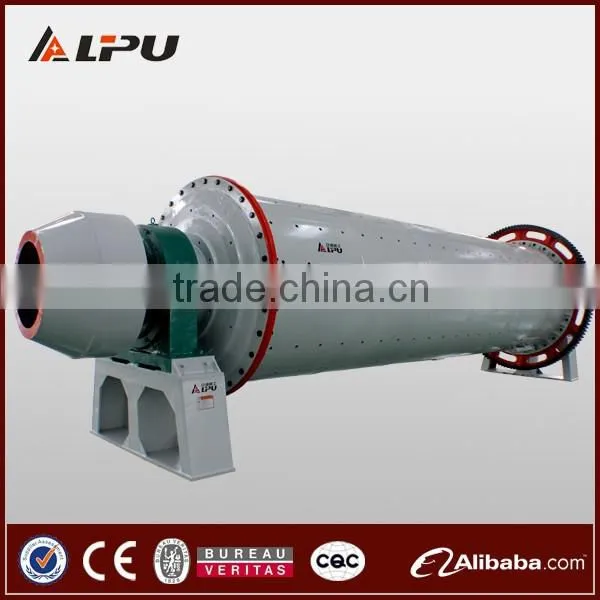

High Efficiency Mineral Stone Grinding Ball Mill Machine /Powder Making Mill with Excellent Output Fineness---LIPU Brand
Brief Introduction of Mineral Stone Grinding Ball Mill Machine:
LIPU ball mill is mainly used to grind materials in mineral, cement, refractory, chemical industry, etc. When ball mill works, certain water and other liquid will be added into materials to increase flowability of materials, so the capacity is increased.
Features of Mineral Stone Grinding Ball Mill Machine:
1. Large application range, simple structure and convenient maintenance.
2. Large capacity and continuous work are very obvious.
3. Barrel lining and grinding media can apply various abrasive materials.
4. Installation and adjustment are very convenient and easy to be operated.
Working Principle of Mineral Stone Grinding Ball Mill Machine:
When the Ball Mill works,motor and speed reducer transmit torque force to big and small gears of Ball Mill, so the barrel rotates. When the barrel rotates,Steel balls or other grinding media in the barrel are lifted to a certain height and fall down freely, so materials in the barrel are impacted.Grinding media mixing with materials impact and grind materials continuously.The grinding media and materials impact and grind each other when the Ball Mill rotates continuously.The final product will be discharged from outlet when it meets the request, so the grinding process is finished.
Technical Parameters of Mineral Stone Grinding Ball Mill Machine:
Model |
Effective volume(m3) |
Max. steel ball load (t) |
Capacity (t/h) |
Power(kW) |
Rotary speed(rpm) |
Weight (t) |
||||
MQG |
MQY |
MQS |
MQG |
MQY |
MQS |
|||||
φ900×1800 |
1 |
1.3 |
1.7 |
2 |
0.9-1.6 |
1.7-3.2 |
2-3.7 |
15 |
37 |
4.2 |
φ900×2100 |
1.1 |
1.5 |
1.9 |
2.3 |
1-1.9 |
2-3.7 |
2.3-4.3 |
18.5 |
37 |
4.9 |
φ900×3000 |
1.6 |
2.2 |
2.8 |
3.3 |
1.4-2.7 |
2.9-5.4 |
3.3-6.2 |
30 |
37 |
7.6 |
φ1200×2400 |
2.4 |
3.3 |
4.1 |
4.9 |
2.2-4 |
4.3-8 |
5-9.2 |
30 |
35 |
8.7 |
φ1200×3000 |
3 |
4.1 |
5.2 |
6.2 |
2.7-5 |
5.4-10 |
6.2-12 |
37 |
35 |
13 |
φ1200×4500 |
4.4 |
6.2 |
7.7 |
9.3 |
4-7.5 |
8.1-15 |
9.3-17 |
55 |
35 |
14 |
φ1500×3000 |
4.8 |
6.6 |
8.3 |
10 |
4.3-8 |
8.6-16 |
10--19 |
75 |
29 |
15 |
φ1500×4500 |
7.1 |
10 |
12 |
15 |
6.5-12 |
13-24 |
15-28 |
110 |
29 |
16 |
φ1500×5700 |
9 |
13 |
16 |
19 |
8.2-15 |
16-31 |
19-35 |
130 |
29 |
24 |
φ1830×3000 |
7.1 |
10 |
12 |
15 |
6.4-12 |
13-24 |
15-28 |
130 |
24.5 |
28 |
φ1830×4500 |
10.6 |
15 |
18 |
22 |
10--18 |
19-36 |
22-41 |
155 |
24.5 |
32 |
φ1830×6500 |
15.3 |
21 |
27 |
32 |
14-26 |
28-52 |
32-60 |
210 |
24 |
35 |
φ1830×7000 |
16.5 |
23 |
29 |
34 |
15-28 |
30-56 |
35-64 |
245 |
24 |
37 |
φ2100×3000 |
9.4 |
13 |
16 |
20 |
9--16 |
17-32 |
20-37 |
155 |
23.5 |
42 |
Producing Process of Mineral Stone Grinding Ball Mill Machine:
Delivery Site of Mineral Stone Grinding Ball Mill Machine:
Work Site of Mineral Stone Grinding Ball Mill Machine:
