Negotiable MOQ: 1 Kilometer (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
Huiyuan
Model Number:
GYTC8A(S)
Contact Supplier Request Quote Chat Now
Sichuan Huiyuan Optical Communications Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name Huiyuan
Model Number GYTC8A(S)
Type Cat 1



Packaging & Shipping

 Packaging Detalis:



All cables will be delivered on drums with protection of both ends of the cable. Each drum will be a waterproof mark, with clearly factory name, date, cable type, cable length in unit gross weight, cable outer diameter, cable weight, and so on and will be provided the length of all fibers in each drum.

GYTC8A(S)--Central Loose Tube Figure 8 Self-supporting Optical Fiber Cable Structure:



Delivery:

Within 10-20 days after receipt of the deposit confirmed.

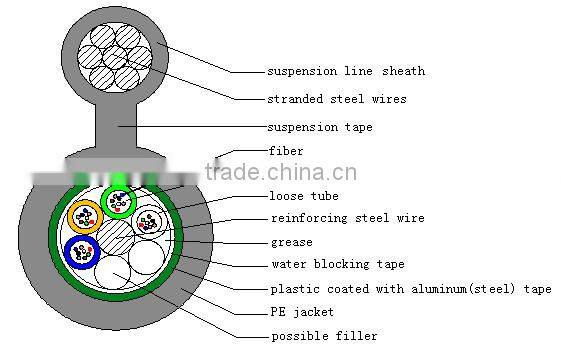

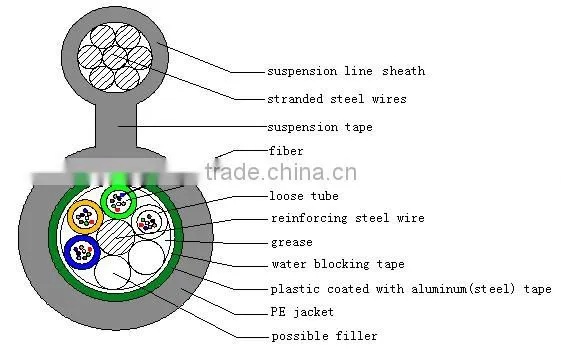

Structure



Loose tube

Filling compound

Aluminum (steel) tape coated with PE jacket

Self-supporting by high grade zinc-galvanized stranded steel wires



GYTC8A(S)--Central Loose Tube Figure 8 Self-supporting Optical Fiber Cable Structure:







Feathers



1.Low attenuation and dispersion, special control of exceed length and layer stranding technology ensures the good transmission performance in varying environment.



2.Good water blocking material prevents the cable from longitudinal water penetration.



3.Aluminum (steel) tape coated with PE sheath provides excellent water blocking performance.



4.High grade zinc-galvanized stranded steel wires as self-supporting element enhance the tensile resistance.





Application

 Suitable for LAN and uptown communication



Installation



 By aerial



Parameter



Fiber count(core)

2-30

32-36

38-40

42-48

50-60

62-72

Diameter of suspension sheath(mm)

6.0

6.0

6.0

6.0

6.0

6.0

Outer diameter(mm)

9.4

9.7

10.2

10.6

11.2

12.0

Cable weight(kg/km)

170(190)

180(200)

180(200)

195(215)

200(225)

205(235)

Minimum tensile strength(N)

Short-term:        8000

Long-term:          3000

Minimum crushing(N/100mm)

Short-term:        1000

Long-term:           300

Bending radius

Static:10 times of diameter     Dynamic:20 times of diameter

Standard length for delivery(km)

2~6

Temperature range(0C)

-40~+60

   Note: 1) span space is no less than 50 meters, Installation sag is no less than 1% of span

            2) Provide products with higher tension level and greater span space based on users’ requirements.


Company Information

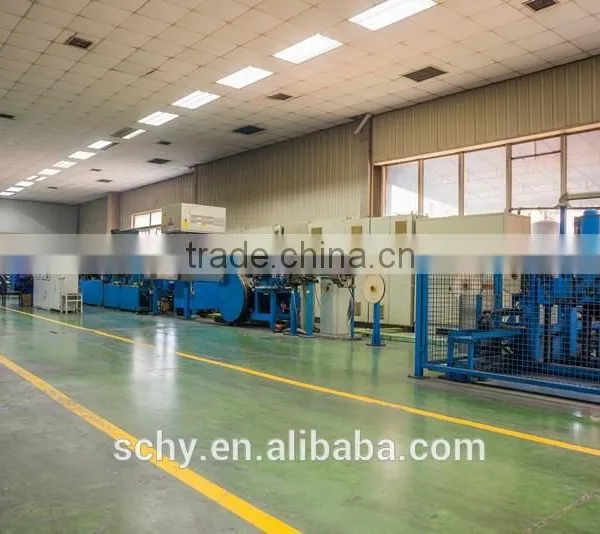

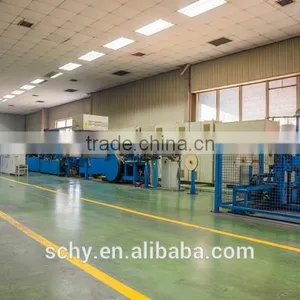

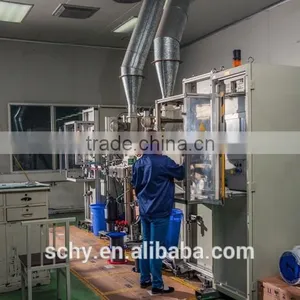

                                                 Comfortable Working Environment
