China manufactured Outdoor and indoor fiber optic cable meter price

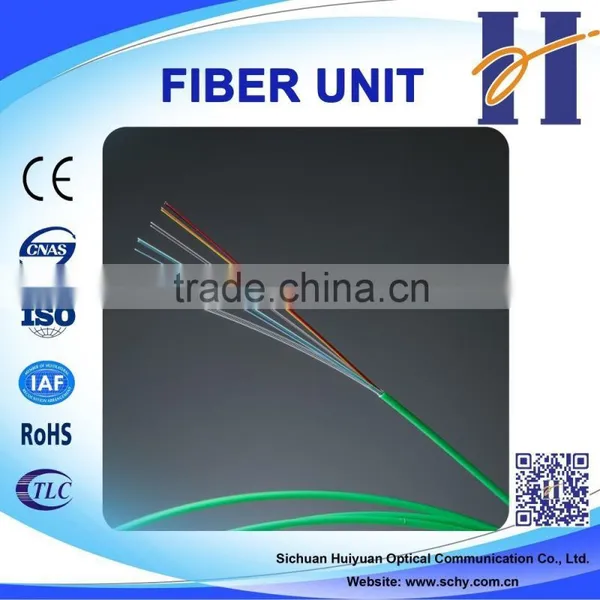

The ABF is the product that with small diameter, lightweight, highly flexibility and proper stiffness, and it can be blown into the microduct of 5.0/3.5mm. The fibres are coated with a soft acrylate resin which provides excellent dimensional and thermal stability to cushion the fibres, in addition, the resin can be easily stripped in connecting the fibres. The outer sheath is a thermoplastic that is of low friction. The surface of the sheath is designed with special grooves, compared to the surface of the traditional optical fibre cable, it provides not only the high level of mechanical protection, but also the perfect blowing performance.
Single Mode Fiber Optic Cable
Stranded loose tube Single Mode Fiber Optic Cable
Fiber Optic Cable
Aerial Single Mode Fiber Optic Cable
Non-metal member Single Mode Fiber Optic Cable
PE Sheath Single Mode Fiber Optic Cable
Single Sheath Single Mode Fiber Optic Cable
Advantage:
2,4,6,8 and 12 fibres options
Stable structure, good mechanical and temperature performance
Designed with special grooves to advance blowing distance
Light weight and proper stiffness , repeat installation
Designed with no gel, easy stripping and handling
Better costs advantage compared to traditional product
Complete accessories, less manpower, lower installation time
Easy installation and removal when necessary
Designed in accordance with applicable industry technical specifications
standards and references including IEC and EN
Fibre Count |
2 Fibres |
4 Fibres |
6 Fibres |
8 Fibres |
12 Fibres |
Outer Diameter (mm) |
1.15±0.05 |
1.15±0.05 |
1.35±0.05 |
1.50±0.05 |
1.65±0.05 |
Weight (g/m) |
1.0 |
1.0 |
1.3 |
1.8 |
2.2 |
Min Bend radius (mm) |
50 |
50 |
60 |
80 |
80 |
Temperature |
Storage:-30℃ ~ +60℃ Operation:-20℃ ~ +60℃ Installation:-5℃ ~ +50℃ |
||||
Packaging Detail: Wooden drum or iron wooden drum
Delivery Detail: 30days after confirmation of order and payment
Fibre Count |
Length (m) |
Pan Size Φ×H (mm) |
Weight (Gross) (kg) |
2~4 Fibres |
2000 m |
φ560 × 120 |
8.0 |
4000 m |
φ560 × 180 |
10.0 |
|
6 Fibres |
2000 m |
φ560 × 180 |
9.0 |
4000 m |
φ560 × 240 |
12.0 |
|
8 Fibres |
2000 m |
φ560 × 180 |
10.0 |
4000 m |
φ560 × 240 |
14.0 |
|
12 Fibres |
1000 m |
φ560 × 120 |
8.0 |
2000 m |
φ560 × 180 |
10.5 |
|
4000 m |
φ560 × 240 |
15.0 |
In 1995, first test run of Huiyuan ADSS cable put into operation in Sichuan power grid. After nearly 20 years test, the line still runs safely, which creates the longest run record of domestic ADSS cable.
In 1996, the first domestic ADSS cable with high-voltage electrical corrosion sheath ran safely on the 220KV line till so far.
After years of development, Huiyuan has become a special optical cable provider in the western region and an influential company in China. Its featured products have four series, including power fiber optic cable (ADSS, OPGW, OPPC); micro air blown cable, fiber optic unit and micro air blown cable tube; various types of sensing cable and detection cable; Lp user oriented fiber and optical fiber ribbon.
We are the one of biggest manufacture of fiber optic cable in China and has many years’ manufacturing
and selling experience.
We accept OEM. The cable size and material are customized.Your own logo and own design are welcomed.
We will produce according to your requirement and description;
Please send us inquiry for more products info and we will give you feedback in 12 hours.
For any questions, please feel free to contact with Roy.
Email: huiyuan_roy(at)
