multimode 50 125 fiber optical cable

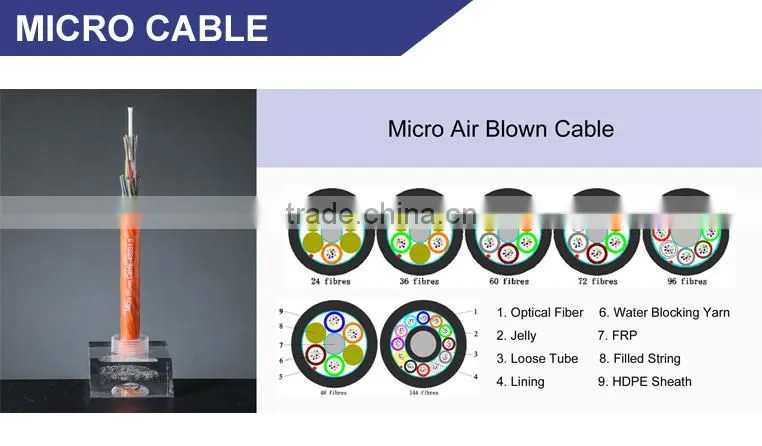

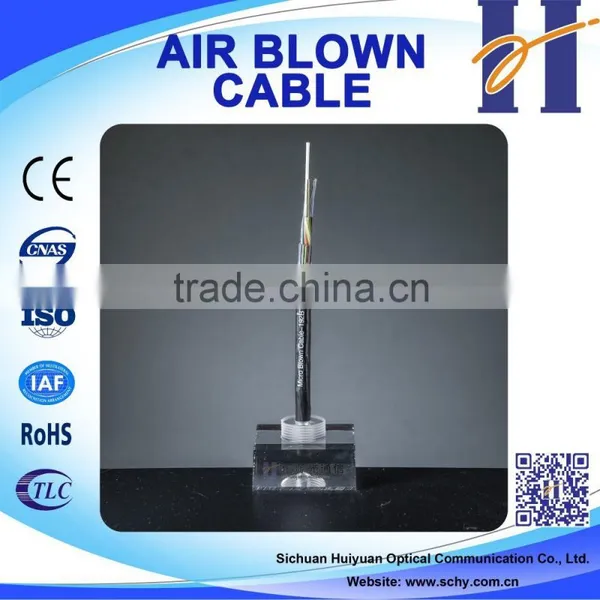

Air Blown Micro Cables are ultra lightweight with and small diameter and designed for metro feeder or access network to be blown into a micro duct by air-blown installation. As the cable allows the deployment of currently required fiber count, the micro cable provides a lower initial investment and the flexibility to install and upgrade to the latest fiber technologies after the initial installation.
Single Mode Fiber Optic Cable
Advantage:
Optimum cable structure, high fibre density.
Accurate fibre length balance, ensure stable performance.
No gel in cable core for water blocking, low carbon and environmental friendly.
Structure Innovation in sheath, enhancing the blowing performance.
Proven loose tube design for performance
Small diameter, lightweight and low friction sheath design
Excellent blowing length and fast, safe and cost effective installation
Drycore design for excellent water blocking performance and easier handling
SZ stranding design allows for easy mid-span access and isolates fibers from installation and environmental rigors
Easy installation and removal when necessary
Designed in accordance with applicable industry technical specifications, standards and references including IEC and EN
| Cable Type | Layer Cable | ||||||||
| Fibre Count | 24 | 36 | 48 | 60 | 72 | 96 | 144 (A) | 144 (B) | |
| Number of loose tube | 2 | 3 | 4 | 5 | 6 | 8 | 12 | 6 | |
| Number of filled string | 4 | 3 | 2 | 1 | 0 | 0 | 0 | 0 | |
| Number of fiber/tube | 12 | 24 | |||||||
| Water blocking method | FRP or PE Lining | Water Blocking yarn | |||||||
| Cable Core | Water Blocking Kevlar | ||||||||
| Thickness of HDPE sheath | Nominal: 0.50mm, Average: 0.45mm, Minimum: 0.40mm | ||||||||
| Overall Diameter | 5.6±0.2 mm | 6.4±0.2 mm | 8.2±0.2 mm | 8.0±0.2 mm | |||||
| Weight | 27 kg/km | 40 kg/km | 65 kg/km | 55 kg/km | |||||
| Max. Tensile Strength | 500N | 1000N | 1200N | 1000N | |||||
| Max. Crushing Resistance | 800N/100mm | ||||||||
| Min. Bending radius -Static | 12 outer Φ | ||||||||
| Min. Bending radius -Dynamic | 20 outer Φ | ||||||||
| Cable Fiber Attenuation (G.652D) | 0.35dB/km max @1310nm 0.22dB/km max @1550nm | ||||||||
| Temperature range | Storage -40~+70℃; Installation -10~+40℃; Operation -40~+70℃ | ||||||||
Based on ISO9001, ISO14001 and OHSAS18001, we establish quality management system, environmental management system and occupational safety and heal management system, to ensure all flow of the process including: designing, R&D, purchasing, manufacturing, inspection and testing, packing, warehousing, delivery, and service in control.
Huiyuan (Shenzhen Stock Exchange: 000586), is one of the leading cable manufacturers in China, providing superior professional fiber optic cables to worldwide customers.
Huiyuan specializes in R&D, manufacture and sales of all kinds of optical fiber cables, including ADSS, OPGW, OPPC, micro air blown cable, fiber optic unit, optical fiber ribbon and so on. Untill now, the company has its full range of optical fiber cable to EU, Canada, Korea, Malaysia, Australia, Thailand, Vietnam, Zambia, Colombia, Nepal, Philippine, Bulgaria, and so on.
The company has achieved certificates of Quality Management System ISO9001, Environment Management System ISO14001, and Health and Safety Management System OHSAS18001.
Huiyuan's target is to be the most highly regarded and successful fiber optic cable company in the world and brings convenience to people.
Packaging Detail: Special wooden drum or iron wooden drum is also available according to cable size and packing length or customer required.
Delivery Detail: 30 days after confirmation of order and payment or customer required
1. We are one of the biggest optical fiber cable manufactures in China and have 20 years’ manufacturing and selling experience.
2.Micro air blown fiber optic cable, OPGW, ADSS and Plastic optic fiber are our competitive products.
3. We accept OEM. The cable size and material are customized.
Your own logo and own design are welcomed.
We will produce according to your requirement and description;
4. Different ways of transportation
A. ROAD, RAIL, SEA, and AIR transport.
B. Air Express: FedEx, DHL, UPS, GLS, and so on.
5. We provide FREE samples.
6. Please send us inquiry for more products info and we will give you feedback in 12 hours.
