S Type Load Cell (TSK)(15t,20t,30t) Wireless Weight Sensor

Name: S Type Load Cell (TSK)(15t,20t,30t) Wireless Weight Sensor
Brand: SILVANUS
Availability: InStock

FOB Price

US$ 103.87 - 505.21 / Piece

50 Pieces(Min. Order)

Port shanghai
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	SILVANUS
Model Number	TSK	Usage	Pressure Sensor
Theory	Resistance Sensor	Output	Analog Sensor

Product Description

S Type Load Cell (TSK)(15t,20t,30t)

TSK Load Cell Features :

1 Hermetically sealed

2 Max. Capacities :15,20,30t

3 Compact structure integrated and high precision

4 Application and scales, batching and weighing control and electronic

truck scale

TSK Load Cell Application :

Apply to electronic hook scales and various special weighing apparatus

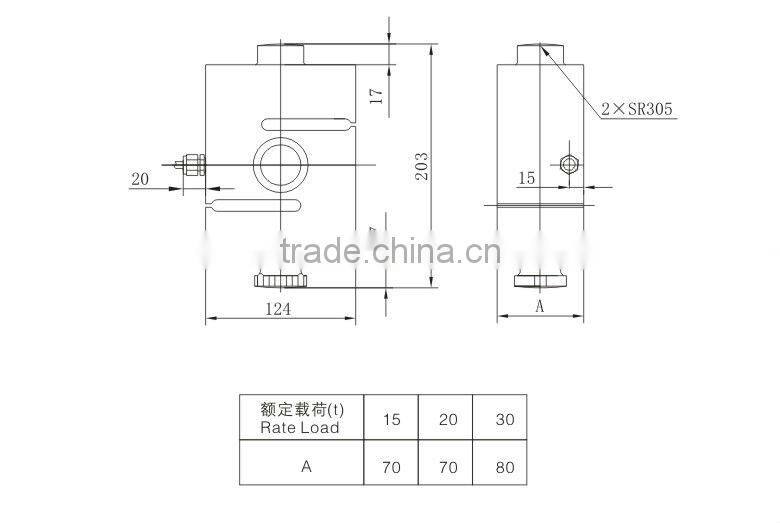

TSK Load Cell Dimensions(mm):

TSK Load Cell Specifications:

Emax(Max. capacity)	t	15,20,30
Sensitivity	mV/V	2.0±0.002
Accuracy class		C2	C3
Maximum number of verification intervals	nmax	2000	3000
Minimum load cell verification interval	Vmin	Emax/2000	Emax/3000
Combined error	%F.S	≤±0.020	≤±0.015
Creep	%F.S/30min	≤±0.020	≤±0.015
Temperature effect on sensitivity	%F.S/10°C	≤±0.02	≤±0.017
Temperature effect on zero	%F.S/10°C	≤±0.02	≤±0.017
Zero balance	%F.S	±1.0
Input resistance	Ω	380±10Ω
Output resistance	Ω	350±3Ω
Service temperature range	°C	-30...+70
Safe overload	%F.S	120
Ultimate overload	%F.S	200
Recommended excitation voltage	V	5…15
Insulation resistance	MΩ/50V	>5000
Protection class		IP67/IP68
Load cell material		Alloy steel
Cable length	m	5
Cable outer caliber	mm	Φ5

Packaging & Delivery

PACKAGE:

DeliveryUsually 15days after receiving 30% deposit (for T/T terms), but 30days for customized.

Our Company:

Silvanus Electric Manufacture (Yixing) Co., Ltd. is a professional hi-tech enterprise, which specializes in manufacturing high precision load cells.
On the basis of strong R&D ability and advanced equipment in production, inspection and testing, we specialize in scientific research, production and sales of all kinds of high precision load cells. Our products are widely used in electric weighing apparatuses, metallurgy, petrifaction, environmental protection, mechanism, textiles, medicines, construction examining, and ports.
We insist on the policy of "customer oriented" and aim at producing the best load cells. In controlling and managing the quality of our products. We comply with OIML and ISO9001:2000 standards. According to the quality policy of "Through building a system of quality and management which is lasting and effective", we serve customers with better quality products on time. We will always improve ourselves and bring our company a brand-new future.
