Help CenterWeighing Sensor S Type (10kg~20t) Load Cell (TSG)
Related Products
-
Alloy Steel S Type Loadcell (TSG) (10kg~20t)US$ 21 - 40MOQ: 10 Pieces -
S Type Load Cell With High Accuracy(TSG)(10kg~20t) for Batch WeigherUS$ 21 - 40MOQ: 10 Pieces
-
S Type Load Cell With High Accuracy(TSF)(20kg~10t)US$ 59 - 500MOQ: 1 Piece
-
Weighing Sensor S Type (20kg~10t) Load Cell (TSF)US$ 25 - 108MOQ: 1 Piece
-
Round S Type Load Cell(TSF) for Crane ScaleUS$ 25 - 108MOQ: 1 Piece
S Type Load Cell(TXG)(10kg~20t)

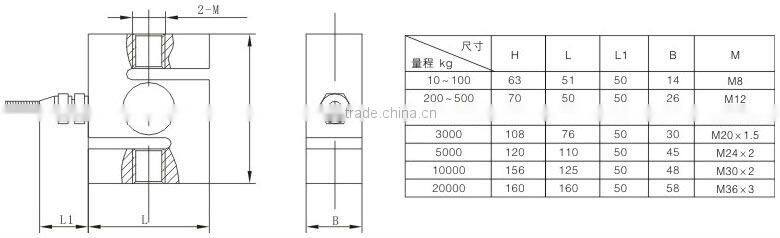

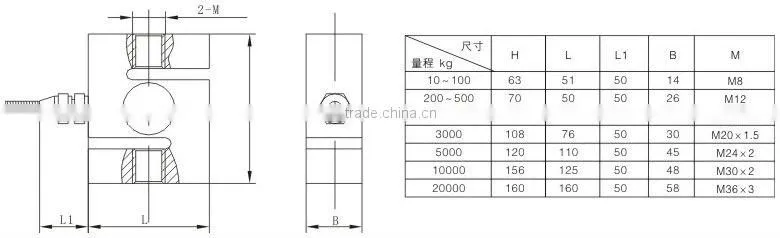

Dimensions(mm)
Specifications
Emax(Max. capacity) |
Kg |
10~20000 |
|
Sensitivity |
mV/V |
2.0±0.002 |
|
Accuracy class |
|
C2 |
C3 |
Maximum number of verification intervals |
nmax |
2000 |
3000 |
Minimum load cell verification interval |
Vmin |
Emax/2000 |
Emax/3000 |
Combined error |
%F.S |
≤±0.020 |
≤±0.015 |
Creep |
%F.S/30min |
≤±0.020 |
≤±0.015 |
Temperature effect on sensitivity |
%F.S/10°C |
≤±0.02 |
≤±0.017 |
Temperature effect on zero |
%F.S/10°C |
≤±0.02 |
≤±0.017 |
Zero balance |
%F.S |
±1.0 |
|
Input resistance |
Ω |
380±10Ω |
|
Output resistance |
Ω |
350±3Ω |
|
Service temperature range |
°C |
-30...+70 |
|
Safe overload |
%F.S |
120 |
|
Ultimate overload |
%F.S |
200 |
|
Recommended excitation voltage |
V |
5…15 |
|
Insulation resistance |
MΩ/50V |
≥5000 |
|
Protection class |
|
IP67/IP68 |
|
Load cell material |
|
Alloy Steel/Stainless Steel |
|
Cable length |
m |
3(10~2000kg) 6(3000~20000kg) 10(20000) |
|
Cable outer caliber |
mm |
Φ5 |
|
Features
1. S type load cell , tension and compression
2.Good output symmetry , compact structure , simple to install , full range
of capacities
3.Suitable for batch weigher , crane scale ,hopper scale and
various special scales,process control decices.
Application
Apply to batch weigher , crane scale ,hopper scale and
various special scales,process control decices.
