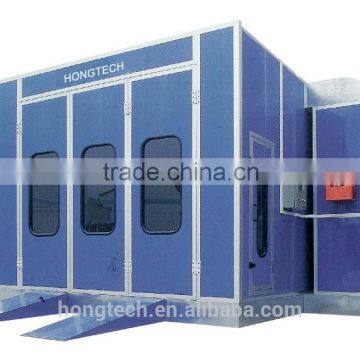

Hongtech SBA500 Spray Booth, Painting Baking Room
US$ 4,000 - 7,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Power:
17.5KW
External Size:
7200X3900X2700MM(LXWXH)
Internal Size:
7340X5350X3470MM(LXWXH)
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cheap SBA800 Riello Burner Infrared Heating Painting Auto Spray BoothUS$ 6,000 - 10,000MOQ: 1 Unit -
SBA-9-45B Industrial Spray Booth/car Spray BoothUS$ 5,300 - 30,000MOQ: 1 Unit
-
SBA-9-45A Industrial Spray Booth/truck Spray BoothUS$ 5,300 - 17,000MOQ: 1 Unit
-
SBA-20-50 Industrial Spray BoothUS$ 5,300 - 17,000MOQ: 1 Unit
-
High Quality Industrial Spray Oven Bake Booth SBA-15-50supplierUS$ 5,000 - 40,000MOQ: 1 Unit
Power
17.5KW
External Size
7200X3900X2700MM(LXWXH)
Internal Size
7340X5350X3470MM(LXWXH)
Voltage
As requested
Certification
Other, ISO 9000/9001/9004/19011: 2000
Disc Dia.
/
No Load Speed
0.3m/s
Place of Origin
China
Brand Name
Hongtech
Model Number
SBA500
Hongtech Spray Booth SBA500
Product Description
SBA500 Spray Booth is an advanced type of spray booth whichabsorbing several technical advantages from domestic andabroad.Excellent design and perfect technology make our spray boothmore suitable to the market's requirements.
The inner dimension7200*3900*2700mm is very popular in many European countries.And it'sequipped many parts imported parts,like the Italy Riello burner,Philiplights,etc.
CE certification guarantees excellently performance,strong practicabilities,and high economical efficiency.
Technical data
| Inside Dimension | 7200X3900X2700MM(LXWXH) |
| Outside Dimension | 7340X5350X3470MM(LXWXH) |
| Main door | 3-fold, 3000X2650MM(WXH) |
| Personal door | 1-fold, 800X2000MM(WXH) |
| Wall panel | EPS heat preservation panel double skinned ,tongue and grooveconstruction, thickness: 70mm, roof panel: 60mm EPS heat preservationplate |
| Basement and floor | Complete steel assemble, height:300mm, complete grille, 3pcs of ramp,900X2000MM(WXL) |
| Lighting | Upper inclined lights:32PcsX36W;Lower lights:2PcsX10unitsX36W;Vertical installation, Illuminance:800Lux |
| Generator setting type | Back upper intake air, back upper extract air, aluminium alloy frame, coated steel. |
| Intake fan | 1 centrifugal fan,7.5KW,capacity:25000m3/h |
| Extract fan | 1 centrifugal fan,7.5KW,capacity:25000m3/h |
| Heating system | Riello RG5S oil burner,260000Kcal, Stainless steel heat exchanger,highest temperature 80C, electric damper execute from spraying tobaking cycle |
| Filter system | Prefilter, high efficiency filter(ceiling filter), floor filter, extract filter |
| Control system | Spraying, risen-temperature spraying, baking temperature, timesetting, lighting switch, time accumulator, pressure Gauge, emergencystop, failure alarm, temperature control meter |
| Total power | 17.5KW |
