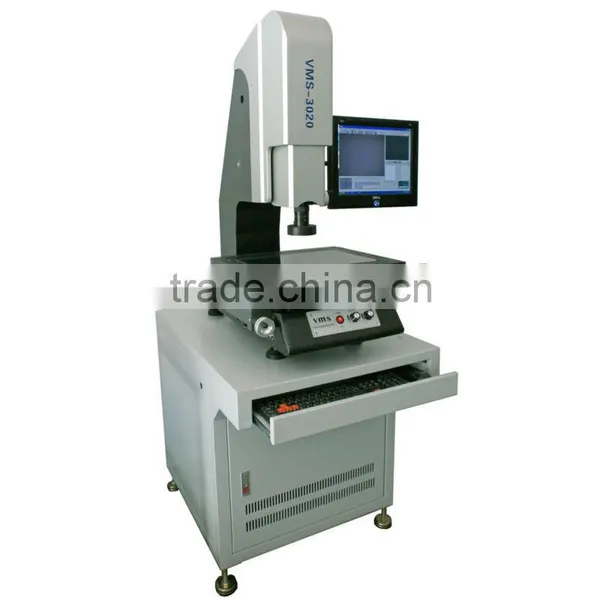

Video-based Measurement System (2D/3D)
ASLI, as a leading video-based measurement system (2D/3D) supplier from China, has more than 25 year’s experience in video-based measurement system (2D/3D) manufacture. ASLI boost his own technical team in video-based measurement system (2D/3D) R&D, and it also introduces the advance quality control method in video-based measurement system (2D/3D) production. Our video-based measurement system (2D/3D) series products are in compliance with the industrial standards, IE, ISO, ASMT, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE, CSA and CEN.
Video-based Measurement System (2D/3D) Technical Parameters :
Model |
VMS-1510 |
VMS-2010 |
VMS-2515 |
VMS-320 |
VMS-4030 |
||||||
|
Work Table |
Metal Table Size(mm) |
354x228 |
404x228 |
450x280 |
500x330 |
606x466 |
|||||
Glass Table Size (mm) |
210x160 |
260x160 |
306x196 |
350x280 |
450x350 |
||||||
Moving Stroke (mm) |
150x100 |
200x100 |
250x150 |
300x200 |
400x300 |
||||||
Weight (Kg) |
100 |
110 |
120 |
140 |
240 |
||||||
Dimension WxHxD (mm) |
540x850x560 |
760x900x600 |
970x940x670 |
||||||||
|
Image System
|
Color 1/3’''CCD Video Camera Zoom Lenses: 0.7~4.5× |
||||||||||
Magnification of Video : 40~255× | |||||||||||
Object Field: 7-1.1mm, LEDsurface lamp plate & LED incident illuminant, light intensity adjustable | |||||||||||
Video-based Measurement System (2D/3D) Features :
1.With RS232 interface, can be connected with computer, adopt specialized measuring software 2D can manage &
output the graphics.
2.Optional print machine, different measurement and scanning system are available
3.Can measure point, line, circle, arc, oval, rectangular and improve the accuracy with the multi-point positioning
function
4.Flexible harmonious translation of X,Y,Z axils make the measurement more convenient and efficient.
5.The measuring data can be directly output into Word, Excel & AutoCAD
Video-based Measurement System (2D/3D) Application :
Video-based measurement system (2D/3D) is widely used to measure the two coordinates in all application areas
such as machinery,electronics, instruments, plastics, etc.
More details please contact Asli sales, we will help you find the right precision video testing machine !
...
