2D/3D Precision Measurement System
ASLI, as a leading 2D/3D precision measurement system supplier from China, has more than 25 year’s experience in 2D/3D precision measurement system manufacture. ASLI boost its own technical team in 2D/3D precision measurement system R&D, and it also introduces the advance quality control method in 2D/3D precision measurement system
production.Our 2D/3D precision measurement system series products are in compliance with the industrial standards, IE, ISO, ASMT, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE, CSA and CEN.
2D/3D Precision Measurement System Technical Parameters:
Model |
SOV-4030 |
SOV-3020 |
SOV-2010 |
|
Dimensions, WxHxD (mm) |
860x650x1120 |
700x500x900 |
570x370x790 |
|
Zoom Multiple (17 inch screen) |
20x-120x, 30x-225x |
|||
CCD |
Color, 1/3 inch, 8000000 PX |
|||
X*Y*Z Stroke (mm) |
400x300x150 |
300x20x150 |
200x100x100 |
|
Bench Dimensions(mm) |
600x450 |
500x350 |
350x270 |
|
Load of Bench(Kg) |
30 |
25 |
30 |
|
Optional Configuration |
UK Probe |
|||
Weight (Kg) |
350 |
180 |
100 |
|
2D/3D Precision Measurement SystemFeatures:
1. With RS232 interface, it can be connected with computer, adopt specialized measuringsoftware 2D,can manage &
output the graphics.
2. Optional print machine, different measurement and scanning system are available .
3. Can measure point, line, circle, arc, oval, rectangular and improve the accuracy with the multipoint positioning function
4. Flexible harmonious translation of X,Y,Z axils make the measurement more convenient and efficient.
2D/3D Precision Measurement System Application:
3D video measuring system is designed to do three dimensional work piece on the slope, round ,ditch,
columns,ball,dimension,bland holes as well as the geometricalterms such as the distance between the
elements and angles. And it is widely used in mechinery,electronics, mobile fittings,home appliances,
connector, machine fittings, precisionfixture, plastic, hardware, circumjacentfields of computer and so on
and other industries.

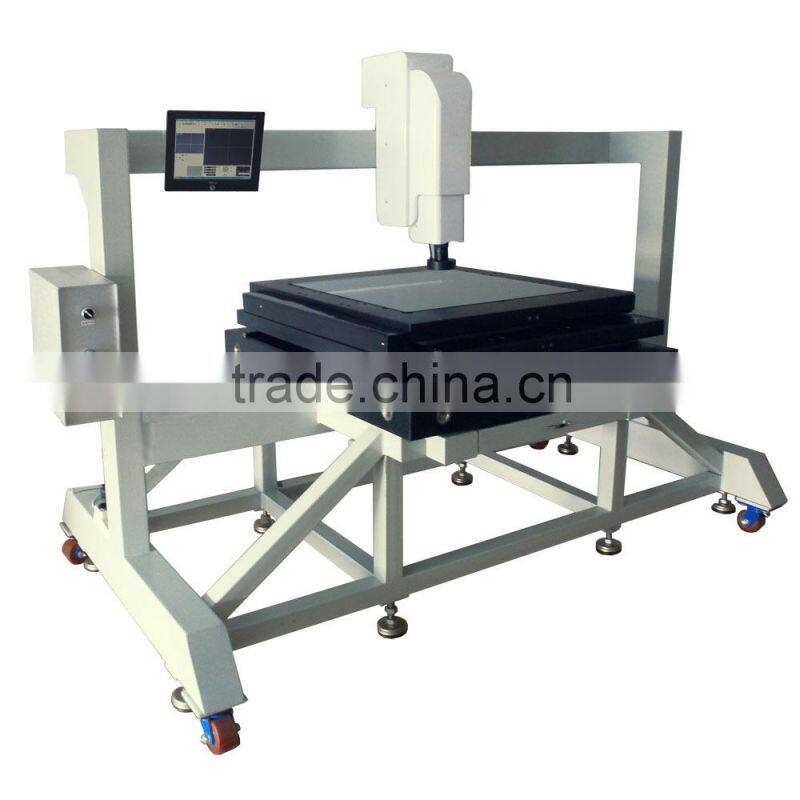

More pictures of 2D/3D Precision Measurement System :
...
