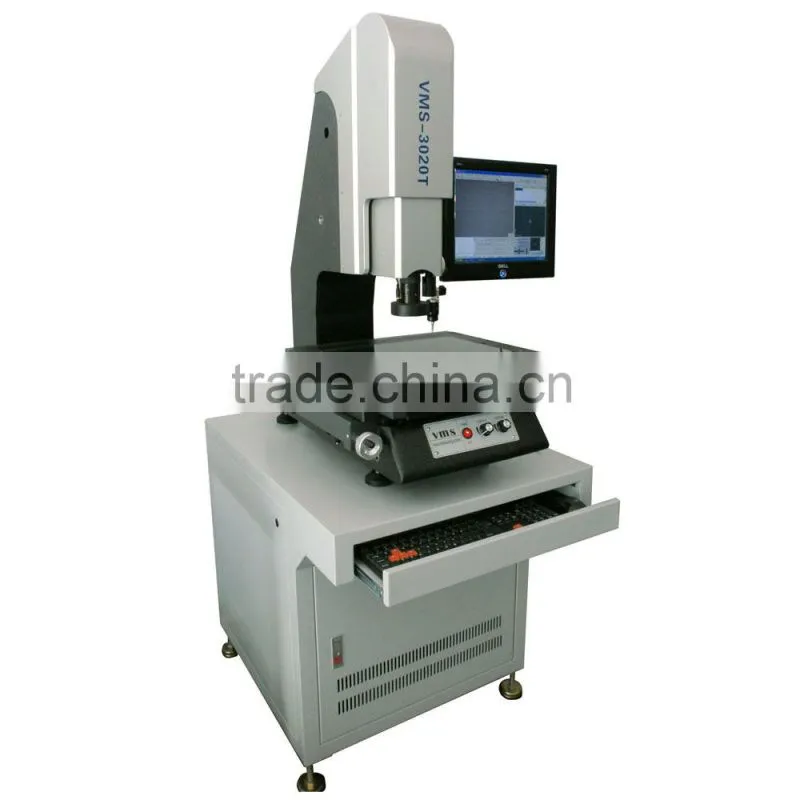

Help CenterExtra-large Three Coordinate Measuring Machine
Related Products
-
Three Coordinate Measuring MachineUS$ 4,000 - 20,000MOQ: 1 Set -
Three Coordinates Measuring MachineUS$ 4,000 - 20,000MOQ: 1 Set
-
CNC Video Measuring SystemUS$ 5,000 - 16,500MOQ: 1 Set
-
High Accuracy Measurement SystemsUS$ 4,000 - 20,000MOQ: 1 Set
-
Digital Video Inspection SystemsUS$ 4,000 - 20,000MOQ: 1 Set
Extra-large Three Coordinate Measuring Machine Technical Parameters:
Model |
VMS-6050A |
VMS-7060A |
VMS-1080A |
VMS-1210A |
X,Y,Z Stroke (mm) |
600×500×200 |
700×600×200 |
1000×800×200 |
1200×1000×200 |
Bench Dimension (W×D) (mm) |
760×660 |
960×860 |
1318×918 |
1518×1118 |
Structure Material |
High precision granite structure |
|||
Lighting System |
LED, Brightless adjustable |
|||
CCD |
USA “TEO” Brand |
|||
Zoom Multiple |
0.7~4.5x ;30~225X |
|||
Working Distance |
90mm |
|||
Object Field |
10.6~1.6mm |
|||
Grating ruler analytical precision |
0.001mm |
|||
Measurement Accuracy |
(3+L/200)um |
|||
Repetitive Accuracy |
0.002mm |
|||
Working Environment |
Temperature:25±5°C, Relative Humidity:30%~75%,Away from vibration source |
|||
Extra-large Three Coordinate Measuring Machine Features:
1. With RS232 interface, it can be connected with computer, adopt specialized measuring software 2D,can manage
& output the graphics.
2. Optional print machine, different measurement and scanning system are available .
3. Can measure point, line, circle, arc, oval, rectangular and improve the accuracy with the multi-point positioning
function
4. Flexible harmonious translation of X,Y,Z axils make the measurement more convenient and efficient.
Extra-large Three Coordinate Measuring Machine Application:
Extra-large three coordinate measuring machine is designed to do three dimensional work piece on the
slope, round ,ditch,columns,ball,dimension,bland holes as well as the geometricalterms such as the distance
between the elements and angles. And it is widely used in mechinery,electronics,mobile fittings,home appliances, connector, machine fittings, precision fixture, plastic, hardware, circumjacentfields of computer and so on
and other industries.
For more detaile innformation about this extra-large three coordinate measuring machine , you are
welcomed to contact us!
...
