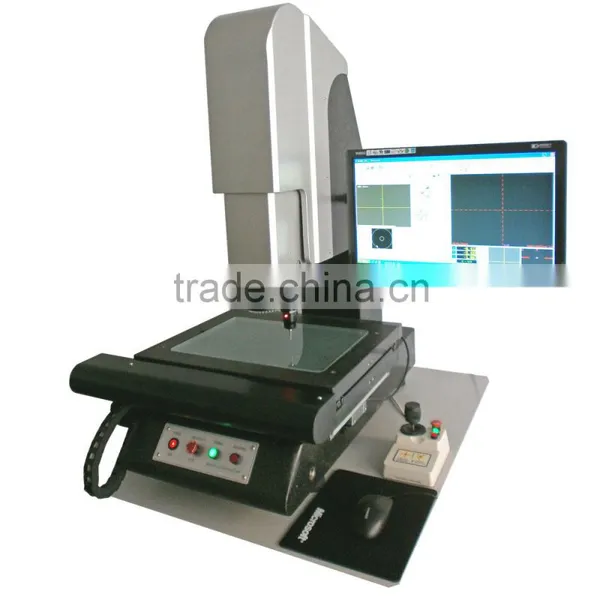

Help CenterAutomatic Three-Coordinate Measuring Machine
Related Products
-
Extra-large Three Coordinate Measuring MachineUS$ 4,000 - 20,000MOQ: 1 Set -
Three Coordinate Measuring MachineUS$ 4,000 - 20,000MOQ: 1 Set
-
Three Coordinates Measuring MachineUS$ 4,000 - 20,000MOQ: 1 Set
-
CNC Video Measuring SystemUS$ 5,000 - 16,500MOQ: 1 Set
-
High Accuracy Measurement SystemsUS$ 4,000 - 20,000MOQ: 1 Set
Automatic Three-coordinate Measuring Machine Technical Parameters:
Model |
SOV-4030 |
SOV-3020 |
SOV-2010 |
|
Dimensions, WxHxD (mm) |
860x650x1120 |
700x500x900 |
570x370x790 |
|
Zoom Multiple (17 inch screen) |
20x-120x, 30x-225x |
|||
CCD |
Color, 1/3 inch, 8000000 PX |
|||
X*Y*Z Stroke (mm) |
400x300x150 |
300x20x150 |
200x100x100 |
|
Bench Dimensions(mm) |
600x450 |
500x350 |
350x270 |
|
Load of Bench(Kg) |
30 |
25 |
30 |
|
Optional Configuration |
UK Probe |
|||
Weight (Kg) |
350 |
180 |
100 |
|
Automatic Three-coordinate Measuring Machine Features:
1. With RS232 interface, it can be connected with computer, adopt specialized measuringsoftware 2D,can manage &
output the graphics.
2. Optional print machine, different measurement and scanning system are available .
3. Can measure point, line, circle, arc, oval, rectangular and improve the accuracy with the multi-point positioning
function
4. Flexible harmonious translation of X,Y,Z axils make the measurement more convenient and efficient.
Automatic Three-coordinate Measuring Machine Application:
Automatic three-coordinate measuring machine is designed to do three dimensional work piece on the slope, round,ditch,columns,ball,dimension,bland holes as well as the geometricalterms such as the distance between
the elements and angles. And it is widely used in mechinery,electronics, mobile fittings,home appliances,
connector, machine fittings, precision fixture, plastic, hardware, circumjacentfields of computer and so on
and other industries.
For more detaile innformation about this Automatic Three-coordinate Measuring Machine , you are welcomed to contact us!
...
