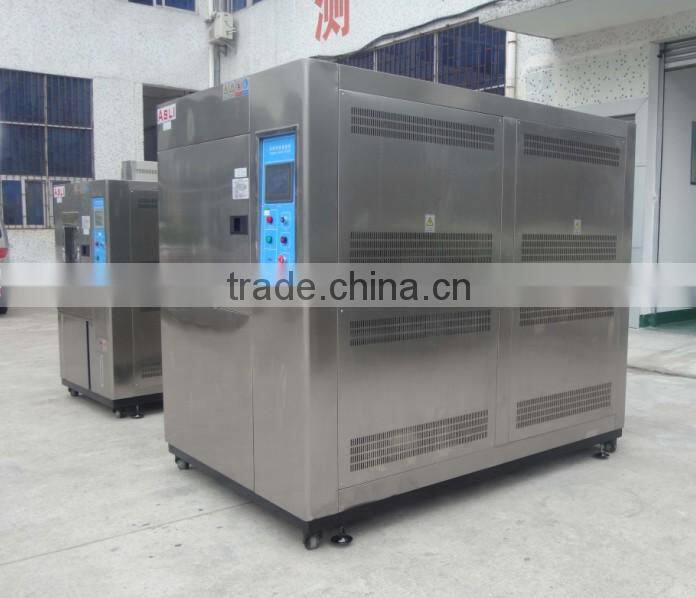

Rapid-Rated Thermal Cycling Test Chamber

Rapid-Rated Thermal Cycling Test Chamber

Rapid-Rated Thermal Cycling Chamber/ application:

Temperature shock tester is used to test the capability of material structure or composite materials to withstand the continuous environmental changes between extremely high temperature and low temperature during a short period, and therefore understand the chemical changes or physical damages caused by expansion from heat and contraction from cold in the shortest possible time. It is applicable to metals, plastic, rubber, electronics amongst other materials. The test result can be used as a reference or basis for product improvement.

Thermal Testing Service /features:

1.It is divided into three zones: high temperature zone, low temperature zone, and testing  zone. The test sample is in static mode.
2.Using touch-control graph control as operation interface, easy to operate.
3.Applying wind route conversation to the shock method to distribute temperature to the testing zone for cold and thermal shock measurement.
4.For high temperature shock or low temperature shock, max. time is up to 999H, and max. circulation cycles are 9999 times.
5.The system can be used for automatic Circulation Shock or manual selective shock.
6.Adopt binary cooling system, with quick cooling effect. Cooling method is water cooling.
7.Can entering normal temperature. RS-232 and RS-485 communication.

Thermal Cycling Test Chamber /technical parameters:

1.Model : TS-42(A~C) TS-80(A~C) TS-150(A~C) TS-252(A~C) TS-450(A~C)

2.Internal Dimension WxHxD (mm):400x350x350 500x400x400 600x500x500 700x600x600 800x750x750

3.External Dimension WxHxD (mm):1400x1800x1400 1550x1950x1550 1600x2000x1700 1700x2100x1750 1800x2200x1900

4.Temperature Range of  Testing zone: Type A:-40 °C~+150°C(200°C is Optional) Type B:-55°C ~+150°C (200°C is Optional) Type C:-65°C ~+150°C(200°C is Optional)

5.High temperature Range of Testing zone: +60°C~+150°C(200°C is Optional); Low Temperature Range of Testing Zone: -10°C~-40°C/-55°C/-65°C

6.Exposure Time of High/Low Temperature:Exposure Time of High Temperature:+60°C~+150°C(200°C is Optional)  30Mins

Exposure Time of Low Temperature:-10°C~Type A:-40°C/ Type B -55°C/ Type C -65°C  30Mins

7.Temperature of Heat-Storing Slot/Heating Time:RT~200°C/About  45mins

8.Temperature of Cool-storing Slot/Cooling Time:RT~-75°C/ About 100mins

9.Temperature Recovery Time/  Conversion Time:≤5min/≤5sec

10.Precision Temperature Control /  Distribution Accuracy :±0.5°C/±2°C

11.Internal and External Material:Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or  SEE cold-rolled steel with paint coated.

12.Insulation Material :High temperature  resistant, high density, formate chlorine, ethyl acetum foam insulation materials

13.Mechanics:P.I.D+S.S.R+ Micro-computer balanced temperature control system

14.Cooling System:Semi-hermetic double-stage compressor(water-cooled type) /Hermetic double-stage compressor (air-cooled type)

15.Security Protection Devices:Non-fuse breaker, high and low pressure protective switch of the compressor ,refrigerator  high-pressure protective switch, failure warning system, electronic alarm

16.Accessories: viewing window(special order)

17. Compressor : French “Tecumseh” Brand, Germany Bizer Brand

18. Power:AC220V 1- 3 lines,50/60HZ, AC380V 3- 5 lines,50/60HZ

19.Weight (Approx) :450 600 750 950 1200
