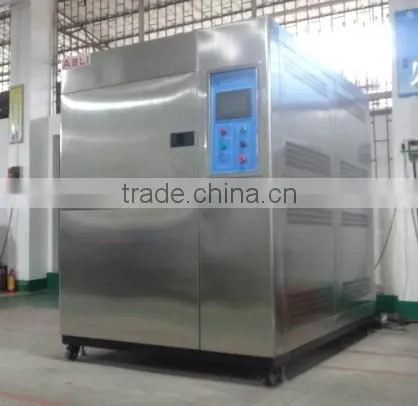

Thermal Conductivity Tester
1.Application:
Temperature shock testing machine is used to test the capability of material structure or composite materials to withstand the continuous environmental changes between extremely high temperature and low temperature during a short period, and therefore understand the chemical changes or physical damages caused by expansion from heat and contraction from cold in the shortest possible time. It is applicable to metals, plastic, rubber, electronics amongst other materials.
2. Thermal Conductivity Tester / Features:
1.Temperature shock test chamber is divided into three boxes: high temperature, low temperature, and the testing area, testing products placed on the testing area; when testing, the valve , which drove by cylinder,lead the high temperature or low temperatures into the testing area. The test sample is in static mode.
2.Using touch-control graph control as operation interface, easy to operate.
3.Applying wind route conversation to the shock method to distribute temperature to the testing zone for cold and thermal shock measurement.
3. Thermal Tester / Technical parameters:
Model |
TS-42(A~C) |
TS-80(A~C) |
TS-150(A~C) |
TS-252(A~C) |
TS-450(A~C) |
||||
|
Internal Dimension WxHxD ( mm) |
400x350x350 |
500x400x400 |
600x500x500 |
700x600x600 |
800x750x750 |
||||
|
External Dimension WxHxD (mm) |
1400x1800x1400 |
1550x1950x1550 |
1600x2000x1700 |
1700x2100x1750 |
1800x2200x1900 |
||||
|
Temperature Range of Testing zone |
Type A:-40 °C~+150°C(200°C is Optional) |
Type B:-55°C ~+150°C (200°C is Optional) |
Type C:-65°C ~+150°C(200°C is Optional) |
||||||
High temperature Range of Testing zone: +60°C~+150°C(200°C is Optional); Low Temperature Range of Testing Zone: -10°C~-40°C/-55°C/-65°C | |||||||||
|
Exposure Time of High/ Low Temperature |
Exposure Time of High Temperature:+60°C~+150°C(200°C is Optional) 30Mins |
||||||||
Exposure Time of Low Temperature:-10°C~Type B:-40°C/ Type B -55°C/ Type C -65°C 30Mins | |||||||||
Temperature of Heat-Storing Slot/Heating Time |
RT~200°C/About 45mins |
||||||||
Temperature of Cool-storing Slot/Cooling Time |
RT~-75°C/ About 100mins |
||||||||
|
Temperature Recovery Time/ Conversion Time |
≤5min/≤5sec |
||||||||
|
Precision Temperature Control / Distribution Accuracy |
±0.5°C/±2°C |
||||||||
|
Internal and External Material |
Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or see cold-rolled steel with paint coated. |
||||||||
Insulation Material |
High temperature resistant, high density, formate chlorine, ethyl acetum foam insulation materials |
||||||||
Mechanics |
P.I.D+S.S.R+ Micro-computer balanced temperature control system |
||||||||
Cooling System |
Semi-hermetic double-stage compressor(water-cooled type) /Hermetic double-stage compressor (air-cooled type) |
||||||||
Security Protection Devices |
Non-fuse breaker, high and low pressure protective switch of the compressor |
||||||||
Accessories |
viewing window(special order) |
||||||||
Compressor |
French Tecumseh Brand, Germany Bizer Brand |
||||||||
Power |
AC220V 1Φ 3 lines,50/60HZ, AC380V 3Φ 5 lines,50/60HZ |
||||||||
Weight (Approx) |
450 |
600 |
750 |
950 |
1200 |
||||
4. Warranty: one year free warranty for whole set machine,lifelong time maintainance.
5. After-sale service: feedback within 2 hours after get the call.
6. Service: OEM service,Design service,Buyer lable service.

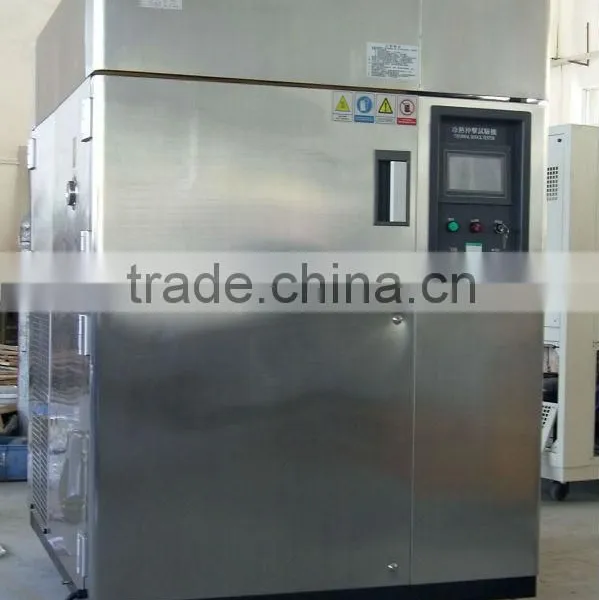

7. More pictures for Thermal Conductivity Tester:
