Professional Thermal Shock Chamber

FOB Price

USD $17,000 - $50,000 / Set

1 Set(Min.Order)

Supply Ability 50 Set / Sets per Month
Port Shenzhen/HongKong
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Guangdong, China	Brand Name:	ASLi	Model Number:	TS-Series
Power:	Electronic	Usage:	Universal Testing Machine

Product Description

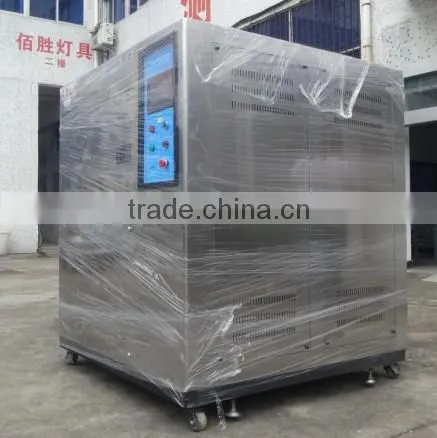

Professional Thermal Shock Chamber

Application:

Temperature shock tester is used to test the capability of material structure or composite materials to withstand the continuous environmental changes between extremely high temperature and low temperature during a short period, and therefore understand the chemical changes or physical damages caused by expansion from heat and contraction from cold in the shortest possible time. It is applicable to metals, plastic, rubber, electronics amongst other materials. The test result can be
used as a reference or basis for product improvement

Features:

1.Temperature shock test chamber is divided into three boxes: high temperature, low temperature, and the testing area, testing products placed on the testing area; when testing, the valve , which drove by cylinder,lead the high temperature or low temperatures into the testing area. The test sample is in static mode.

2.Using touch-ontrol graph control as operation interface, easy to operate.
3.Applying wind route conversation to the shock method to distribute temperature to the testing zone for cold and thermal shock measurement.

4.For high temperature shock or low temperature shock, maximum time is up to 999H, and maximum circulation cycles are 9999 times.

5.The system can be used for automatic Circulation Shock or manual selective shock.
6.Adopt binary cooling system, with quick cooling effect. Cooling method is water cooling.
7.Can entering normal temperature. R232 and R485 communication interface.

Technical Parameters:

Model	TS-42(A~C)		TS-80(A~C)		TS-150(A~C)		TS-252(A~C)	TS-450(A~C)
Internal Dimension WxHxD ( mm)	400x350x350		500x400x400		600x500x500		700x600x600	800x750x750
External Dimension WxHxD (mm)	1400x1800x1400		1550x1950x1550		1600x2000x1700		1700x2100x1750	1800x2200x1900
Temperature Range of Testing zone	Type A:-40 ºC~+150ºC(200ºC is Optional)			Type B:-55ºC ~+150ºC (200ºC is Optional)			Type C:-65ºC ~+150ºC(200ºC is Optional)
	High temperature Range of Testing zone: +60~+150ºC (200ºC is Optional); Low Temperature Range of Testing Zone: -10ºC~-40ºC/-55ºC/-65ºC
Exposure Time of High /Low Temperature	Exposure Time of High Temperature:+60ºC~+150ºC(200ºC is Optional) 30Mins
	Exposure Time of Low Temperature:-10ºC~Type B:-40ºC/ Type B -55ºC/ Type C -65ºC 30Mins
Temperature of Heat-Storing Slot /Heating Time	RT~200ºC/About 45mins
Temperature of Cool- storing Slot/Cooling Time	RT~-75ºC/ About 100mins
Temperature Recovery Time/ Conversion Time	≤5min/≤5sec
Precision Temperature Control / Distribution Accuracy	±0.5ºC/±2ºC
Internal and External Material	Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or see cold rolled steel with paint coated.
Insulation Material	High temperature resistant, high density, formate chlorine, ethyl acetum foam insulation materials
Mechanics	P.I.D+S.S.R+ Micro-computer balanced temperature control system
Cooling System	Semi-hermetic double-stage compressor(water-cooled type) /Hermetic double-stage compressor (air-cooled type)
Security Protection Devices	Non-fuse breaker, high and low pressure protective switch of the compressor ,refrigerator high-pressure protective switch, failure warning system, electronic alarm
Accessories	viewing window(special order)
Compressor	French Tecumseh Brand, German Bizer Brand
Power	AC220V 1 ø 3 lines,50/60HZ, AC380V 3ø 5 lines,50/60HZ
Weight (Approx)	450	600			750	950			1200
