Stainless Steel Portable Pipe Cutter

Name: Stainless Steel Portable Pipe Cutter
Brand: YILANG
SKU: 110153531
Availability: InStock

US$ 360 - 400 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

China

Brand Name:

YILANG

Nanning ChuanJun Welding Hardware Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin China

Brand Name YILANG

Model Number CG2-11B

Voltage AC220/50V/HZ

Dimension(L*W*H) 265*420*450MM

Weight 14.5KG

Certification CE Certificate

Warranty 1 Year

After-sales Service Provided No overseas service provided

Stainless Steel Portable Pipe Cutter

Features

1.It has impacted structure, light weight and can cut continuously.

2.It uses chains to lock pipe and you can increase or decrease chain according to the diameter of pipe.

3.The machine adopts motor shift driving, which has many merits, such as high precision and smooth.

Product Description

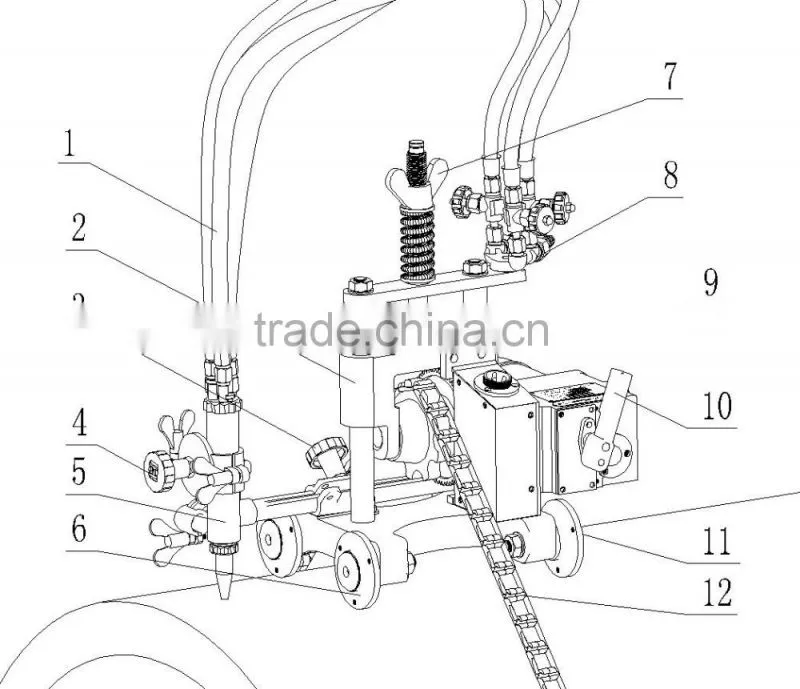

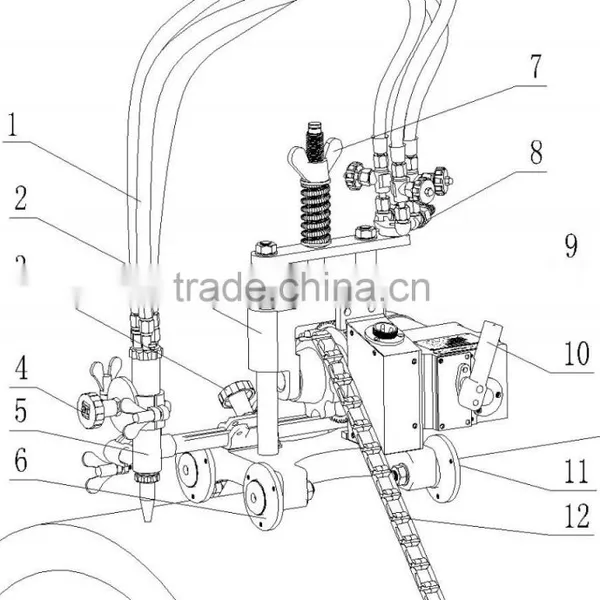

1.Hose:Connect them to gas distributor. There are three hoses: preheating oxygen hose, fuel gas hose and cutting oxygen hose.	6.Roller wheel :To make the machine walks smoothly on the pipe wall.
2. Sliding support	8. Wing nut:Revolve it to tighten the chain to fix machine on pipe.
3.Cross feeding hand wheel :To adjust horizontal position of torch.	9.Gas distributor:Preheating oxygen, cutting oxygen and
4.Lift hand knob of torch:To adjust the height of torch.	10.Gas distributor:Gases are preheating oxygen, fuel gas and cutting oxygen.
5. Torch:The cutting thickness is about 5-50mm	11 .Body 12. Chain

Specification

1.Weight(body)	14.5KG
Accessory	7.8KG
2. Machine dimension	265MMX420MMX450MM
3. Power source	AC 220V
4. Cutting speed	50~2300MM/MIN
5. Cutting thickness	5-50MM
6. Groove angle	0°--45°
7. Cutting diameter	ø150-ø600MM
8.Tip	GO2(acetylene) GO3(propane)
9. Motor	70ZYT08 85W 6000r/min
Accessory
Tip GO2(acetylene) or GO3(propane) #1,#2,#3		1 pc each
Tip cleaner		1set
Chain(82 chain shackle)		1set
Electric appliance case		1pc
Wrench		1pc
Fuse		2pcs
Notice: The biggest cutting diameter is 600mm due to the collateral chain. If the cutting diameter is above 600mm, you should increase chain which need be purchased.
