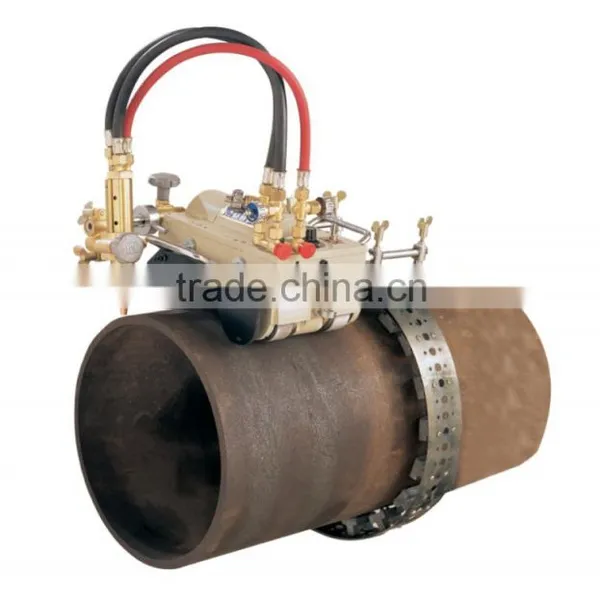

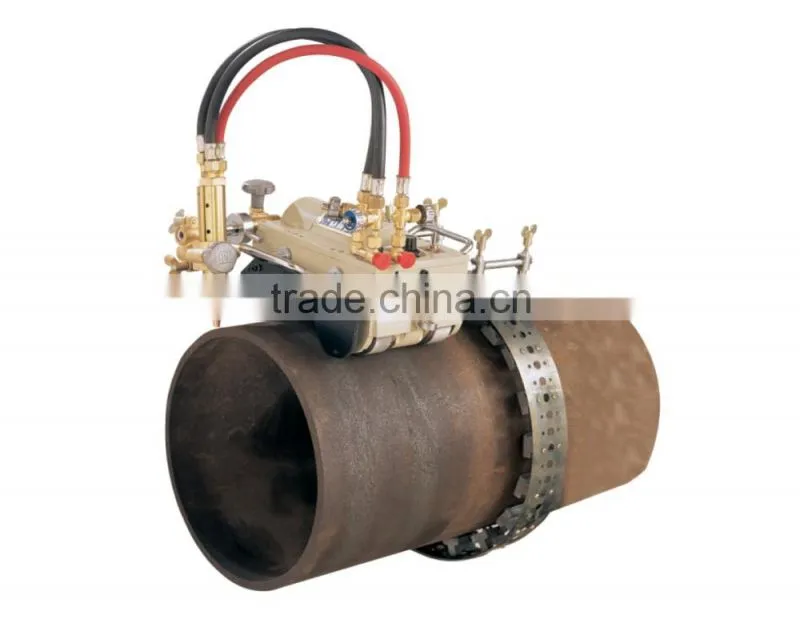

AC220V Magnetic Pipe Gas Cutter
1.It can cut pipes, the diameters of which are above 100mm.
2.It is used in many fields such as ship, mechanism, electric, petroleum industry and so on.
3. It has impacted structure, light weight and can cut continuously.
1. Body |
8.Thermal baffle:To prevent heat to diffuse into the inner of machine. |
|
2 .Cross feeding hand wheel To adjust horizontal position of torch. | |
9.Two-port valve:To adjust the flow. | |
3. Hoses:Connect them to gas distributor. There are three hoses: preheating oxygen hose, fuel gas hose and cutting oxygen hose. |
10.Gas distributor:Gases are: preheating oxygen, fuel gas and cutting oxygen. |
11 Speed regulating knob:Decrease the speed along “10” toward “0” anti-clockwise. | |
4.Torch | |
5. Adjusting hand wheel of torch |
12.Plug seat |
6.Handlebar |
13.Magnetic roller wheel:The two magnetic roller wheels can make the machine walk along pipe wall smoothly. |
7.Reversing switch:To change the direction of machine. “STOP” position is in the middle. |
1.Weight(body) |
14.5KG |
2. Machine dimension |
305MMX310MMX180MM |
3. Power source |
220V 50HZ |
4. Cutting speed |
50-750MM/MIN |
5. Cutting thickness |
6-50MM |
6. Groove angle |
0°-45° |
7. Cutting range |
>108MM(The no-seam pipe) |
8) Cutting accuracy |
When the machine walks a cycle on pipe, the error is below 0.5mm every 1m circumference. The smoothness of cutting and groove can reach |
9. Adsorption affinity of magnetic roller wheel |
Above 50kiograms |
10. Impulse of machine. |
When the machine walks up and down, it is below 0.5mm. |
11. Motor |
It adopts 70SZ08 servo-motor. 6000r/min, 68W |

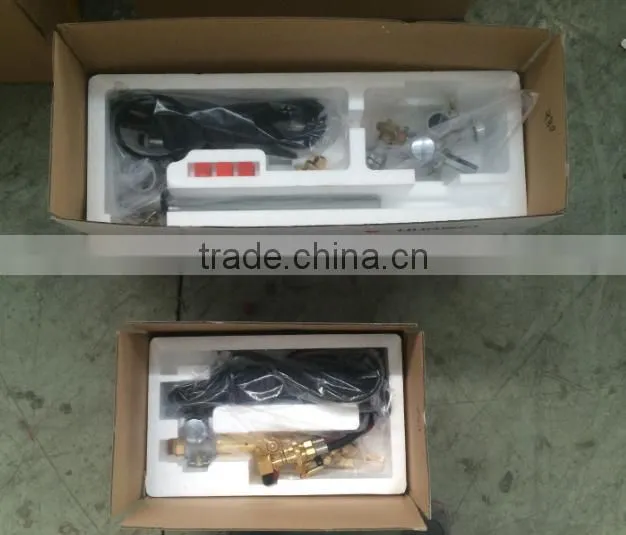

Packing content
1.Standard pack | |
1) Main body |
:1set |
2) Standard torch unit assemblage |
:1set |
3) Connector of torch |
:1set |
4) Tip |
:3pcs |
6) Gas-in connector |
:1set |
7) Electric case and connecting wire |
:1set |
8) Specification sheets and certificate of qualification |
:1 pc each |
9) Safety rope |
:1pc |
10) Safety buckle |
:1pc |
11) fuse(3A) |
:1pc |
