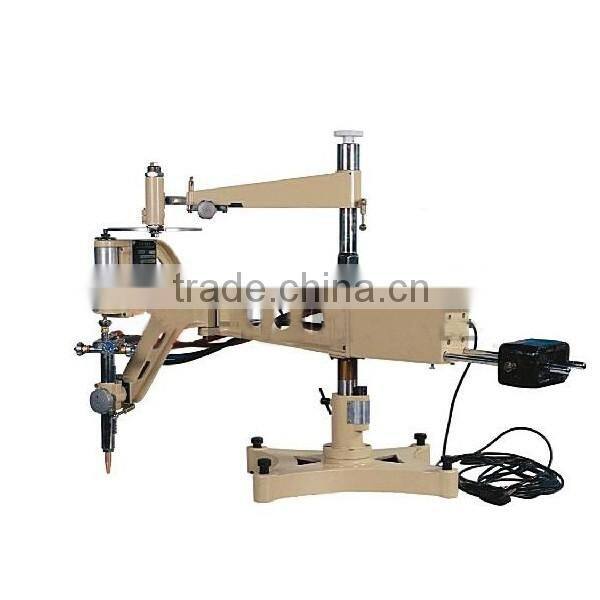

CG2-150 Semi-Automatic Flame Profiling Gas Cutter

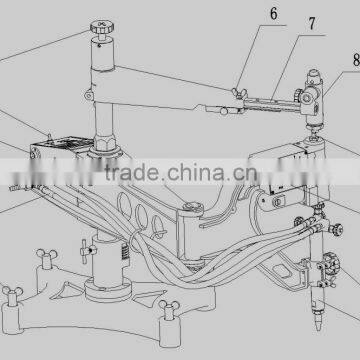

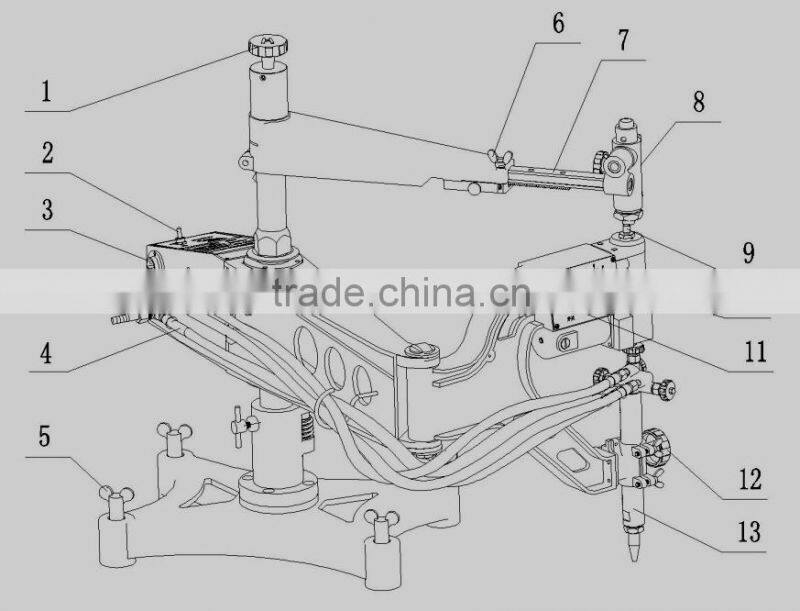

| 1 | Lift wheel of arm :Release the screw of arm and adjust the wheel to make the arm unit assembly rise or fall. |
| 2 | Power switch |
| 3 | Outlet |
| 4 | Hoses: There are four hoses: preheating, cutting, fuel gas and feeding gas for pressure switch |
| 5 | Screw at the bottom: Make the machine horizontal on steel plate |
| 6 | Locking screw of arm cross moving bar: If the position of sample plate is settled, you can fix the cross moving bar on the arm with locking screw |
| 7 | Cross moving bar:Measuring scale is set on the fracture of cross moving bar. You can adjust the sample plate horizontally according to scale |
| 8 | Frame of sample plate: To fix the sample plate and adjust the height of sample plate |
| 9 | Magnetic head |
| 10 | Speed regulating knob:Increase the speed if you revolve it along “0” to “10” |
| 11 | Direction regulating switch: To change the rotary direction of magnetic head |
| 12 | Lifting hand wheel of torch |
| 13 | Torch |
1.Weight(Body) |
56.5 kg |
2. Machine dimension |
1190×335×800mm |
3.Speed control |
SCR |
4.Power source |
220V 50HZ |
5. Cutting speed |
50~750/mm/min |
6. Cutting thickness |
5~100mm |
7. The diameter of cutting circle. |
ø20~ø600mm |
8. Length of cutting line. |
1200mm |
9. Size of cutting rectangle. |
400mm×900mm, 450mm×750mm |
10.Motor |
55/ZYT DC110V24W 3600r/min |
Packing:
After quality testing,our products will be well packed.
1 First wrapped by plastic film
2 Then fixed by EPE foam
3 Carton box outside
1. Main body |
1 set |
2. Standard torch unit assemblage |
1set |
3. 3. Tip (acetylene ) |
3pcs |
4.Power wire |
1pc |
5.Power wire |
1pc |
6. Gas-in connector |
1set |
Standard accessory | |
8. Ball-pane screw M4 |
2pc |
9.bevel unit assemblage |
1set(floating device and contour wheel) |
10. Heavy punch |
2 pc |
Random standard accessory | |
1.balance bar |
2pcs |
2.Heavy punch |
1set |
3.Sample plate of circle |
1set |
4.Angle-iron and connecting pipe(CG2-150A) |
1pc each |
Shipping :
1,We can arrange the shipping by Courier (DHL, UPS, Fedex, TNT etc.) by air or by sea for you.
2,Pls tell us which shipping way that you want and your detailed address, your nearest airport or seaport.
