Fast Plasma Cutting Machine With Gas Cutter Machine

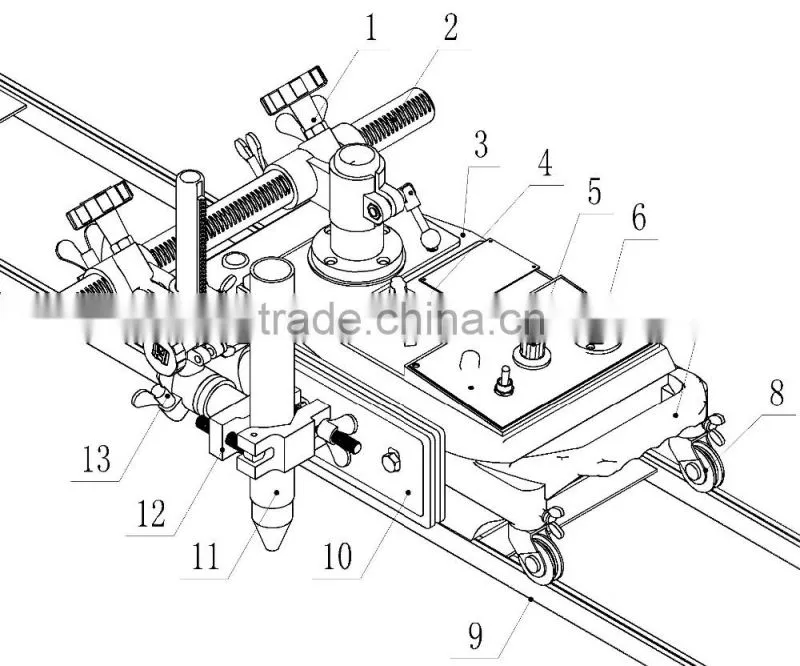

| 1 | left and right moving seat |
| 2 | cross moving rack |
| 3 | main body |
| 4 | clutch lever:Align the end of lever with “STOP” is detach.Align the end of lever with “START” is combination |
| 5 | Speed control knob: The speed is increased from “0”to“10”; The speed is decreased from “10”to“0” |
| 6 | power outlet |
| 7 | portable handle |
| 8 | universal wheel |
| 9 | guide |
| 10 | insulation board:prevent the heat produced by cutting from going into the inner of machine. |
| 11 | plasma torch |
| 12 | plasma holder |
| 13 | up and down moving assembly of torch |
1.Weight |
12.5 kilograms |
2. Machine dimension |
435 mm×210 mm×240 mm |
3. Speed control |
silicon control |
4. Power source |
AC 220V±10% 50HZ |
5. Cutting speed |
50~4500/mm/min |
6. Cutting thickness |
Option as per cutting required |
7.Groove angle |
0-45 degrees |
8.Diameteral of cutting circle |
ø200-ø2000mm |
10.Motor |
DC 110V 50HZ 30W 4200r/min |
Packing:
After quality testing,our products will be well packed.
1 First wrapped by plastic film
2 Then fixed by EPE foam
3 Carton box outside
1. Body |
1 set |
2.Torch unit assemblage |
1set |
3. Moving unit assemblage |
1set(including left-right, up-down moving unit assemblage and gear rack) |
4. Tip (acetylene) |
1# 2# 3 #, 2 pc each |
5.Power wire |
1pc |
6.Specification sheets and certificate of qualification |
1 pc each |
7.Gas-in connector /pressure cat |
1set |
8.Ball-pane screw M4 |
2pc |
Standard accessory | |
1.Cutting circle unit assemblage |
1set |
nvex guide rail |
2pcs(1.8m/pc)or grooved guide rail 1pc(1.8m) |
Shipping :
1,We can arrange the shipping by Courier (DHL, UPS, Fedex, TNT etc.) by air or by sea for you.
2,Pls tell us which shipping way that you want and your detailed address, your nearest airport or seaport.
About us:
Nanning ChuanJun Welding Hardware Co., Ltd.founded in 2004,has been focused on welding equipment and accessory for more than 10 years. ChuanJun is member of the China Welding Association. Providing system services for enterprises needed.Our company mainly produce welding equipment, hardware and electrical equipment, building decoration materials, welding equipment leasing, and so on.
Our products below:
Welding machines: mma, mig, tig welders
Cutting machines: air plasma cutter, flame cutting machine, and CNC cutters.
Welding & cutting accessories: welding torch, cutting torch, cutting nozzle, conductive nozzle, protective cover, diverter, earth cable, gas regulator, pipe, gas bottle, electrode oven, welding rod drying box, welding helmet, protection gloves and glasses.
Welding material: kinds of welding wires and welding rod
Industrial tools: Bosch power tools, beveling machines, other hand tools.
ower tools, beveling machines, other hand tools.
1.You can contact me through our website derectly.
2. Mobile phone:+86 15978151276
3.Skype : Bettymo330
4. WeChat : 2639219769
