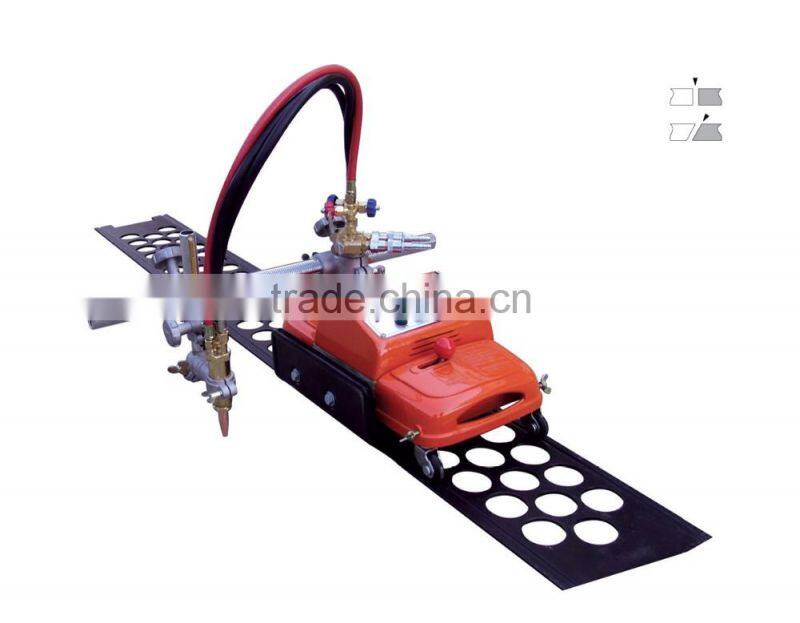

New Straight Line Gas Flame Cutter Machine

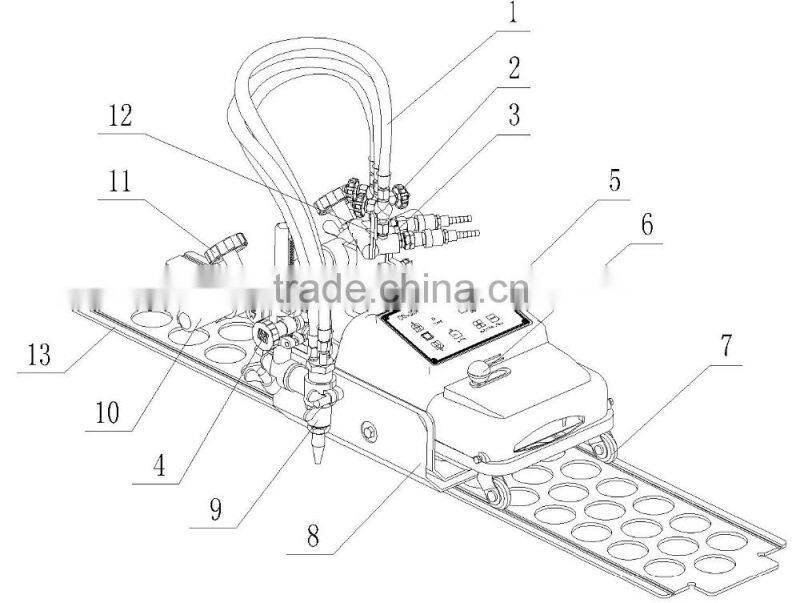

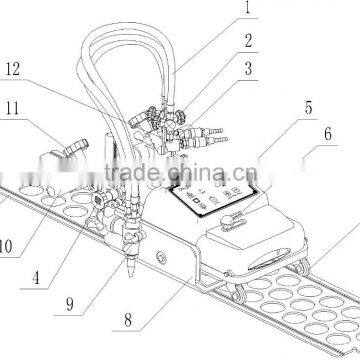

| 1 | Hose: Connect them between distributor and torch. The three hoses are used individually for fuel gas, preheating oxygen and cutting oxygen |
| 2 | Gas two-way valve: To adjust gas-flow rate |
| 3 | Gas distributor |
| 4 | Hand wheel: To adjust the up-down distance of torch by the wheel |
| 5 | Main machine |
| 6 | Clutch hand knob |
| 7 | Universal wheel |
| 8 | Thermal baffle: To prevent the heat diffusing into the inner of machine. |
| 9 | Torch body |
| 10 | Cross gear rack |
| 11 | Cross hand wheel: To adjust the horizontal distance of torch on cross bar |
| 12 | Fast switch knob: The knob is divided into three grapes: “close”, “preheating oxy gen” and “cutting”. It will close all the gas valves if the knob is on the “close” position |
| 13 | Guide rail: There are two types: convex wheel and concave wheel |
1.Weight |
:25.5 kilograms |
2. Machine dimension |
:430mm×230mm×280mm |
3. Speed control |
:Integrated circuit |
4. Power source |
:AC 220V 50HZ |
5. Cutting speed |
:50~750mm/min |
6. Cutting thickness |
:8-100mm |
7.Groove angle |
:0-45 degree |
8.Diameteral of cutting circle |
:ø200-ø2000mm |
9.Tip |
:G02 1#,2#,3# |
10.Motor |
:DC 110V 0.5A 30W 3600-4600r/min |
11.Convex guide rail |
:6Kg(2pc) |
12.Concave guide rail |
:8Kg 1.8m/pc or 11Kg 1.2m/2pc |
Packing:
After quality testing,our products will be well packed.
1 First wrapped by plastic film
2 Then fixed by EPE foam
3 Carton box outside
1. Body |
1 set |
2.Torch unit assemblage |
1 set |
3. Tip (acetylene) |
3 pcs each |
4. Gas-in connector (oxygen, acetylene) |
2 sets |
5. Moving unit assemblage |
1set(including left-right, up-down moving unit assemblage) |
6. Power cable |
1 pc |
7.Torch unit assemblage |
1 set |
8. Specification sheets and certificate of qualification |
1 pc each |
9.Cutting circle unit assemblage |
1 set |
10.Guide rail |
1 pc(convex wheel or concave wheel) |
Shipping :
1,We can arrange the shipping by Courier (DHL, UPS, Fedex, TNT etc.) by air or by sea for you.
2,Pls tell us which shipping way that you want and your detailed address, your nearest airport or seaport.
About us:
Nanning ChuanJun Welding Hardware Co., Ltd.founded in 2004,has been focused on welding equipment and accessory for more than 10 years. ChuanJun is member of the China Welding Association. Providing system services for enterprises needed.Our company mainly produce welding equipment, hardware and electrical equipment, building decoration materials, welding equipment leasing, and so on.
Our products below:
Welding machines: mma, mig, tig welders
Cutting machines: air plasma cutter, flame cutting machine, and CNC cutters.
Welding & cutting accessories: welding torch, cutting torch, cutting nozzle, conductive nozzle, protective cover, diverter, earth cable, gas regulator, pipe, gas bottle, electrode oven, welding rod drying box, welding helmet, protection gloves and glasses.
Welding material: kinds of welding wires and welding rod
Industrial tools: Bosch power tools, beveling machines, other hand tools.
ower tools, beveling machines, other hand tools.
1.You can contact me through our website derectly.
2. Mobile phone:+86 15978151276
3.Skype : Bettymo330
4. WeChat : 2639219769
