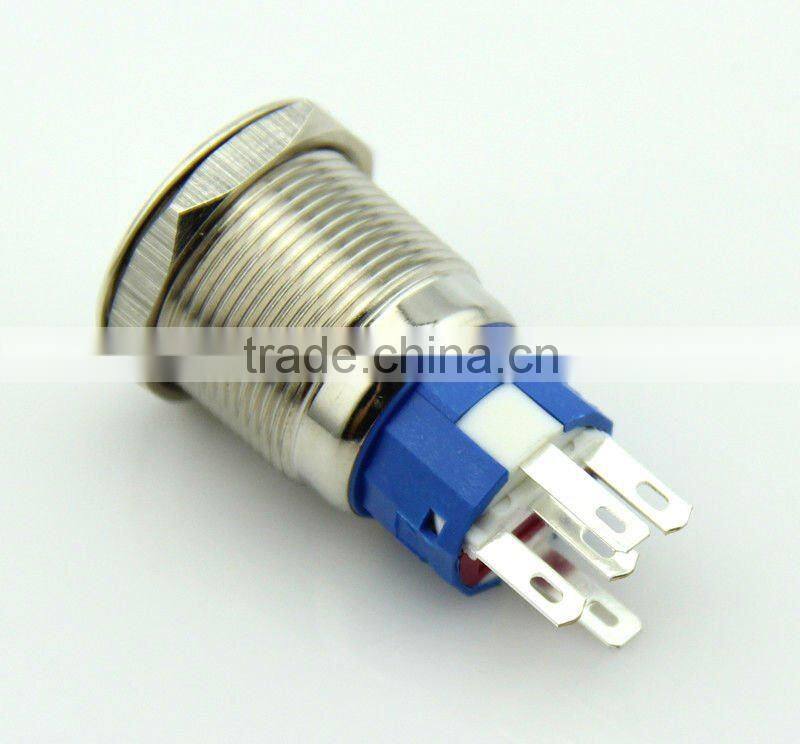

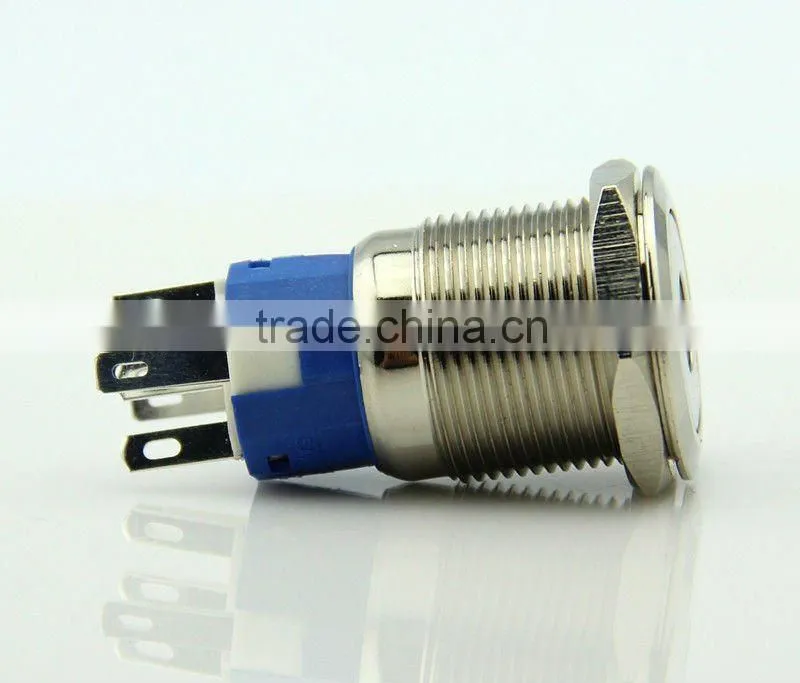

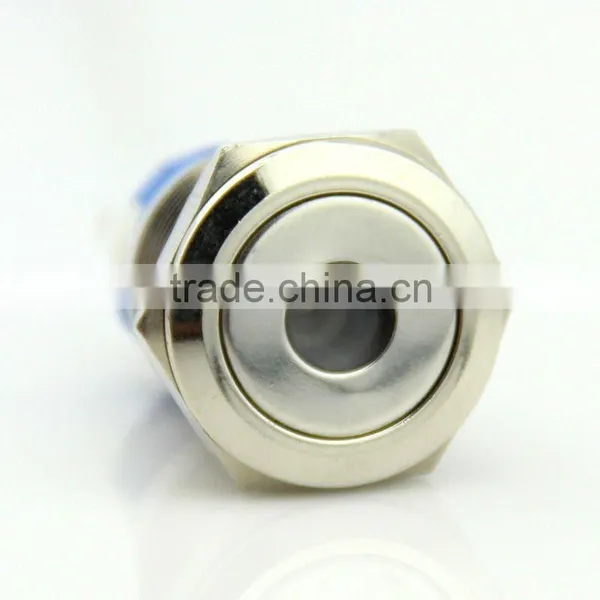

F0276 19mm LED metal push button switch latching

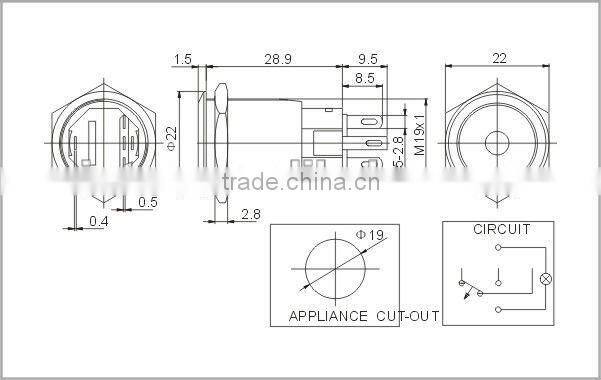

1 . 19mm diameter
2. Switch Rating : 5A/250VDC
3. Operation Type : latching
4. The Front Shape: Flat
5. The Crust Material: stainless steel/Brass
6. Contact Configuration: 1NO1NC
7. IP Degree: IP65
8.Contact Resistance: ≤50mΩ
9.Insulation Resistance: ≥1000MΩ
10.Dielectric Strength: 2000VAC
11.Operation temperature: -20°C ~ +55 °C
12.Mechanical life: 500,000 cycles
13.Electrical life: 50,000 cycles
14.Panel thichness: 1~10mm
15.Torque: 5~14Nm
16.Operation pressure: 3~5N
17.Contact material: Silver alloy
18.Button material: stainless steel
19.Crust material: stainless steel/Brass Nickel plated
20.Base: PBT
21. LED Rated voltage :6V/12V/24V/36V/220v
22. LED color :red green yellow orange blue white


- TNT: about 5-7 working days could reach your side normally
- EMS: need 10-15 working days to reach your side
- UPS: special express for North America,need 3-5 working days
- DHL: normally 3-5 working days could reach your side
- FEDEX: normally 3-10 working days could reach US and European

As a professional electronic components manufacturer, we have more than ten years production & service experience. In order to speed up customers development, we builded long terms firm cooperation with over 500 suitable & competitive manufacturer which are from Wenzhou, Dongguan, Shenzhen, Kunshan and so on, strict QC and effective communications is our daily duty; and which bring in stable goods supply and excellent services for our customers. We run the Quality Management systerms according to the ISO9001 also certificated by RoHS, SGS, UL, CE,etc.
Over the past ten years, INTEC has built a global sales network, and established long-term strategic partnership with clients in USA, European, South Africa, Pakistan, Ski Lanka, Malaysia, etc. Constantly seeking new opportunitied to partner with organizations that are looking to expand into new markets. These companies appreciate the advantages of partnering with INTEC.
If you are interested in any of our products, please feel free to visit our website or contact us directly for more information. We also welcome any customer design (OEM & ODM) or sample.
We look forward you!
- Company website: http://preview.china.cn/index.htm
- Company name: Cixi Intec Import And Export Co., Ltd.
- Company address: No. 202-206, Dafa Rd., Hushan, Cixi, Ningbo, Zhejiang, China (Mainland)
- Telephone: 0086-574-63023977

- As a comprehensive enterprise with an integration of R&D, design, production, we have highly effcient production line, advanced quality testing instruments, excellentproducts and packing
- Our company has passed the international quality system authentication of ISO9001.
- We enjoy a good reputation and sell productions to dozens of countries.
- We insist that quality and honesty come first.
- Anny will be very happy to answer your questions in 24 hours.
Q1:How to guarantee the Quality of Industrial Parts?
A1: We have the integrated system for industrial parts quality control. We have IQC (incoming quality control), IPQCS (in process quality control section), FQC (final quality control) and OQC (out-going quality control) to control each process of industrial parts prodution.
Q2:What's the Advantage of Your Parts for Industry Products?
A2:The advantage of our products is the competitive prices, fast delivery and high quality. Our employees are responsible-oriented, friendly-oriented,and dilient-oriented. Our products are featured by strict tolerance, smooth finish and long service time
Q3:what are our machining equipmengts?
A3:Our machining equipments include CNC milling machines, CNC turning machines, stamping machines,hobbing machines, automatic lathe machines, tapping machines, grinding machines, screw machines, cutting machines and so on.
Q4:How Long is the Delivery for Your Industrial Part?
A4:Generally speaking, it will take us 15 working days for machining parts and 25 working days for stamping parts products. But we will shorten our lead time as soon as possible according to customers' demands.
