F0278 19mm Metal Push Button Switch Latching
US$ 0.1 - 0.9
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
OEM
Model Number:
F0278
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo shanghai shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
12mm Pushbutton Switch With 8 Dots, 12mm Metal Pushbutton Switch With 8 Slots, 12mm Switch With 8 SpotsUS$ 1.6 - 2MOQ: 1 Piece -
The Connector With Wire for 25mm Metal Switch, LED Metal SwitchUS$ 0.1 - 10MOQ: 1 Piece
-
The Connector With Wire for 22mm Metal Switch, LED Metal SwitchUS$ 0.1 - 10MOQ: 1 Piece
-
The Connector With Wire for 19mm Metal Switch, LED Metal Pushbutton SwitchUS$ 0.1 - 10MOQ: 1 Piece
-
The Connector With the Wire for 16mm Metal Switch, LED and Momentary SwitchUS$ 0.1 - 10MOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
OEM
Model Number
F0278
Protection Level
IP67
Max. Current
3
Max. Voltage
250

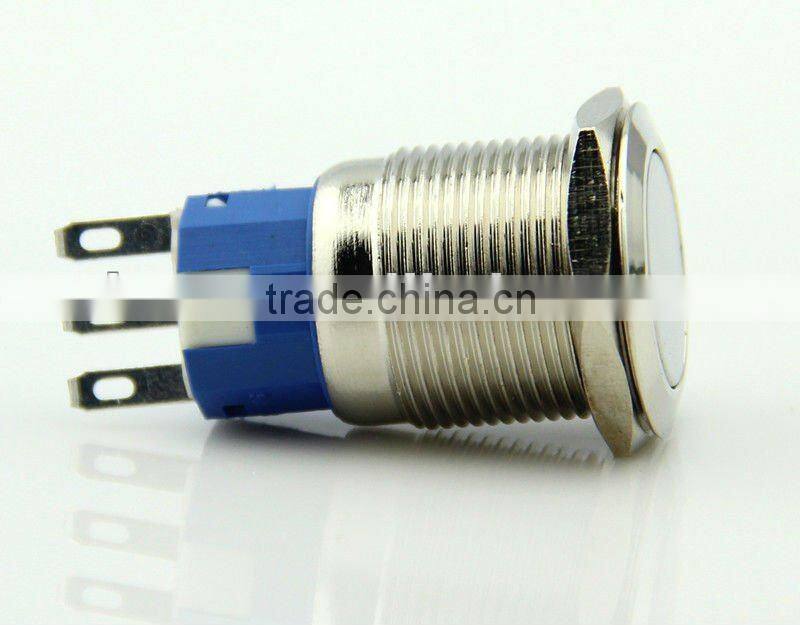

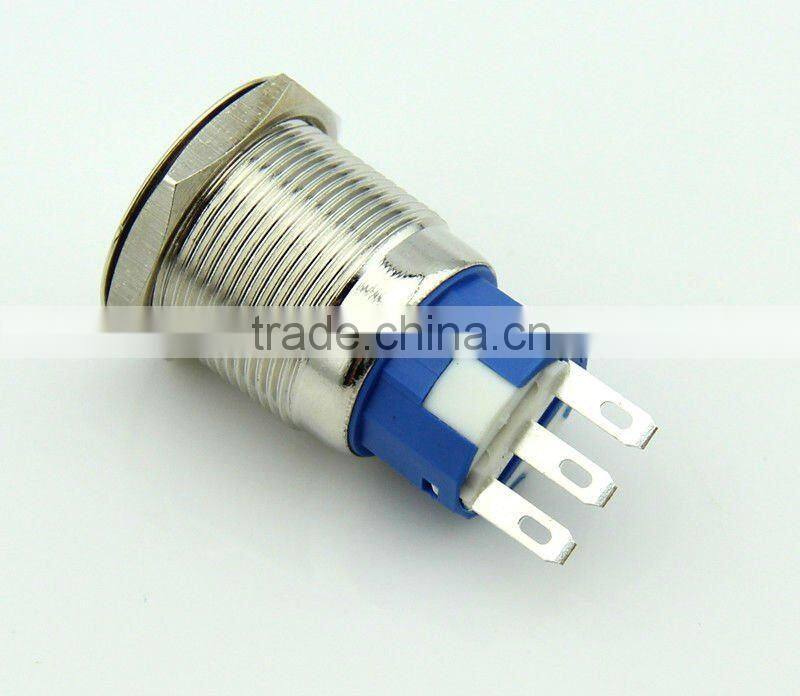

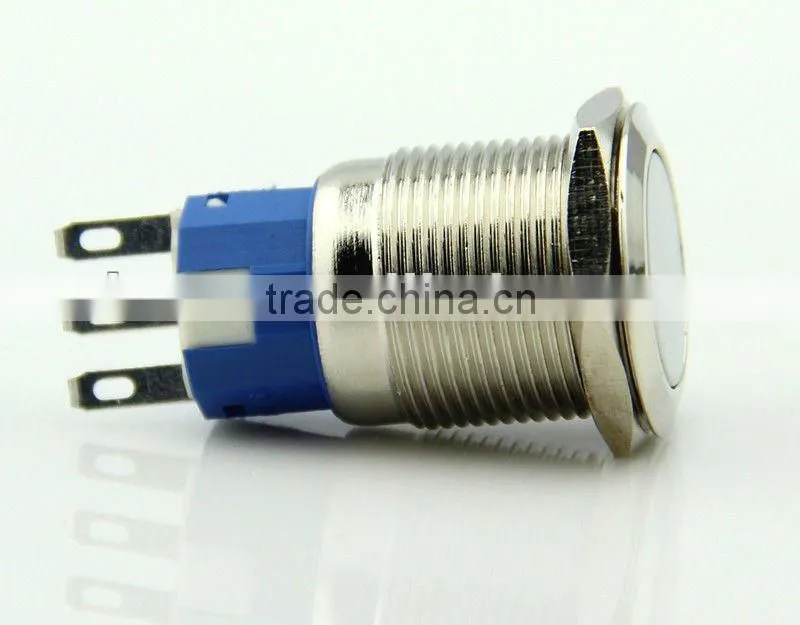

F0278 19mm metal push button switch latching
Parameter :
| Diameter: | 19mm |
| Switch Rating : | 3A/250VAC |
| Operation Type : | latching |
| The Front Shape: | Flat |
| The Crust Material: | stainless steel/Brass |
| Contact Configuration: | 1NO1NC/2NO2NC |
| IP Degree: | IP67,IK09 |
| Contact Resistance: | ≤50mΩ |
| Insulation Resistance: | ≥1000MΩ |
| Dielectric Strength: | 2000VAC |
| Operation temperature: | -20°C ~ +55°C |
| Mechanical life: | 500,000 cycles |
| Electrical life: | 50,000 cycles |
| Panel thichness: | 1~10mm |
| Torque: | 5~14Nm |
| Operation pressure: | about 2.5N |
| Contact material: | Silver alloy |
| Button material: | stainless steel |
| Crust material: | stainless steel/Brass |
| Base: | PA66 |
