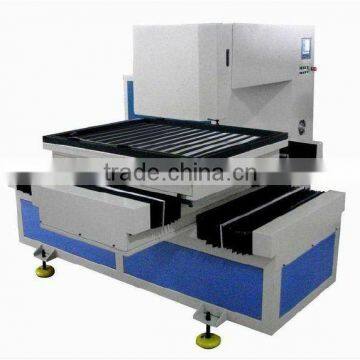

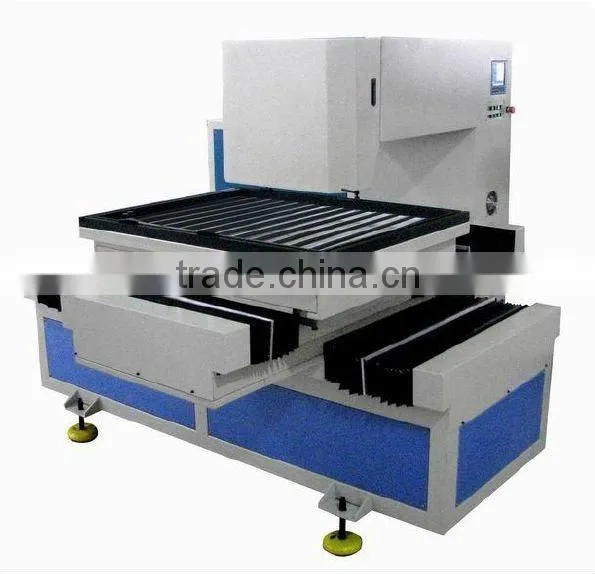

Laser YAG metal cutting machine G6080
Technical Specifications :
ITEM |
|
TECHNICAL SPECIFICATIONSU |
Model Name |
|
G6080 |
Travel Method |
|
Cross Slide Working table |
Control Method |
|
X, Y axis motorized controlled |
Travel Amount |
X-axis |
800mm |
|
Y-axis |
600mm |
|
Z-axis |
120mm (it's standard) customized by requirements |
Feed Rate |
X-axis |
2500mm/sP2P |
|
Y-axis |
2000mm/sP2P |
rapid speed |
X-axis |
800mm/s |
|
Y-axis |
600mm/s |
|
|
|
| ||
Maximum Worksheet Loading Capacity |
|
100kg |
Repeatability Positioning Accuracy |
|
0.01mm |
Least Command Increment |
|
0.002mm |
Drive Feed Method |
|
position control / AC servo motor |
Machine Table Height |
|
900mm |
Power Supply ( only for machine) |
|
380V 50HZ/ 3 Phases |
|
| ||
LASER OSCILLATOR |
|
|
Laser Oscillation Method |
|
Lamp pump YAG |
Laser Output |
Output (Rated) |
500W,650W |
|
Stability |
3% |
|
Frequency |
1-300HZ |
Output Beam |
Wavelength |
1064nm |
|
Mode |
multi mode |
|
Diameter |
0.1mm after focus |
|
| ||
CNC CONTROL UNIT |
|
|
CNC Unit |
|
Yaskawa AC servo motor |
CNC Control Method |
|
semi-close loop control |
Control Functions |
|
X, Ycontrolled (simultaneously controlled) |
Input Method |
|
USB, Net port, memory stick |
Least Input Increment |
|
0.002mm |
Minimum Position detection Accuracy |
|
0.002mm |
Program Storage Capacity |
|
128M flash memory in machine |
Operating Modes |
|
Windows xp support |
Display Function |
|
Cutting process |
| ||
I/O Interface |
|
RS232C |
Display |
|
5 inch screen display |
Applications :
Applicable material: brass, carbon steel, stainless steel, copper, titanium,aluminium and alloy etc.
Suits for metal sheet and tube cutting.
Manufacturing efficiency
§ Increased per part savings due to low fixture costs, high feed rates, and multi-axis capabilities.
§ Increased saving due to more efficient utilization of materials.
§ Improved yield, more parts per sheet with less scrap, due to the narrow kerf (cut) width that
increases the efficiency of part layouts.
§ Reduced expense and increased efficiency producing prototypes, small runs, and large runs since
there is no tooling involved.
§ Increased ability to react quickly to market pressures and produce small quantities maintaining
strong business relations.
§ Improved processing since multiple jobs can be combined and cut in a single batch.
§ Greatly reduced setup times since laser cutting service providers can have an entire part
programmed, set up, and cut out in the same time it takes to get one hole set up and punched out
on a typical punch press.
§ Improved accuracy, consistency, control, and flexibility.
§ Increased speed and higher cutter throughput in most circumstances.
§ Improved part cost competitiveness due to low fixture costs, high feed rates, multi-axis capability
and minimal downtime.
§ Reduced order filling times since laser cut components often require no edge cleaning, making
them ready for immediate shipment and end-user service.
Other benefits
§ Reduced inventory due to typical efficiency of production runs.
§ Improved part appearance since a laser's minimal Heat Affected Zone eliminates distortion.
§ Reduced employee/operator training and expertise since computer-controlled tools do not require
as a high a level of training or expertise providing easier hiring and possibly reducing payrolls.
§ Improved ability to react or adapt to changing production needs.
§ Decreased risk of injury compared to many mechanical cutting methods.
§ Decreased noise, translating to improved work environments.
Machine parts :
Samples showing:
Technical supports:
About Machines
1. We have the professional after-sale services teams. When you purchase a laser machine from our company, we will strongly suggest our customer send their engineer to our company to get a training free of charge;
If their engineer has the basic knowledge of Coreldraw/AutoCAD/Photoshop, the training will be going more smoothly, and it will only take three days .
2. In the training , we will teach them the general operation rule, maintenance method, and the solution of the general problems of the machines .
3. During the working process of the laser machine in customer side, if there is any very difficult problems which the customers don't know how to solve, we will provide the corresponding solution to customers via telephone or internet (such as e-mail, MSN , Skype) .
4. At the same, if the problems still can't be solved via telephone and internet , we will send our technical engineer to visit customer side to solve the problem directly according to the actual situation at that moment.
About Spare Parts
If the parts was broken during the guarantee period, we will provide a new parts free of charge ; If the parts was broken during the guarantee period is expired, customer can buy a new one from our company .
About Guarantee
The guarantee period of the laser machine is 1 year.
