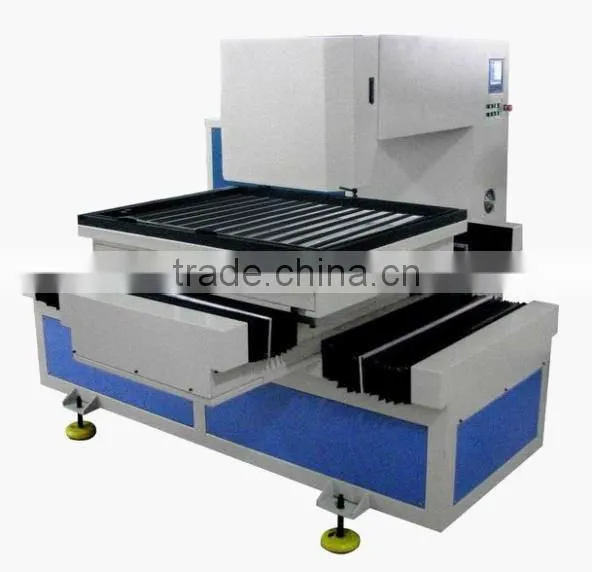

YAG Laser Machine G6080

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Laser Type	YAG		Place of Origin	Shandong, China
Brand Name	GRACE		Model Number	G6080

1. Cross Slide Working table
2.Yaskawa AC servo motor
3.semi-close loop control
4. CE certificate

1. Main Technical Parameters

ITEM		*TECHNICAL SPECIFICATIONS*
Model Name		G6080
Travel Method		Cross Slide Working table
Control Method		X, Y axis motorized controlled
Travel Amount	X-axis	800mm
	Y-axis	600mm
	Z-axis	120mm (it's standard) customized by requirements
Feed Rate	X-axis	2500mm/sP2P
	Y-axis	2000mm/sP2P
rapid speed	X-axis	800mm/s
	Y-axis	600mm/s


Maximum Worksheet Loading Capacity		100kg
Repeatability Positioning Accuracy		0.01mm
Least Command Increment		0.002mm
Drive Feed Method		position control / AC servo motor
Machine Table Height		900mm
Power Supply ( only for machine)		380V 50HZ/ 3 Phases

LASER OSCILLATORU
Laser Oscillation Method		Lamp pump YAG
Laser Output	Output (Rated)	500W,650W
	Stability	3%
	Frequency	1-300HZ
Output Beam	Wavelength	1064nm
	Mode	multi mode
	Diameter	0.1mm after focus

CNC CONTROL UNIT
CNC Unit		Yaskawa AC servo motor
CNC Control Method		semi-close loop control
Control Functions		X, Ycontrolled (simultaneously controlled)
Input Method		USB, Net port, memory stick
Least Input Increment		0.002mm
Minimum Position detection Accuracy		0.002mm
Program Storage Capacity		128M flash memory in machine
Operating Modes		Windows xp support
Display Function		Cutting process Position information Parameters design monitor

I/O Interface		RS232C
Display		5 inch screen display
