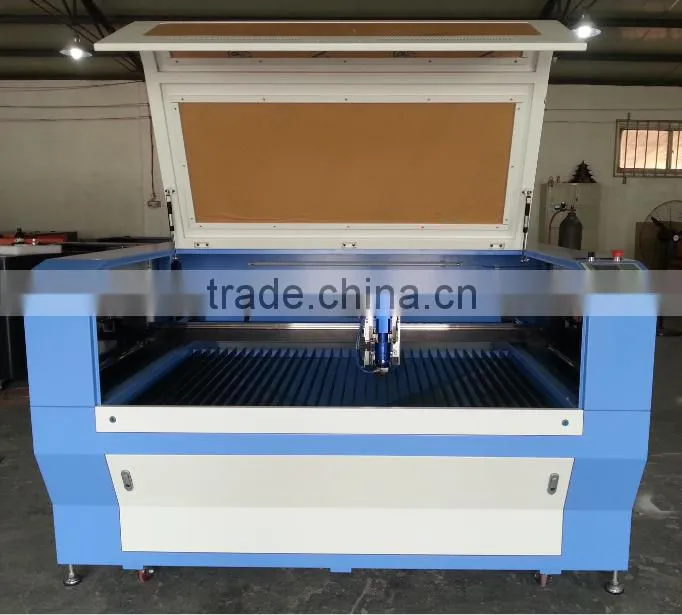

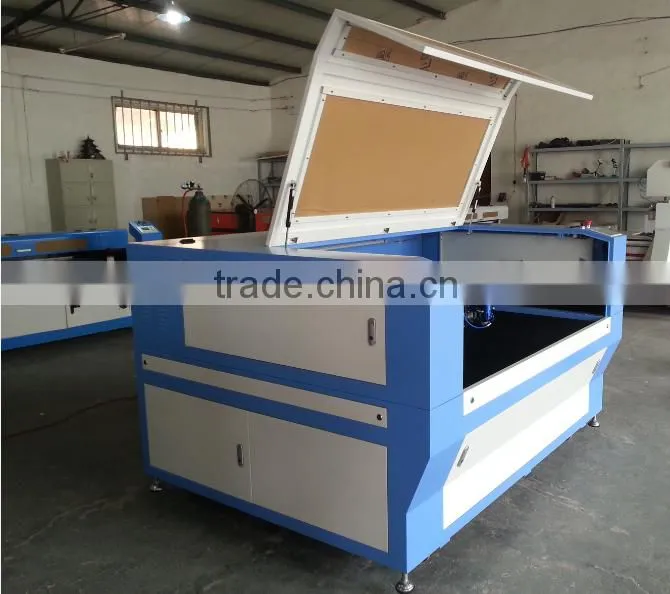

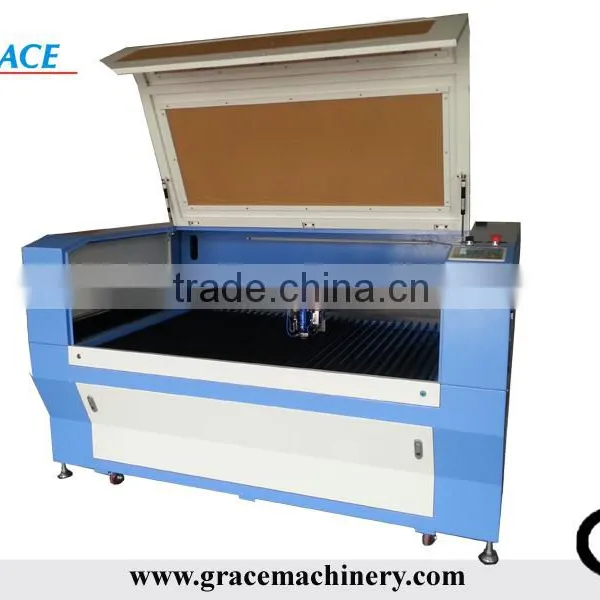

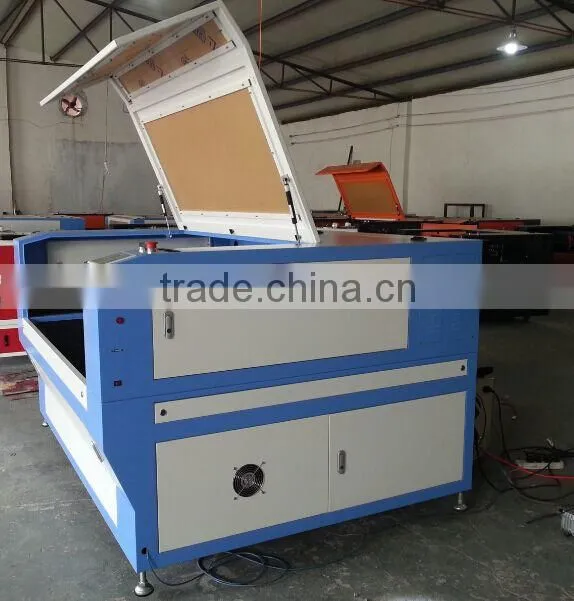

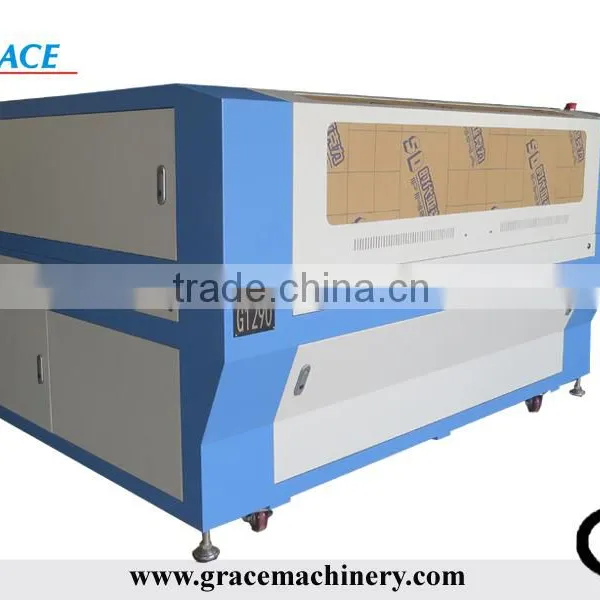

metal and nonmetal cutting laser machine (new design)
Working area: 1300x900mm (optional)
Power: 150w, 10000hours life span
Laser tube type: 8months
Control mode: USB interface
File export Software: Reader
Compatible file design software: Photoshop, Corel draw, AutoCAD, etc
Files Support:: bmp, plt, eps, poes, jpg, ai, tiff, dxf, dwg, cdr, tga, jpeg, DST etc.
Mechanical orbits: Famous brand Taiwan Hiwin square orbits, with high precision and long life time.
Motor and driver type: Step motors and step drivers
Cooling type: High power with compressor inside, CW5200 original chiller
Table type: (engraving and cutting) strip type table.
Focus: Auto focus function.
Red positioning function supported.
Technical Parameter:
Laser power : |
150W for metal and nonmetal cutting specially |
Laser type: |

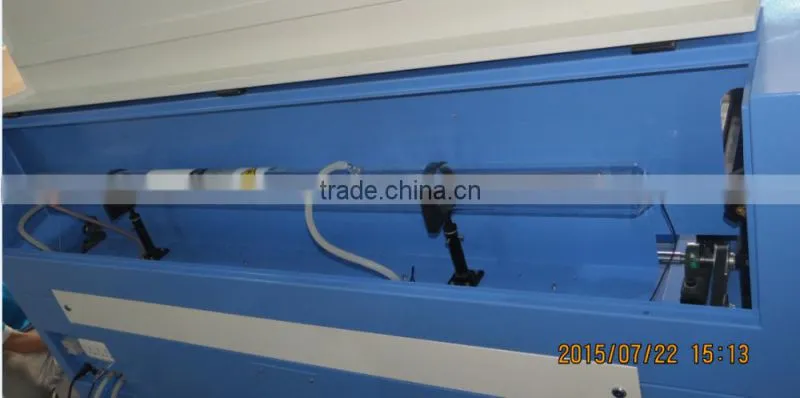

CO2 RECI brand glass tube |
Power supply: |
AC220±10, 50 HZ/ or AC110±10, 50 HZ |
Working area: |
1300mmx900mm |
Max moving speed: |
1500mm/s |
Worktable: |
strip type table for cutting and engraving |
Locating precision: |
<0.01mm |
Min shaping character: |
Character:3x3mm,letter:2x2mm |
Operating temperature: |
5°C-35°C |
Working humidity |
5%-95%(without condensed water) |
Resolution ratio: |
4500dpi |
Control configuration: |
Reader |
Data transfer interface: |
USB(offline) |
System environment: |
WINDOWS 2000/WINDOWS XP/ windows 7 |
Cooling way: |
Water cooling and protection system |
Graphic format supported: |
The file which CorelDraw, Photoshop, AutoCAD can identify (BMP,GIF,JPGE,PCX,TGA,TIFF,PLT,CDR,DMG,DXP,PAT, CDT,CLK,DEX,CSL,CMX,AI,WPG,WMF,EMF,CGM,SVG, SVGZ,PCT,FMV,GEM,CMX) etc. |
Compatible software |
CorelDraw, AutoCAD, Photoshop, laser cut software |
Cutting thickness |
0-30mm also (depends on different material) |
Color separation |
Separation of cutting up to 256 colors |
Sloping engraving |
Yes, slope can be designed discretionarily |
Cuts off the water supply the protection |
yes |
Whole machine dimension |
1460x1010x1070(mm) |
Gross weight |
450kgs |
packing |
Plywood case (veneer wood case for export) |
Optional parts |
1. Auto lifting table+rotary clamp 2. Servo motors and drivers for higher preicision. Note: Above are the main optionals, not all the machines can add above optionals, please contact us, we will give you suggestions, thanks. |

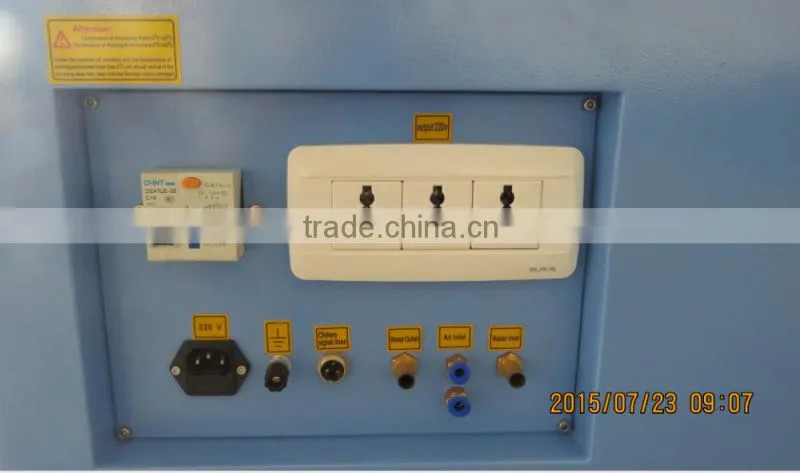

Connection board:

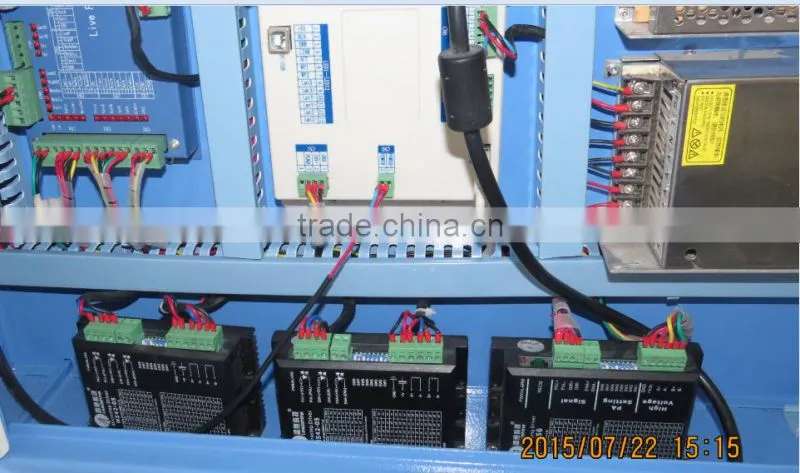

Control cabinet:
