Help CenterMetal and Nonmetal Cutting Laser Machine G1325
Related Products

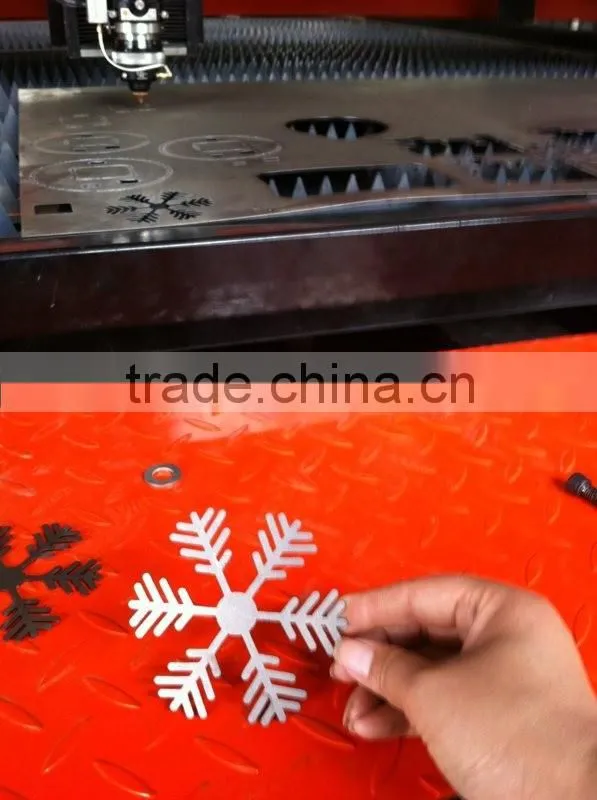

thin metal and nonmetal cutting laser machine, for thin stainless steel cutting, aluminum cutting, iron cutting, nonmetal materials cutting and engraving
Main Standard Features:
Working area:1600*1200mm
Laser tube type: Normal co2 laser tube, 8000-10000 hours working life time, guarantee period is 8 months
Control mode: USB interface
File export Software: Top wisdom
Compatible file design software: Photoshop, Corel draw, AutoCAD, etc
Mechanical orbits: Taiwan brand orbits, with high precision and long life time.
Motor and driver type: Step motors and step drivers
Cooling type: chiller
360 degree slope engrave: Support
Technical Parameter:
Laser power : |
130W (optional) |
Laser type: |
CO2 glass tube |
Power supply: |
AC220±10, 50 HZ/ or AC110±10, 50 HZ |
Working area: |
1600*1200mm |
Max moving speed: |
1500mm/s |
Worktable: |
Honey comb worktable (mainly engraving and small pieces cutting) /aluminum knife (engraving and cutting) /normal table (engraving) (optional) |
Locating precision: |
<0.01mm |
Min shaping character: |
Character:3x3mm,letter:2x2mm |
Operating temperature: |
5°C-35°C |
Working humidity |
5%-95%(without condensed water) |
Resolution ratio: |
4500dpi |
Control configuration: |
Top wisdom |
Data transfer interface: |
USB(offline) |
System environment: |
WINDOWS 2000/WINDOWS XP/ windows 7 |
Cooling way: |
Water cooling and protection system |
Graphic format supported: |
The file which CorelDraw, Photoshop, AutoCAD can identify (BMP,GIF,JPGE,PCX,TGA,TIFF,PLT,CDR,DMG,DXP,PAT, CDT,CLK,DEX,CSL,CMX,AI,WPG,WMF,EMF,CGM,SVG, SVGZ,PCT,FMV,GEM,CMX) etc. |
Compatible software |
CorelDraw, AutoCAD, Photoshop, laser cut software |
Cutting thickness |
0-20mm also (depends on different material) |
Color separation |
Separation of cutting up to 256 colors |
Sloping engraving |
Yes, slope can be designed discretionarily |
Cuts off the water supply the protection |
yes |
Whole machine dimension |
1750*1450*1100mm |
Gross weight |
500kgs |
packing |
Plywood case (veneer wood case for export) |
Optional parts |
1. RECI type laser tube (8000-10000 hours life time) 2. Bigger power tubes (100w, 130w, 150w etc) 3. High-grade cooling system (from 100w or bigger than 100w better to choose this) 4. double-head or more heads 5. Cylinder rotary clamp (for cylinder materials working. Like cup, pen, bottles etc) 6. irregular rotary clamp 7. servo motor 8. Red pointer 9. Ball screw transfer 10. Auto feeding system etc. Note: Above are the main optionals, not all the machines can add above optionals, please contact us, we will give you suggestions, thanks |
Application Sample photos:

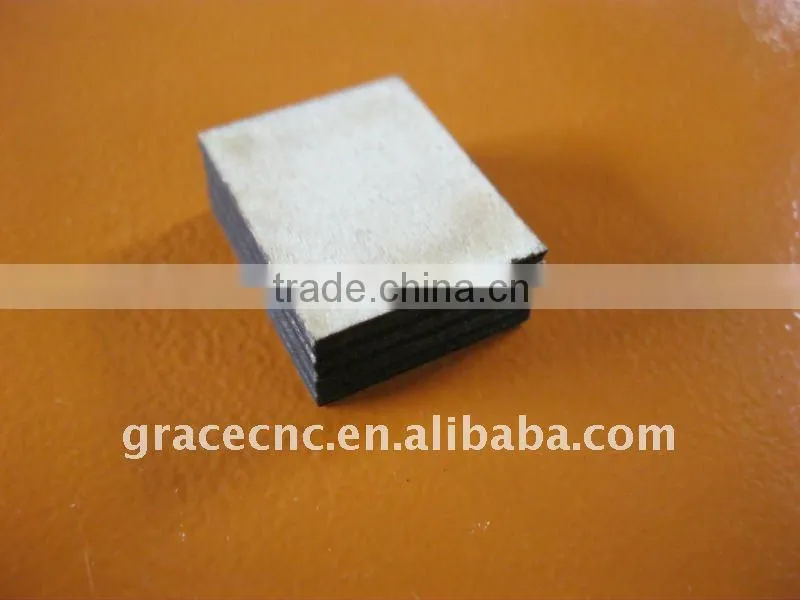

wood cutting: Leather cutting:

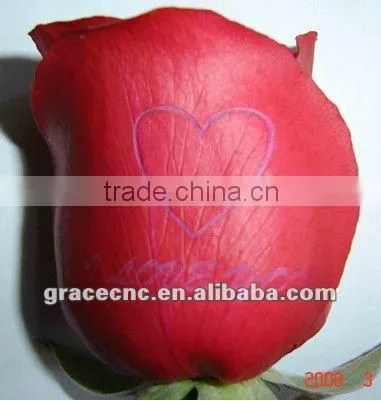

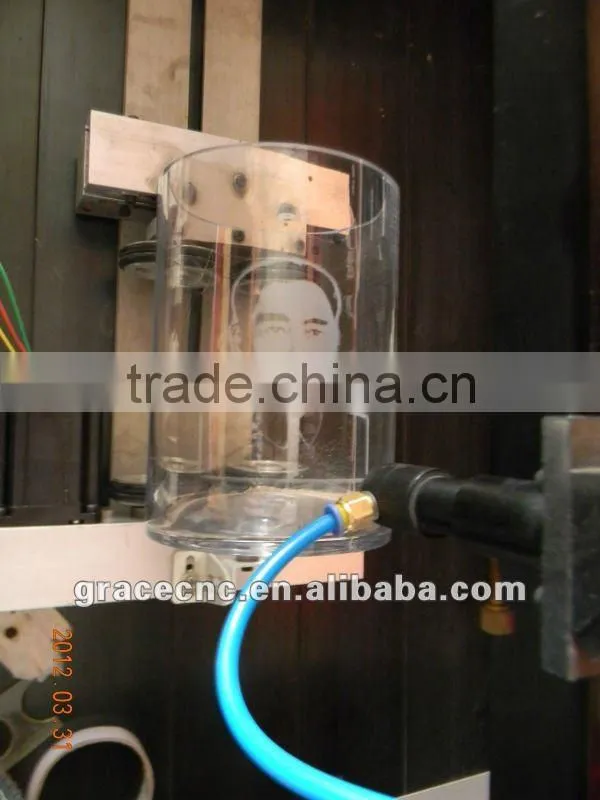

Roes engraving also can cutting: Glass cup engraving:

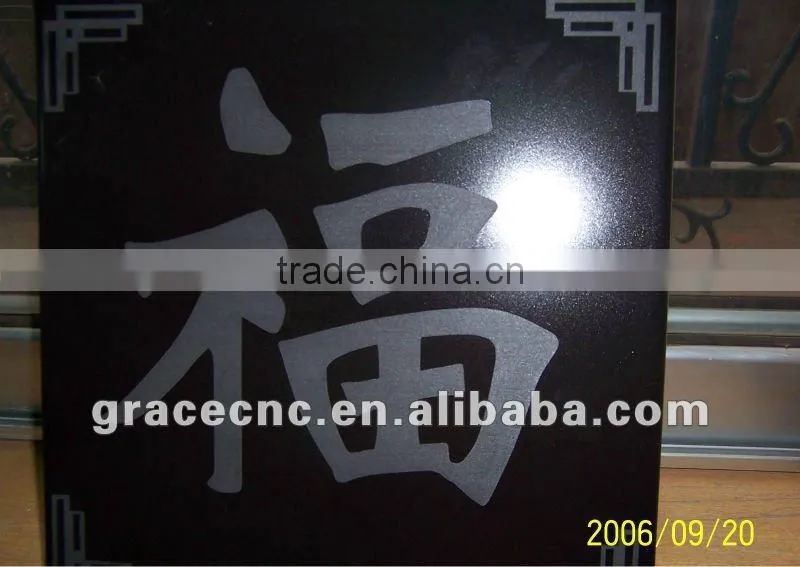

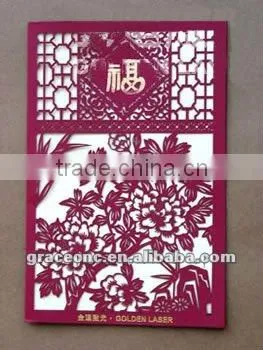

Marble engraving: Paper cutting:
If you want to see other materials samples, please feel free to contact me, we will send more details to you soon.

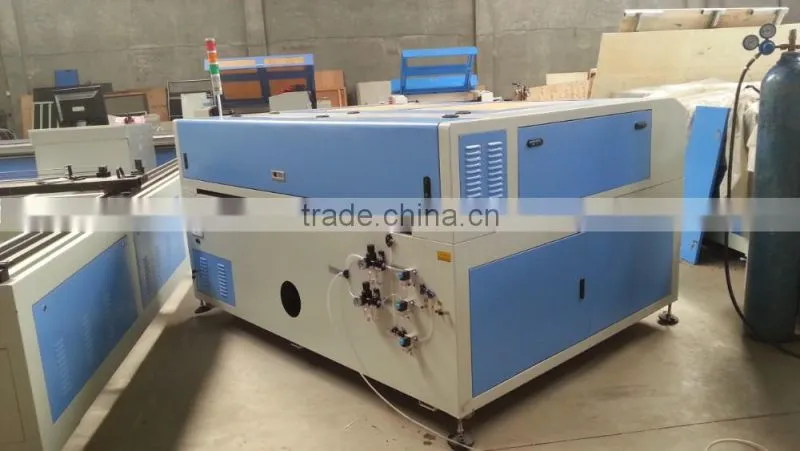

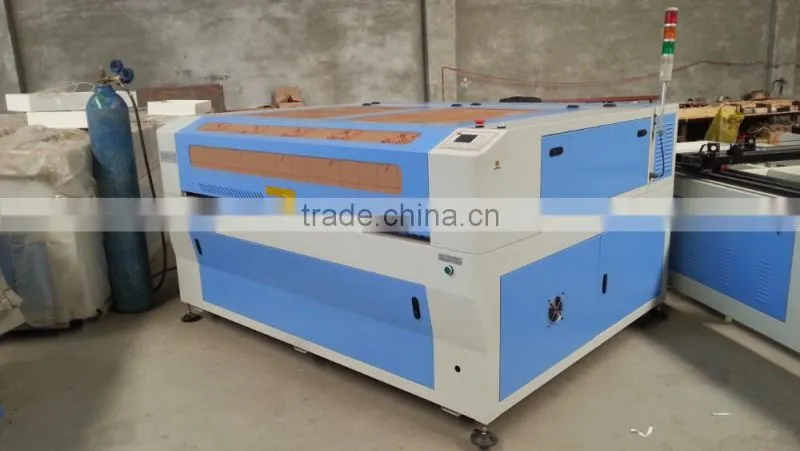

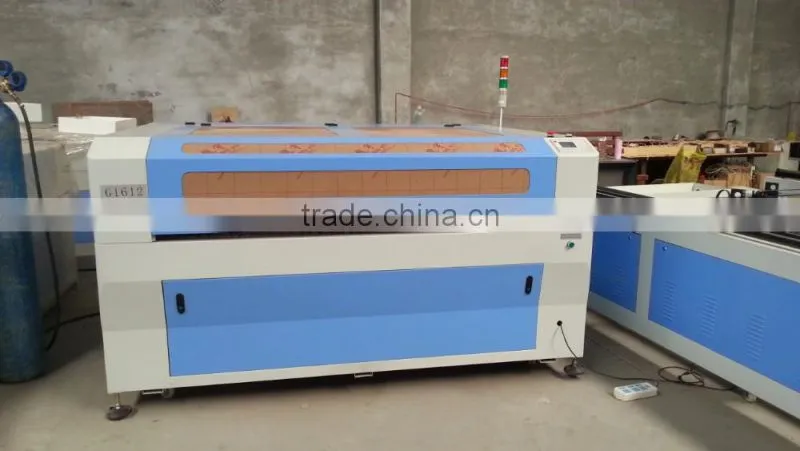

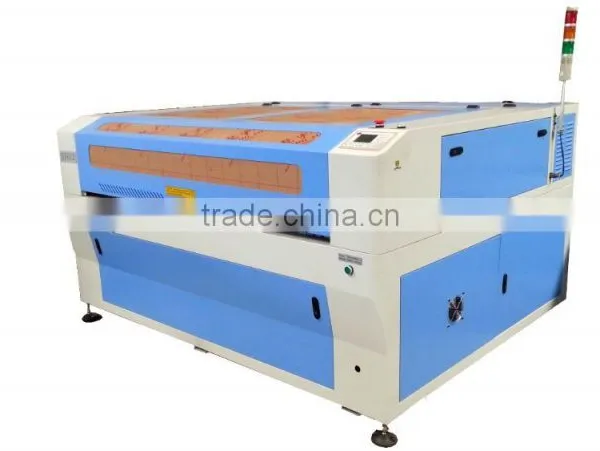

More machine photos:
