Help Center1.5mm SS Metal Laser Cutter
Related Products
Product features:
Working area: 1300x2500mm
Power: 150w RECI
Laser tube type: 8000-10000 hours working life time
Control mode: USB interface
File export Software: READER
Compatible file design software: Photoshop, Corel draw, AutoCAD, etc
Files Support:: bmp, plt, eps, poes, jpg, ai, tiff, dxf, dwg, cdr, tga, jpeg, DST etc.
Mechanical orbits: Taiwan brand orbits, with high precision and long life time.
Motor and driver type: Step motors and step drivers
Cooling type: chiller cw5200
Table type: (engraving and cutting) strip type table.
360 degree slope engrave: Support
laser engraving machine application:
Applicable materials: 1.5mm SS and steel sheet, wood, bamboo, organic glass, crystal, plastic, garments,
paper, leather, rubber, ceramic, glass and other nonmetal materials
Applicable industries: manufacturing, Auto parts, advertisement, gift, shoes, toys, computers, garments,
model cutting, building, packaging, paper industry
laser engraving machine specifications:
Laser power : |
150W (optional) |
Laser tube type: |
CO2 glass tube |
Power supply: |
AC220±10, 50 HZ/ or AC110±10, 50 HZ |
Cooling way: |
Water cooled with protection system |
Working area: |
1300mmx2500mm |
Max travel speed: |
60000mm/min |
Worktable: |
Knife table for cutting, option: Honey comb worktable (mainly engraving and small pieces cutting) |
Locating precision: |
<0.01mm |
Min shaping character: |
Character:2mm,letter:<1mm |
Operating temperature: |
5°C-35°C |
Working humidity |
5%-95%(without condensed water) |
Resolution ratio: |
4500dpi |
Control configuration: |
READER |
Data transfer interface: |
USB(offline) |
System environment: |
WINDOWS 2000/WINDOWS XP/ windows 7 |
Graphic format supported: |
The file which CorelDraw, Photoshop, AutoCAD can identify (BMP,GIF,JPGE,PCX,TGA,TIFF,PLT,CDR,DMG,DXP,PAT,CDT, CLK,DEX,CSL,CMX,AI,WPG,WMF,EMF,CGM,SVG,SVGZ,PCT, FMV,GEM,CMX) etc. |
Compatible software |
CorelDraw, AutoCAD, Photoshop, laser cut software |
Cutting thickness |
0-20mm also (depends on different material) |
Color separation |
Separation of cutting up to 256 colors |
Sloping engraving |
Yes, slope can be designed discretionarily |
Cuts off the water supply the protection |
yes |
Whole machine dimension |
3350x2100x1400(mm) |
Gross weight |
550kgs |
packing |
Plywood case (veneer wood case for export) |
Optional parts |
1. smaller power tubes (80w,100w, 130w etc) 2. double-head or more heads 3. Cylinder rotary clamp (for cylinder materials working. Like cup, pen, bottles etc) 4. servo motor 5. Ball screw transfer 6. Auto feeding system etc. Note: Above are the main optionals, not all the machines can add above optionals, please contact us, we will give you suggestions, thanks. |
laser Samples and industries application:

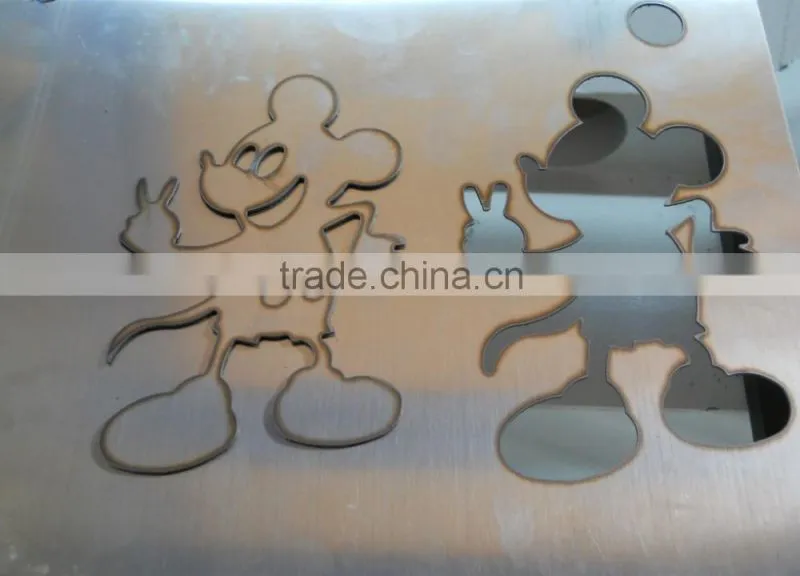

ss cutting:
Nonmetal materials cutting:

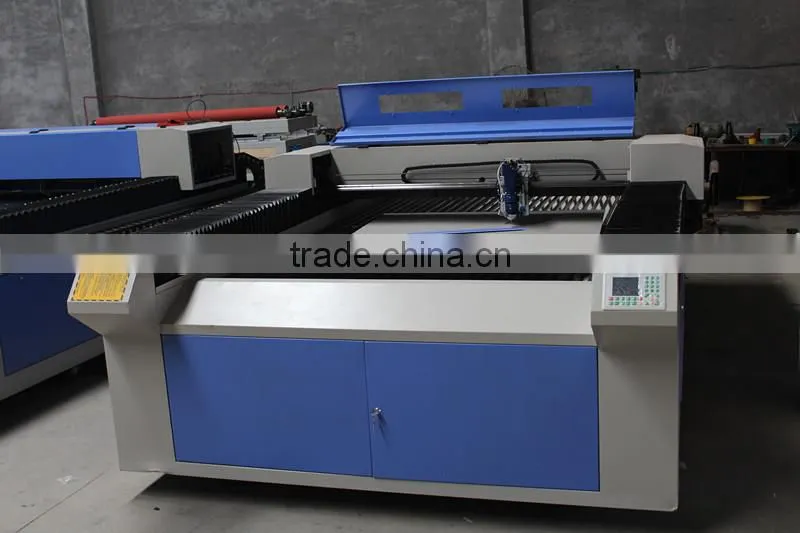

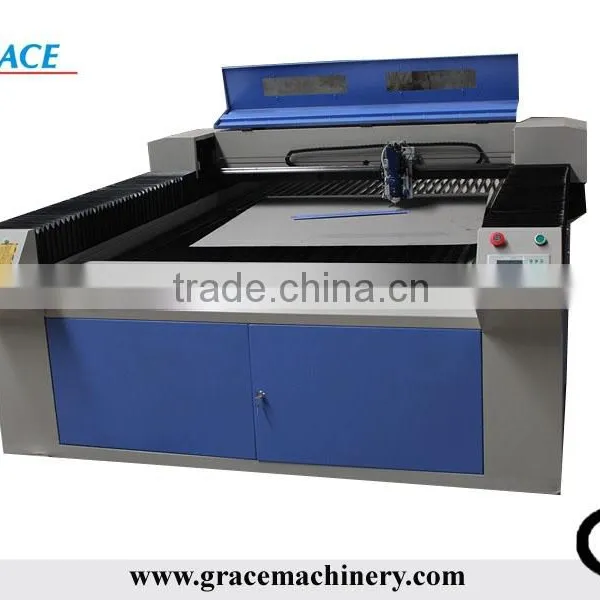

Machine photos:
Some parts special for 1.5mm ss cutting:
Pacakge:
Main accessories included:
1) 1*Air pump (blowing dust during work)
2) 1*Exhaust fan with Tube clips (heat radiation and smoke extraction)
3) 1*chiller5200 (used for bigger power tube cooling)
4) 1*USB Cable (connecting PC and machine)
5) 1*CD or electronic documents (including software, user manual, guiding videos etc)
6) 2*Power cables
7) 1*Tool box (for routine maintenance)
Packaging: Standard export wooden case
Shipping: By sea.
Customer feedback:
1. The laser tube of normal tube is 3 months, RECi tube is 8 months.
2. The other parts of machines are all one year.
3. Technical service is whole life time of the machine
After service:
1. To reply your question or solve problem: within 24 hours, whatever online via chatting tools like: MSN, YAHOO MESSENGER, SKYPE etc, by email or by telephone.
2. Machine will offer installation vedio, operation vedio, manual.
