G1390 80W CNC Laser Machine
Machine Application:
This co2 laser engraving and cutting machine can engrave and cut on all kinds of nonmetallic materials,
materials like wood, leather, acrylic, rubber, fabric, paper, bamboo etc. It’s widely used in many industries,
like gift making, sign making, advertising, cloth manufacturing, stamp making, building, computer etc.
Difference with other manufacturers:
Thick steel structure, unique design of shape, long life time tube using, customer good feedback control system,
never bad feedback of cutting or engraving precision from customers. If any parts broken by wrong operation we all pay
for our side delivery charge of parts whatever in guarantee period or exceed guarantee period.
Consumable parts:
Laser tube (life time is 8000-10000 hours)
Lens (one machine there are totally 3 reflect lenses and 1 focus lens)
Main features:
Working area: 1300x900mm
Power: 80w
Laser tube type: 8000-10000hours, guarantee period is 8 months
Control mode: USB interface
File export Software: DSP5.3/Topwisdom/ Reader
Compatible file design software: Photoshop, Corel draw, AutoCAD, etc
Files Support:: bmp, plt, eps, pes, jpg, ai etc.
Mechanical orbits: Taiwan brand orbits, with high precision and long life time.
Motor and driver type: Step motors and step drivers
Cooling type: Water pump/ chiller
Table type: Honeycomb table or strip table
These features above is our standard features, it’s stable and good for work yet, if need more functions or request, please
check below from optional item.
Optional:
1. Motorized up and down platform table (feeding height can reach to 40cm around, normal table is 2cm around)
2. Rotary clamp+ motorized up and down platform table (for cylinder materials working, like pencil, cup, bottle etc)
3. double heads or more heads
4. servo motors and drivers imported from Japan
5. bigger power tube
Parameters:
Laser power : |
80W |
Laser type: |
CO2 glass tube |
Power supply: |
AC220±10, 50 HZ/ or AC110±10, 50 HZ |
Working area: |
1300mmx900mm |
Max moving speed: |
1500mm/s |
Worktable: |
Honey comb worktable (mainly engraving and small pieces cutting) /strip type table (engraving and cutting) /normal table (engraving) (optional) |
Locating precision: |
<0.01mm |
Min shaping character: |
Character:3x3mm,letter:2x2mm |
Operating temperature: |
5°C-35°C |
Working humidity |
5%-95%(without condensed water) |
Resolution ratio: |
4500dpi |
Control configuration: |
DSP5.3 /Top wisdom/ Reader |
Data transfer interface: |
USB(offline) |
System environment: |
WINDOWS 2000/WINDOWS XP/ windows 7 |
Cooling way: |
Water cooling and protection system |
Graphic format supported: |
The file which CorelDraw, Photoshop, AutoCAD can identify(BMP,GIF,JPGE,PCX,TGA,TIFF,PLT,CDR,DMG,DXP,PAT,CDT,CLK,DEX,CSL, CMX,AI,WPG,WMF,EMF,CGM,SVG,SVGZ,PCT,FMV,GEM,CMX) etc. |
Compatible software |
CorelDraw, AutoCAD, Photoshop, laser cut software |
Cutting thickness |
0-20mm also (depends on different material) |
Color separation |
Separation of cutting up to 256 colors |
Sloping engraving |
Yes, slope can be designed discretionarily |
Cuts off the water supply the protection |
yes |
Whole machine dimension |
1870x1300x1150(mm) |
Gross weight |
450kgs |
packing |
Plywood case (veneer wood case for export) |

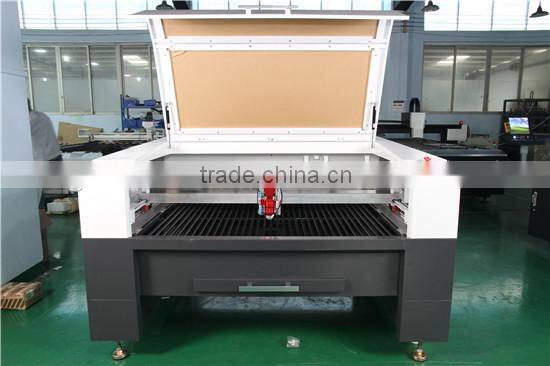

machine photos:
samples:
Certificate:
Customer feedback:
