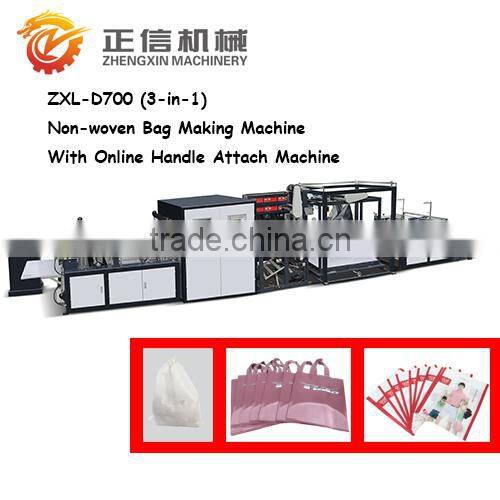

Model:ZXL-D700

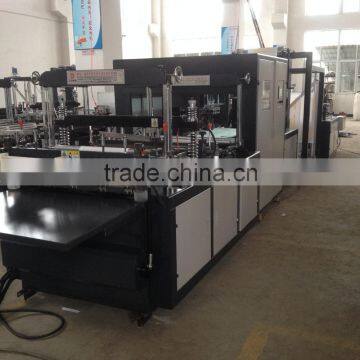

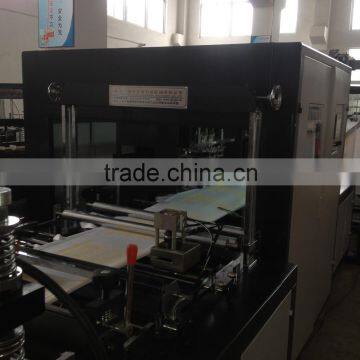

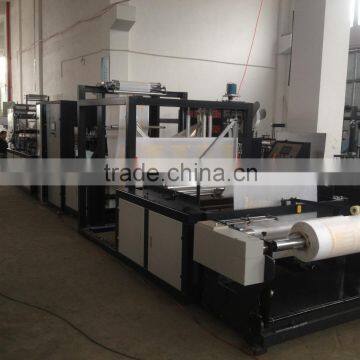

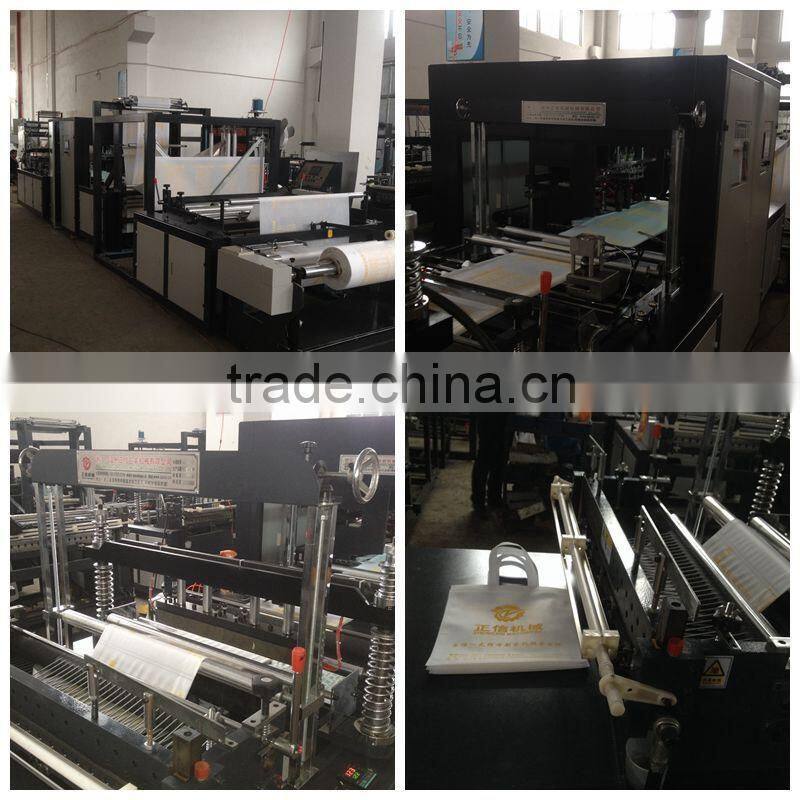

Name:Non-woven Bag making Machine with Online handle sealing machine

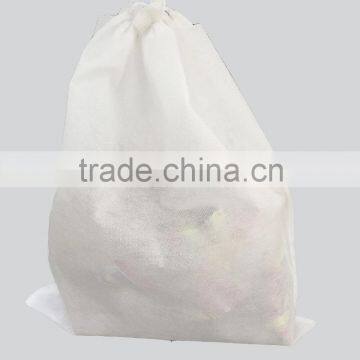

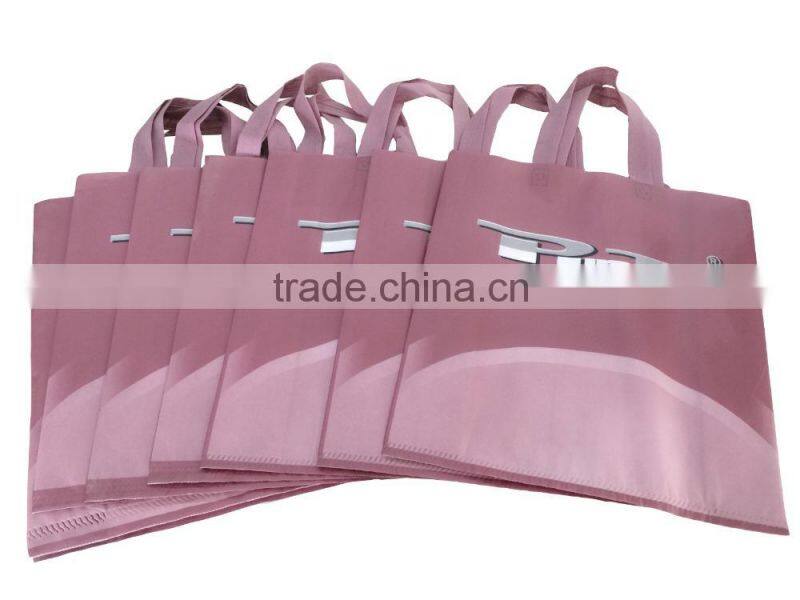

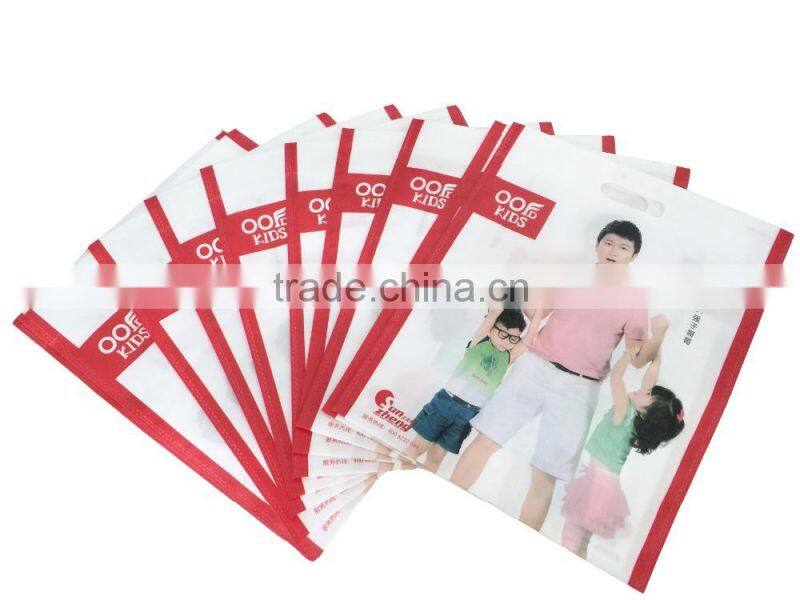

Product:flat ft handle bag,vest bag

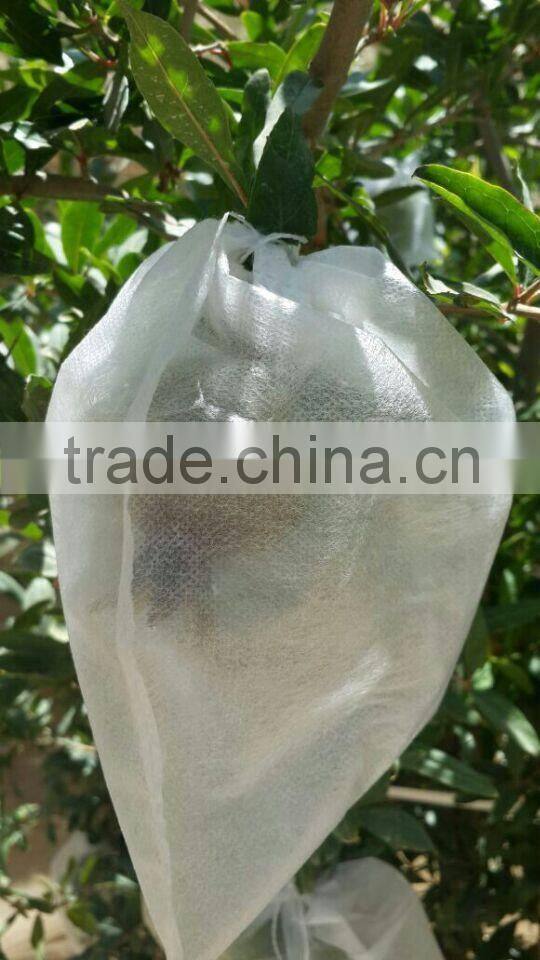

This machine adopts mechanical,electrical,optical and pneumatic integration technology.It is a advanced equipment and has the function of automatic handle loop bonding(speed up to 75pcs/min,equal to 5 worker's bonding speed or 5 handle loop bonding machine),suitable for producing different specs and shapes of non-woven fabric bags(hand bags,flat bag,and drawstring bag etc.)Which can replace the traditional handle-sealing,reduce labor and manufacturing cost,vast apply to the packing of costume,shoes,wine,gift etc.
♦We design and develop this machine according to many customer's feedback,as our latest design,it's features elegancy and high efficiency.
♦Compare to the old generations,this machine could largely save spave,labor and your production time.
♦Adopts top brand electricity,optical and pneumatic components,features reliable,long working life and easy maintenance.
♦All the bags adopts thermal bonding by ultrasonic welding(Taiwan top brand ultrasonic device),features strong sealing effective,high speed,tidy and environmental friendly.
♦With experienced engineers and well-trained technical workers and continuous innovation and reform,ensure our machine's quality and mechanical stability.
♦Equipped with auto loading device,Taiwan touch screen,computer control,auto feeding,counting and stopping,easy to operate,one or two person can handle it easily.
♦With CE certification and ISO9001 certification.
| Model | ZXL-D700 |
| Bag width | 100-800mm |
| Bag Length | 200-600mm |
| Bag Material Basis Weight (Thickness) | 35-100g/m2 |
| Handle loop Lenght | 380-600mm |
| Handle material Basis Weight(Thickness) | 60-100g/m2 |
| Production speed | 20-120pcs/min |
| Handle bonding speed | 30-75pcs/min |
| Power supply | 380V/220V |
| Total Power | 15KW |
| Overall Dimension | 9600*2600*2100mm |
| Weight | 2500mm |
♦ This machine adopts top brand PLC touch screen,which can be edited;
♦ Auto counting and stopping when setting number freely;
♦ High voltage static processor and auto constant temperature heating controller;
♦ Equipped with stepping motor (computer fixed length),manual unwinding magnetic powder tension controller,photoelectric tracking,printing color mark track orientation,auto counting and alarming,auto punching and auto bonding handle etc..which make it accurate and stable,firm sealing and beautiful products.
♦ All of the bags adopts thermal bonding by ultrasonic welding,such as bag mouth folding,side sealing etc.,which makes the machine fast and easy to operate.
♦ The vest bag automatic punching machine is optional when do the vest bags.
