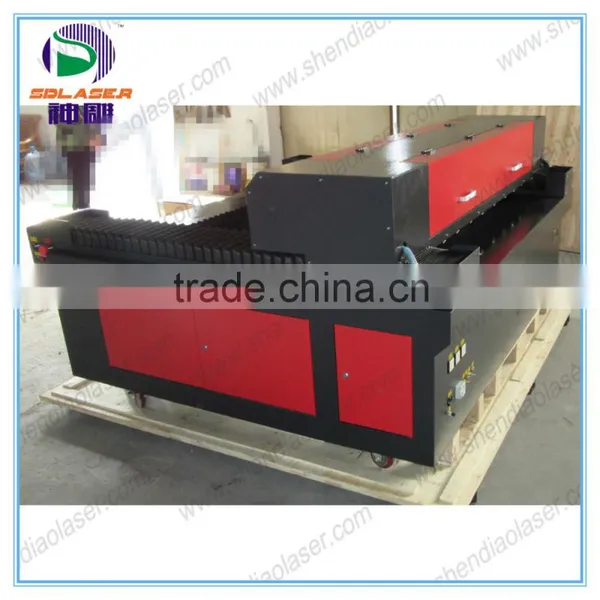

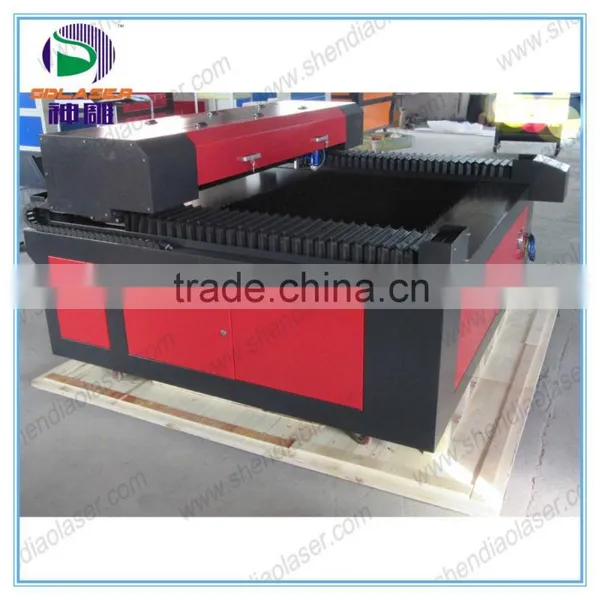

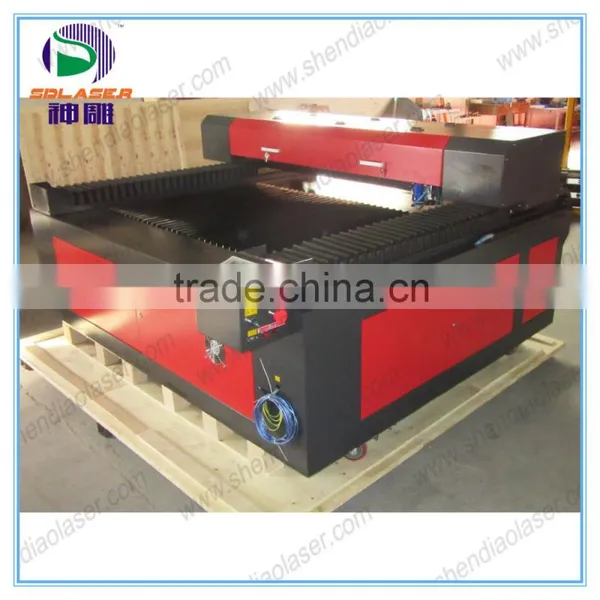

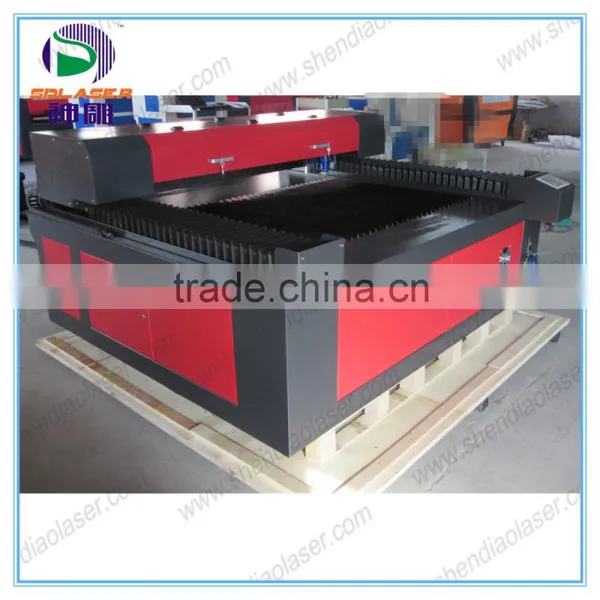

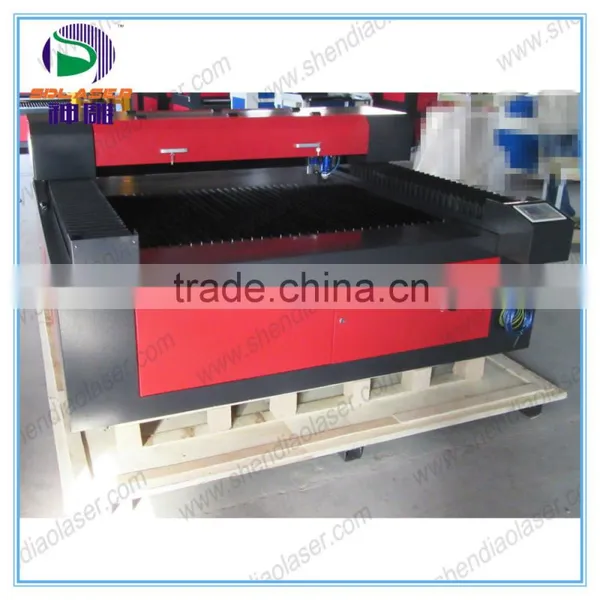

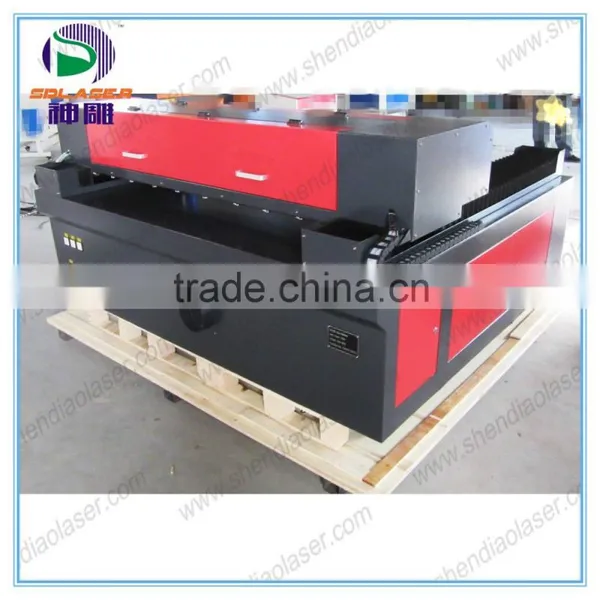

SD-1390 aluminum alloy phone housing engraving machine
Different machine working area :
| Machine model | Working area(mm) |
| SD-5030 | 500mm*300mm |
| SD-6040 | 600mm*400mm |
| SD-9060 | 900mm*600mm |
| SD-1290 | 1200mm*900mm |
| SD-1390 | 1300mm*900mm |
| SD-1410 | 1400mm*1000mm |
| SD-1325 | 1300mm*2500mm |
| SD-1630 | 1600mm*3000mm |
we can manufacture machines that can meet the customers' requirements.
SD Laser --- Advantages and service we supply
♦ 1×CO2 laser engraving machine
♦ 1×Air Pump for Air Assist (for blowing off debris as the laser engrave or cut)
♦ 1×Air Exhaust Fan with Tube ducts
♦ 1×Water Chiller
♦ 1×USB Cable (connecting PC and laser)
♦ 1×DVD (Including software, User manual, Guiding videos etc.)
♦ 1×Laser Tube,
♦ 3×Reflecting Mirrors
♦ 1×Focusing Len
Features:
Machine features:
1) Adopts new type materials belt modules, high precision and little wear,extend the life of the mechanical moving parts.
2) lsolate between laser tube and working, guarantee the laser tube safely and make the light path clean.
3) All switches, sockets and fast connection are not jut out of the surface of the machine, guarantee the people's safety.
4) Adopting imported ball screw and Taiwan linear guide rail,the machine works faster with higher accurary.
5) Independent control cabinet with protective circuit increases the machine's property of anti-interference effectively.
Applicable Materials&Industries:
Apply to furniture making industry, electronic component, cooling and ventilation pipe, acrylic, wood planks, bamboo ware, cold platens scutcheon, non-metal processing industries.
technical parameters:
Laser type |
Sealed CO2 laser tube |
Laser power |
60W,80W,100W,130W,150W,200W (optional) |
Engraving area |
1300×900mm |
Engraving speed |
0-60,000mm/min |
Resetting position accuracy |
±0.01mm |
Working voltage |
AC110-220V ±10%.50-60HZ |
Power |
<1,000W |
Operating temperature |
0-45°C |
Operating humidity |
5-95% |
Minimum shaping character |
English 1×1mm |
Graphic format supported |
BMP, PLT,DST, DXF,and AI |
Driving system |
Stepper |
Cooling mode |
Water-cooling and protection system |
Auxiliary equipment |
Exhaust-fan, air-exhaust pipe |
Controlling software |
DSP control system |
Compatible software |
Coreldraw auto CAD photoshop |

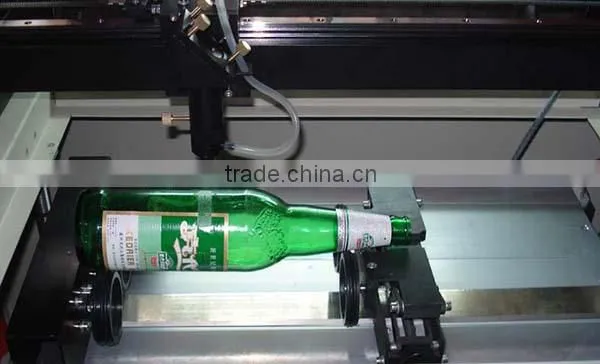

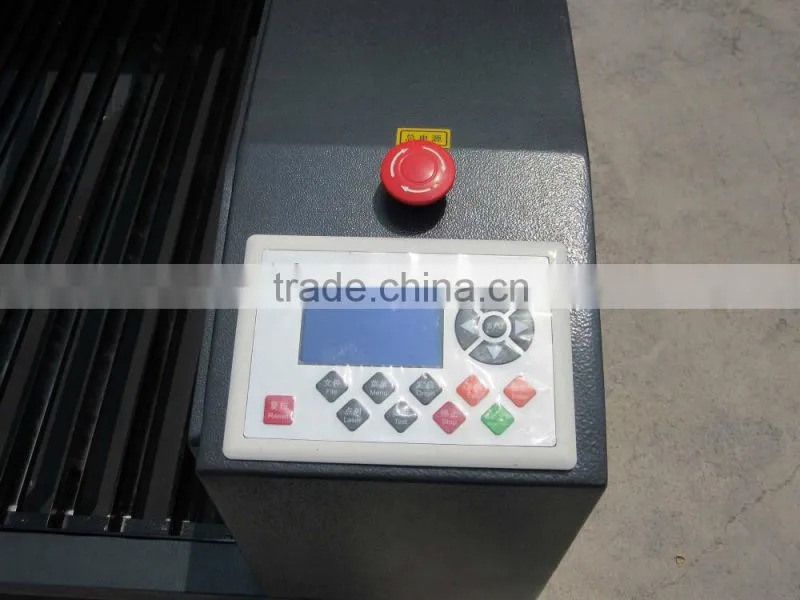

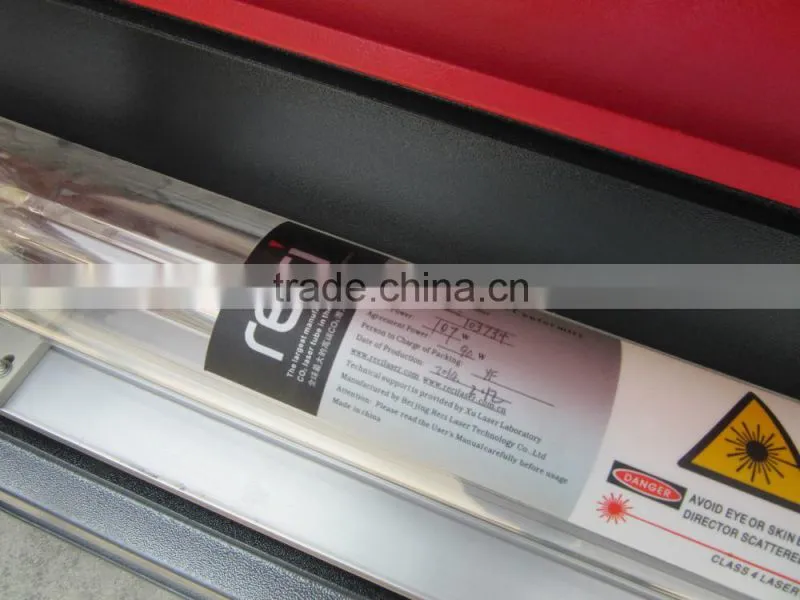

parts details
sample
1.FOB----The nearest port is Qingdao port,and we can also delivery the machine to other port according to your request.
2.CIF-------Please tell me what’s the destination port when you need CIF price.
3.If you need others, please tell me and I’d like to make it for you.
Payment terms T/T, Western Union,L/C or others,for you choice
30% in advance,70% before shipping
Jinan Shendiao Machinery Equipment Co., Ltd is the professional manufacturer and exporter of mechanical CNC router machine, laser machine and other relevant equipment. Our products are widely used in various industries. We have granted our own brand "Shendiao" or "SD". By reason of high quality products and top after-sales service, we have won trust and support of customers from all over the world.

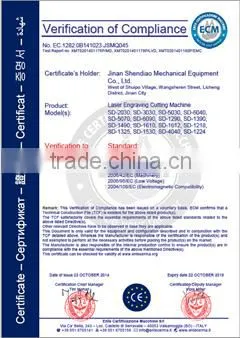

Certification
How to get the most suitable machine and best price?
please tell us:
the material you wanna handle the max size of these materials(length,width and thickness the work you wanna handle with this machine(engraving ?cutting ?or other)
Why buy from us? cheap ordered directly from manufactures, no agents,no middleman, which allow competitive pricing. We are experienced seller, select the best value products from CHINA for you, saving money and time for you. Ample stock available in our warehouse and ready to be shipped..
How long is the delivery time?
A.For standard machines, it would be 7-10 days;
For nonstandard machines and customized machines according to clients specific requirements, it
would be 15 to 30 days.
Do you arrange shipment for the machines?
A:Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
Which parts of the machine are also expendable?
The wearing parts of machine are laser tube, lens and reflectors.
What’s the guarantee?
A:1. Laser tube guarantees 12 months. While the whole machine guarantee for 1 year.
2. 24 hour’s technical support by email or calling.
3. English manual and video tutorial.
4. one year quality guaranty for the machine (excluding the consumables).
5. Lifetime maintenance free of charge.
6. We will provide the consumable parts at an agency price.
7. 12 hours on line service each day, free technical support.
How do I know that I have all the goods I ordered before the shipment?
We will make pictures for every part of the goods in order.and the pictures will be sent to our clients for confirmation before the shipment.
How can I get Machine's spare parts?
There are two methods.
You can order the spare parts together with the machine,
this is the safest way to transport the laser tube.
The other way is you can inform us when you need to replace the consumables,we will send as soon as possible.
