Specifications

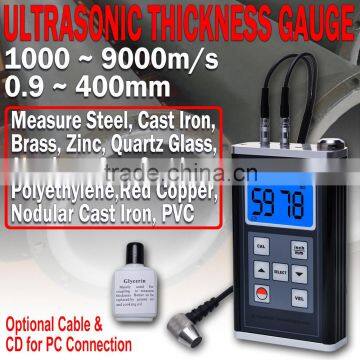

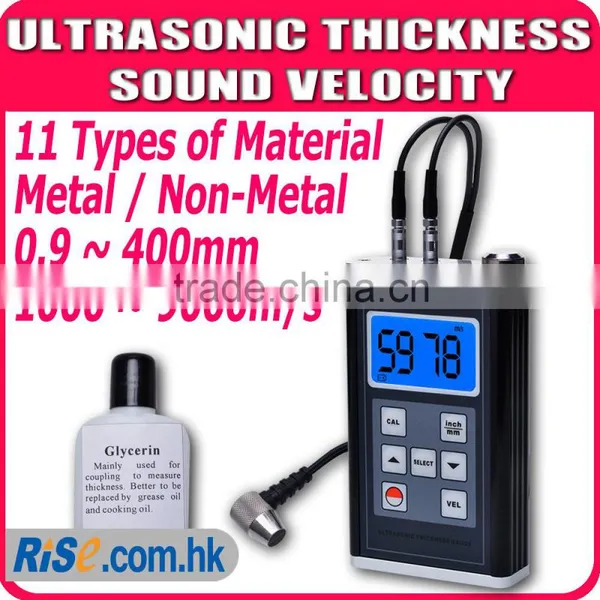

Ultrasonic Thickness Meter 0.90~400mm (TM-8818)Brief Description

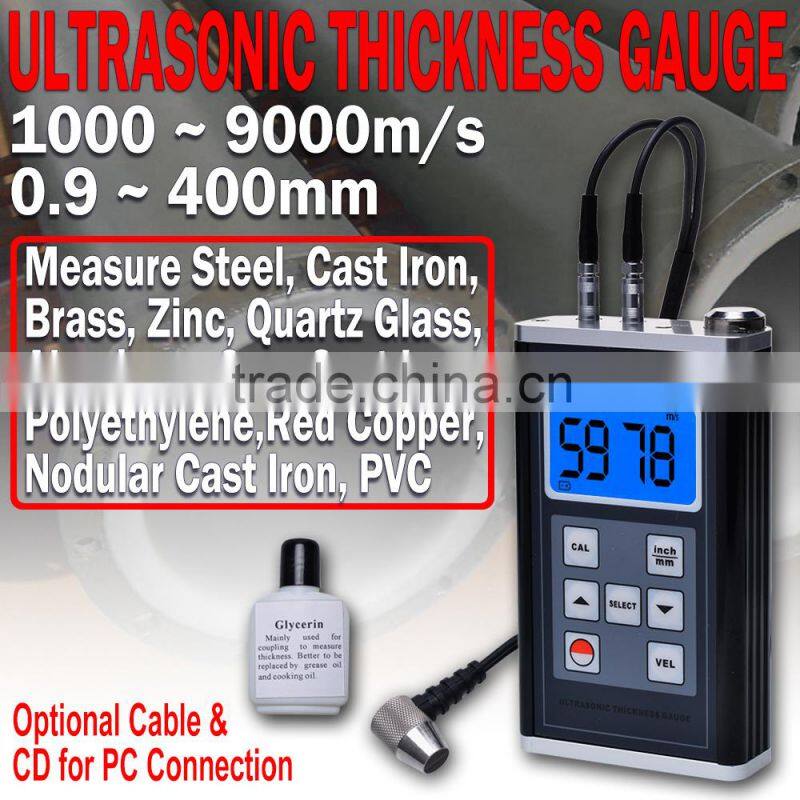

This Ultrasonic Thickness Meter (TM-8818) is designed to measure thickness and corrosion of various hard materials including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron and nodular cast iron. It employs microcomputer LSI circuit advanced microprocessor technology and crystal time base to ensure high accuracy and short measuring time but it is simple and easy to operate.
With high power of emission and broad band of receiving sensitivity, this gauge can match probes of different frequencies. It has wide measurement range from 0.90 ~ 400 mm (0.035 ~ 15.75 inch) with accurate measurements. Moreover, it has ultrasonic sound velocity measurement function from 1000 ~ 9999 m/s. Cable and software CD are optional for connection and work with PC.

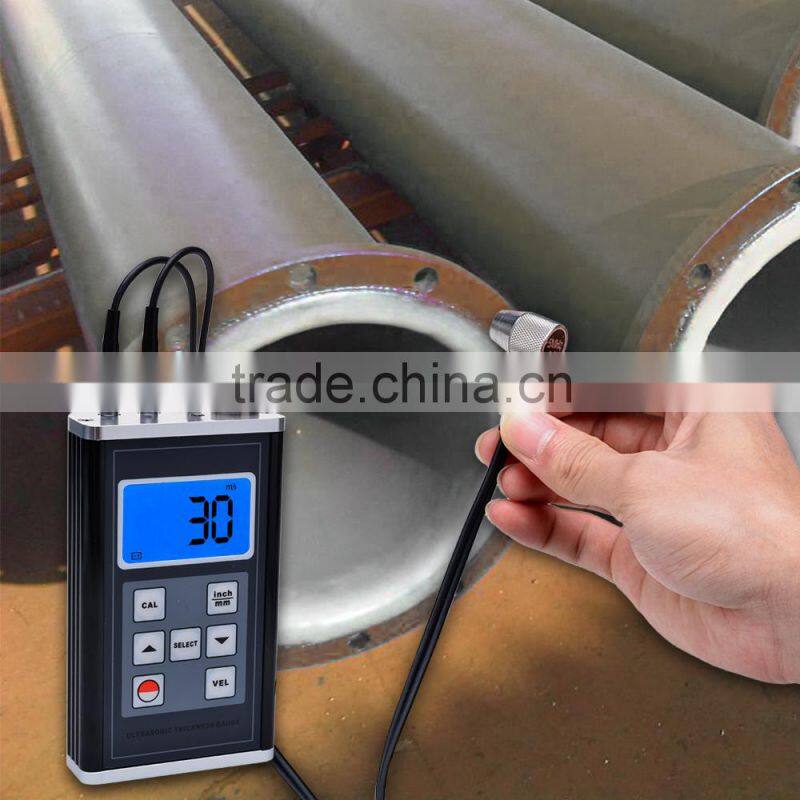

This thickness meter is widely used to measure thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, and even in the industries of petroleum, shipbuilding, power station and machine manufacturing.
Features
- Used the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement & fast measuring time
- Wide measuring range 0.90 ~ 400 mm and high resolution
- Digital display with backlight gives exact reading with no guessing errors
- With high power of emission and broad band of receiving sensitivity, it can match probes of different frequencies. That makes it easy to measure the rough surface, even cast iron.
- Applicable to measure the thickness of many materials, e.g. Steel, Cast Iron, Aluminum, Red copper, Brass, Zinc, Quartz glass, Polyethylene, PVC, Gray cast iron, Nodular cast iron
- Sound velocity measurement
- Automatic power off to conserve power

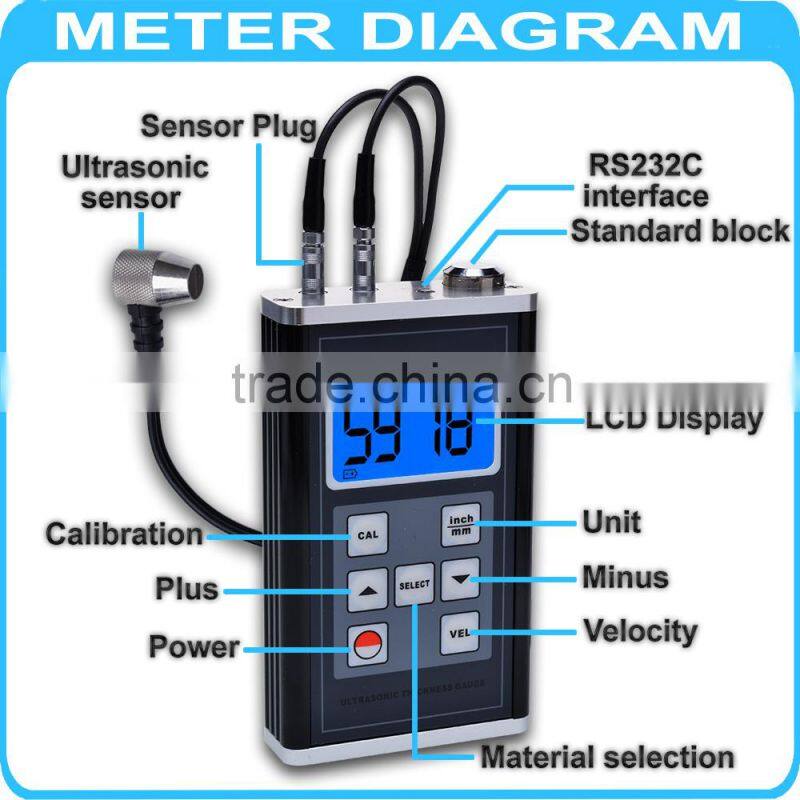

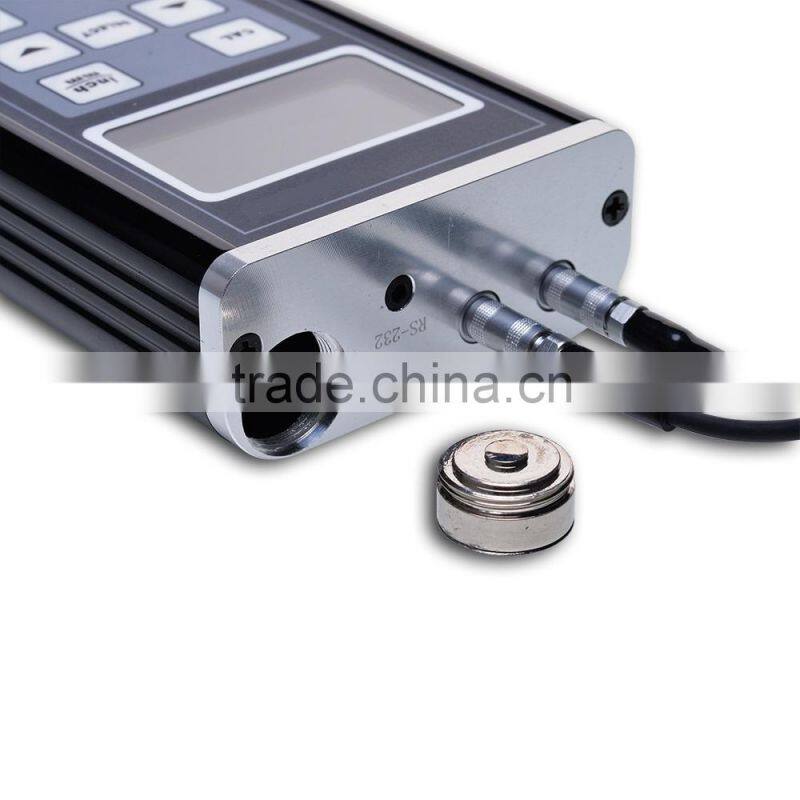

- Built with RS232C interface for computer connection (RS232C cable and software not included)
- It is widely used in almost all kinds of industries
Specifications

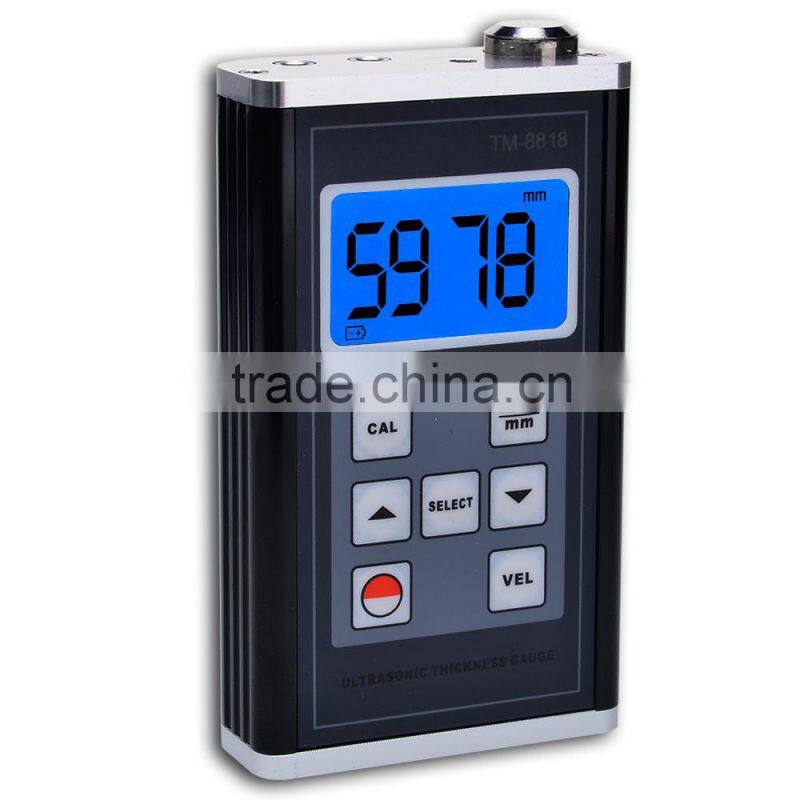

- LCD display: 4 digits LCD
- Thickness Range: 0.90 ~ 400 mm (0.035 ~ 15.75 inch)
- Resolution: 0.1 mm / 0.01mm / 0.001 inch
- Accuracy: ± (0.5%n + 0.1)
- Sound Velocity Range: 1000 - 9000 m/s

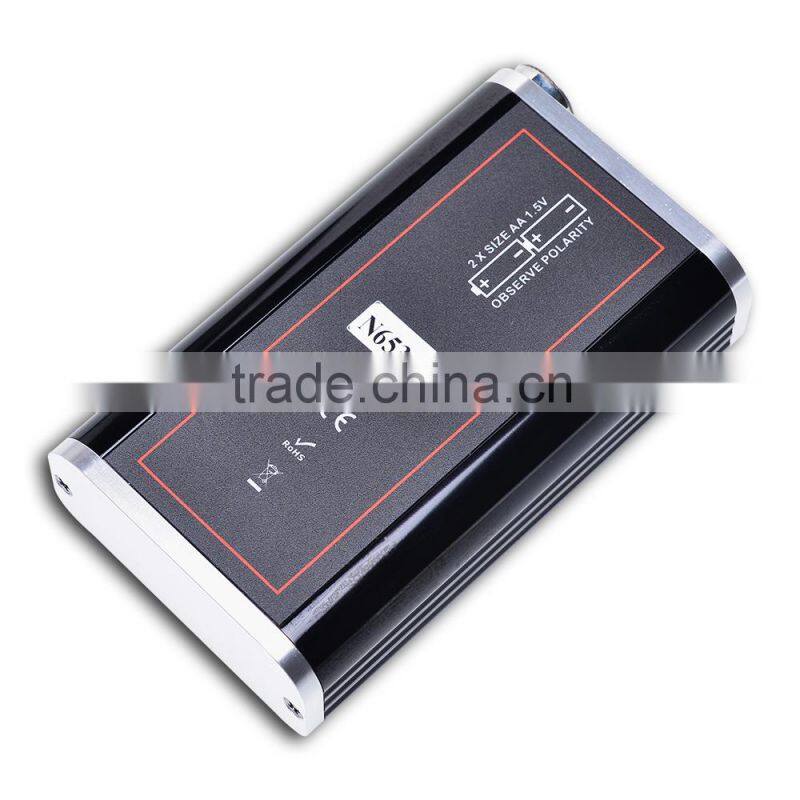

- Power supply: 2 x 1.5V AA battery (not included)
- Operation Temperature: 0 - 40°C (32 - 104°F)
- Operation Humidity: < 80%
- Unit Size: 130 x 76 x 32 mm (5.1 x 3.0 x 1.3 inch)
- Unit Weight: approx. 340g (11.99oz)

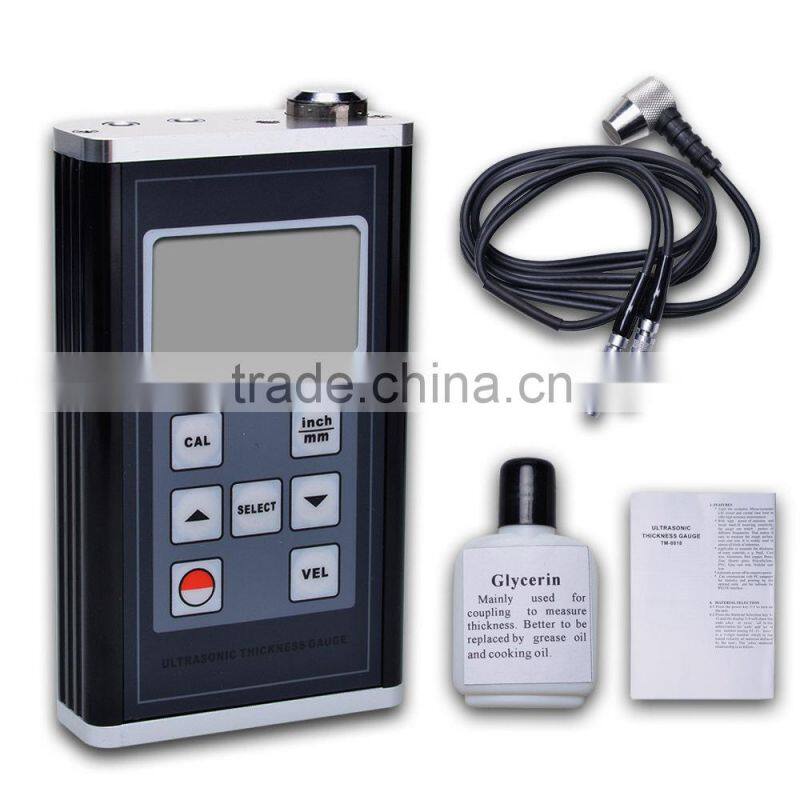

One Set Included
- 1 x Thickness Meter

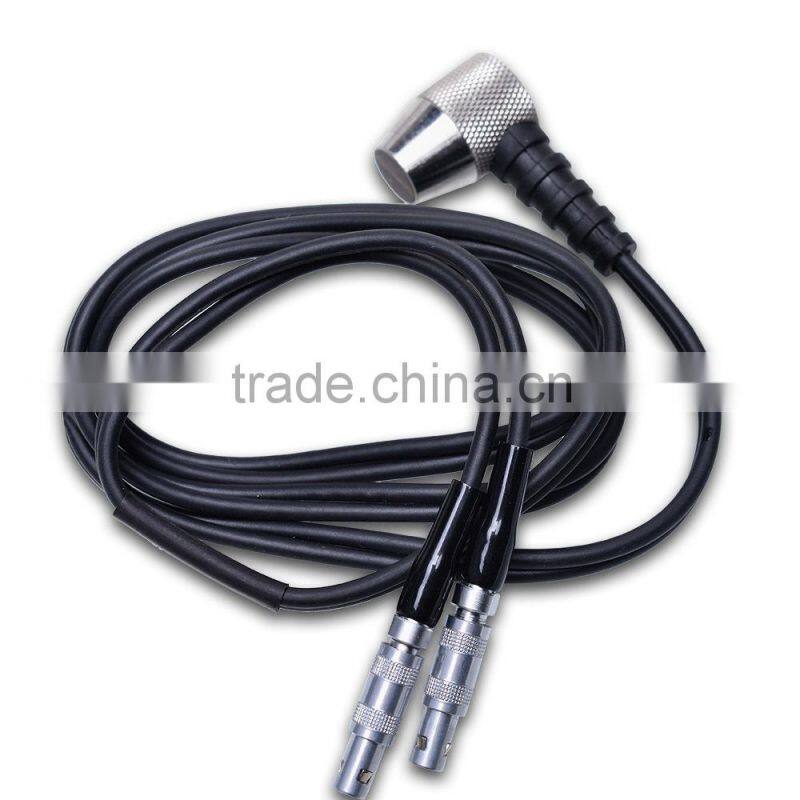

- 1 x Ultrasonic Sensor
- 1 x Bottle of Glycerin
- 1 x Instruction Manual
- Standard Factory Package
- Optional RS232C Cable & Software CD (US $37.9 / GBP £23.5 / AU $42.9 / EUR €29,9 only)
