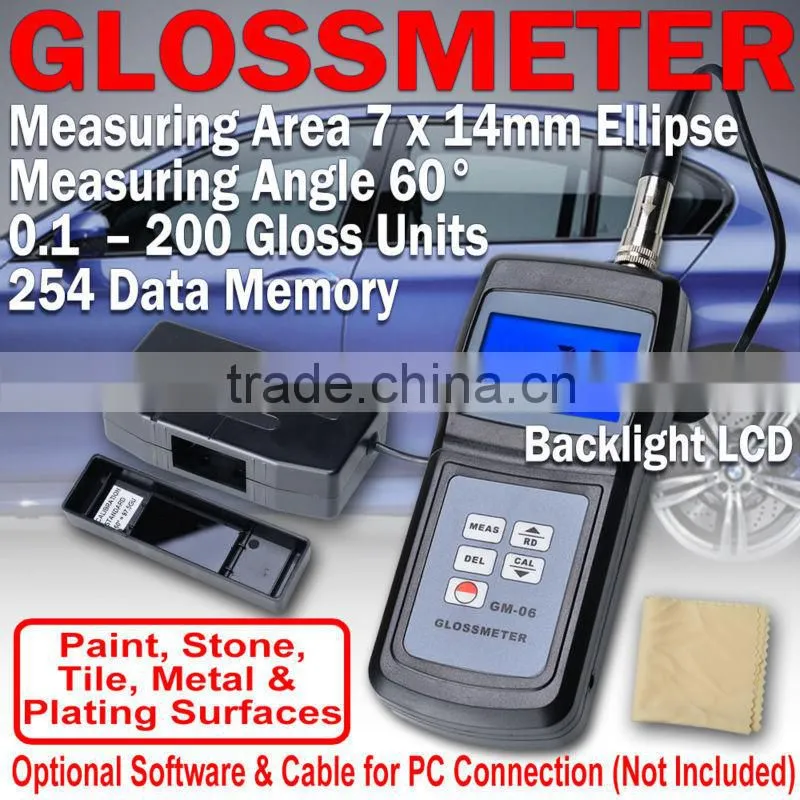

Handheld Digital Gloss Meter 60 Degree Tile Floor Metal Surface 0.1 ~ 200 w

Specifications

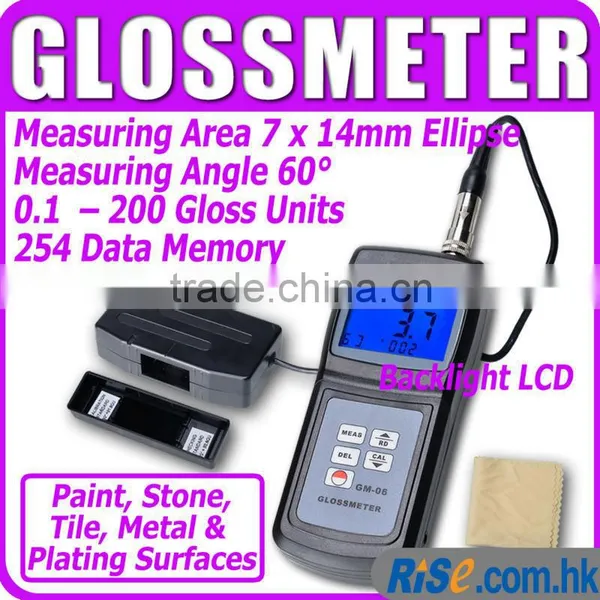

Handheld Digital Glossmeter with Measuring Angles 60 Degree

Brief Description



This compact and portable glossmeter is used to measure specular reflection gloss of a surface. Gloss is determined by projecting a beam of light at a fixed intensity and angle onto a surface and measuring the amount of reflected light at an equal but opposite angle. This glossmeter supports measuring angle of 60° and features 254 groups data memory. It comes with a separated probe and calibration standard.



Many international technical standards are available that define the method of use and specifications for different types of glossmeter used on various types of materials including paint, ceramics, paper, metals and plastics. Many industries use glossmeters in their quality control to measure the gloss of products to ensure consistency in their manufacturing processes. The automotive industry is a major user of the glossmeter, with applications extending from the factory floor to the repair shop.



Applications:

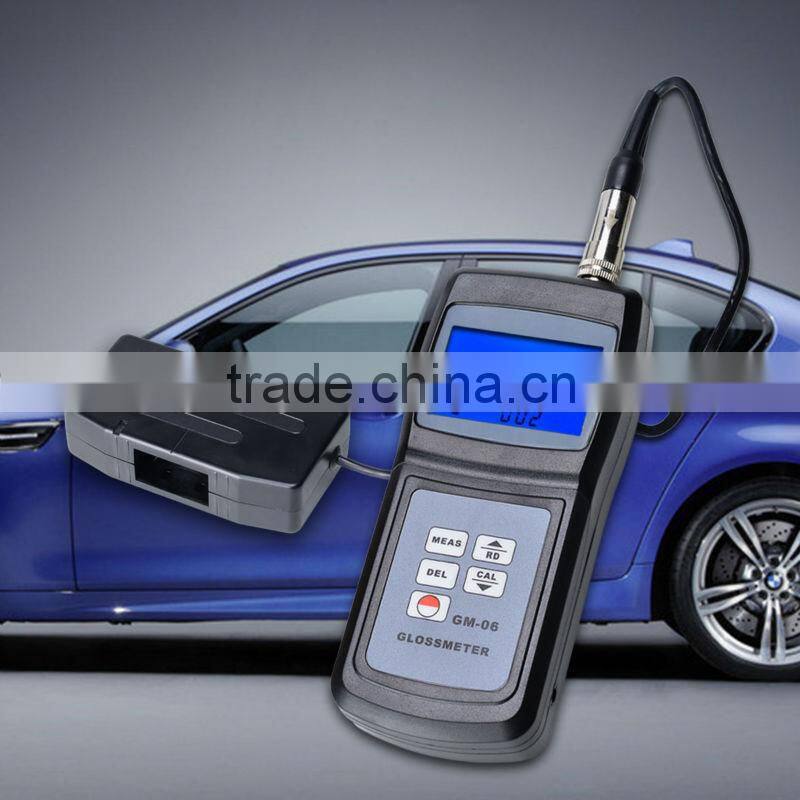

Widely used in floor maintenance, surface cleaning quality control, stone and tile gloss measurement, printed materials checking, quality control of paint and ink, polished metal surface measurement (chrome plating), inspection of paint protectyion and waxing, automotive body paint inspection, surface inspection of plastic moldings, evaluation of detergents and washers, masonry and building exteriors checking.

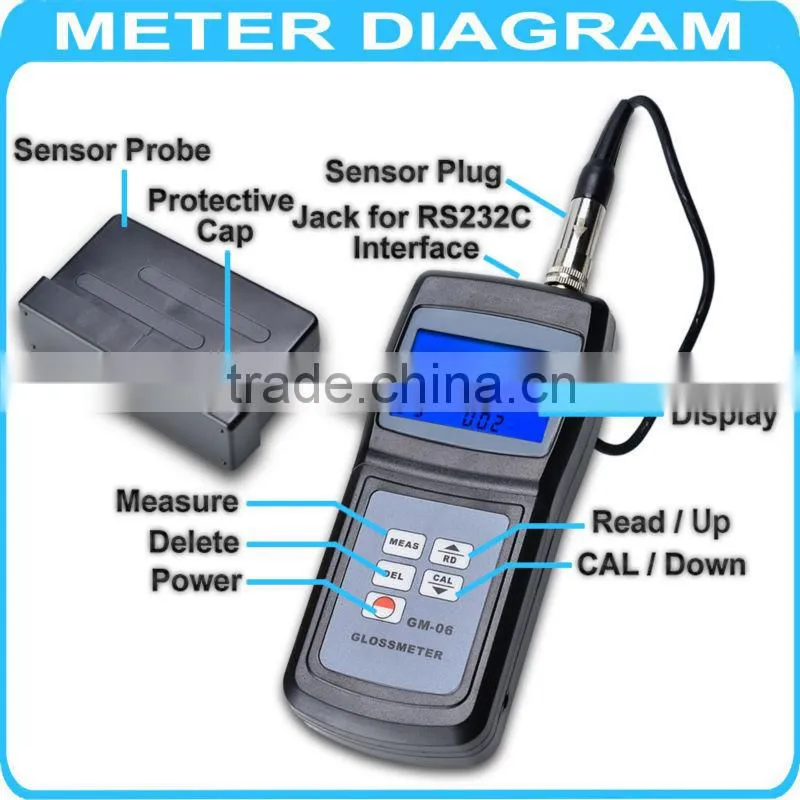

Features

• Compact and portable glossmeter with backlight LCD
• Measuring angle of  60°
• Store up to 254 groups of data with measurement conditions
• Memory recall function

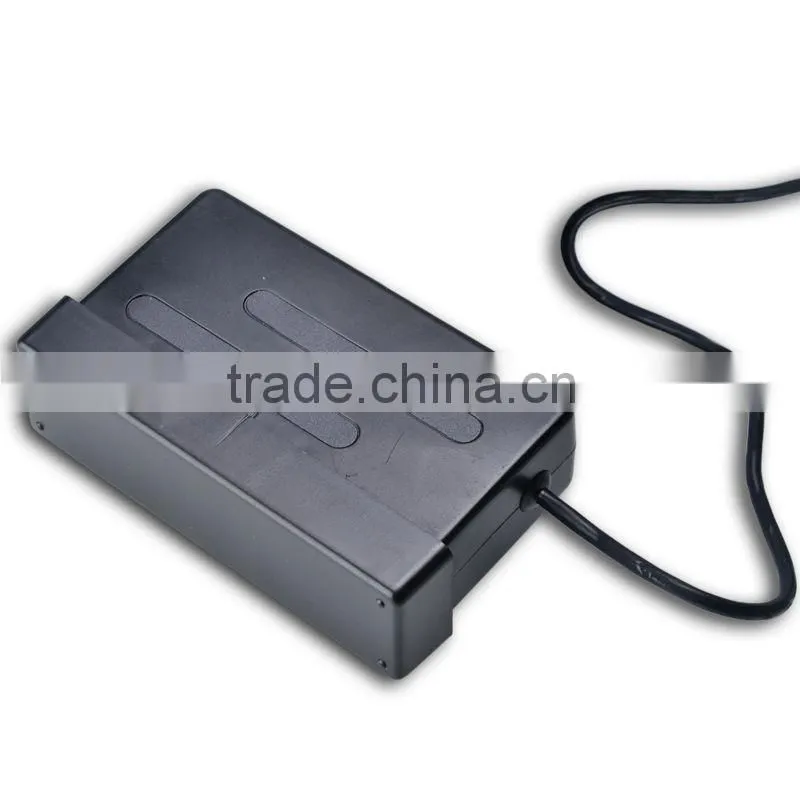

• Separated probe for flexible and convenient measurement
• Factory calibrated
• Calibration standard included
• Auto power off to conserve battery when idle for 30 minutes

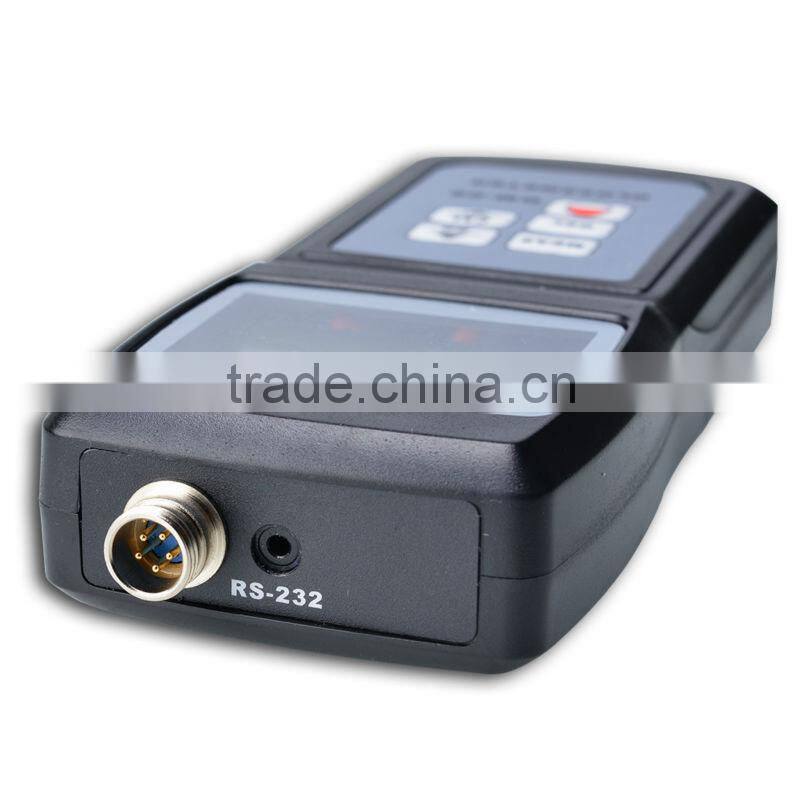

• Built with RS232C interface for computer connection (RS232C cable and software not included)

• Designed and manufactured in accordance with international standard ASRM D523, ASTM D1455, ASTM C346, ASTM C584, ASTM D2457, DIN EN ISO 2813, DIN 67530, EN ISO 7668, JIS Z 8741, MFT 30064, TAPPI T480, GB 9754, GB/T13891, GB 7706 and GB 8807
• Technical parameters conforms with JJG 696-2002





Specifications

• Display: 4 digits LCD with backlight
• Measuring Angle: 60°
• Range: 0.1 ~ 200 gloss unit (against reference standard)
• Resolution: 0.1 gloss unit
• Accuracy: ±1.0 gloss unit (against reference standard)
• Repeatability: ±0.5 GU (0...99.9)
• Measuring Area: 7 x 14mm ellipse
• Data Memory: 254 groups
• Data Output: RS232C serial interface (cable and software not included)
• Working Condition:
• Temperature: 0~40°C
• Humidity: below 85%
• Power Source: 4 x 1.5V AAA battery (batteries not included)
• Item Dimensions:
• Main Unit: 146 x 67 x 28mm
• Sensor Probe: 58 x 28 x 108mm
• Item Weight: about 300g with batteries

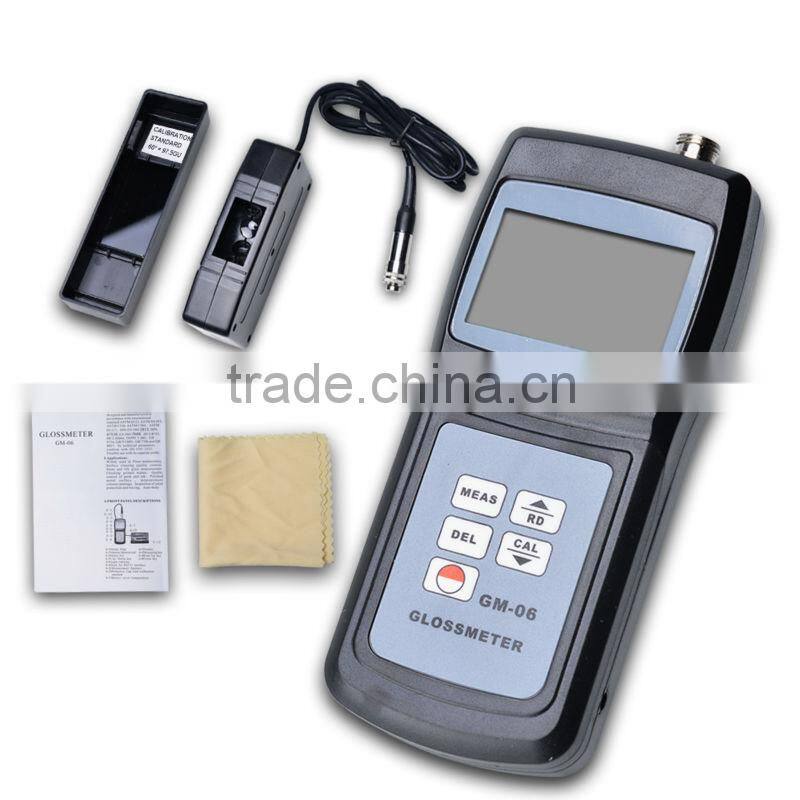

One Set Included

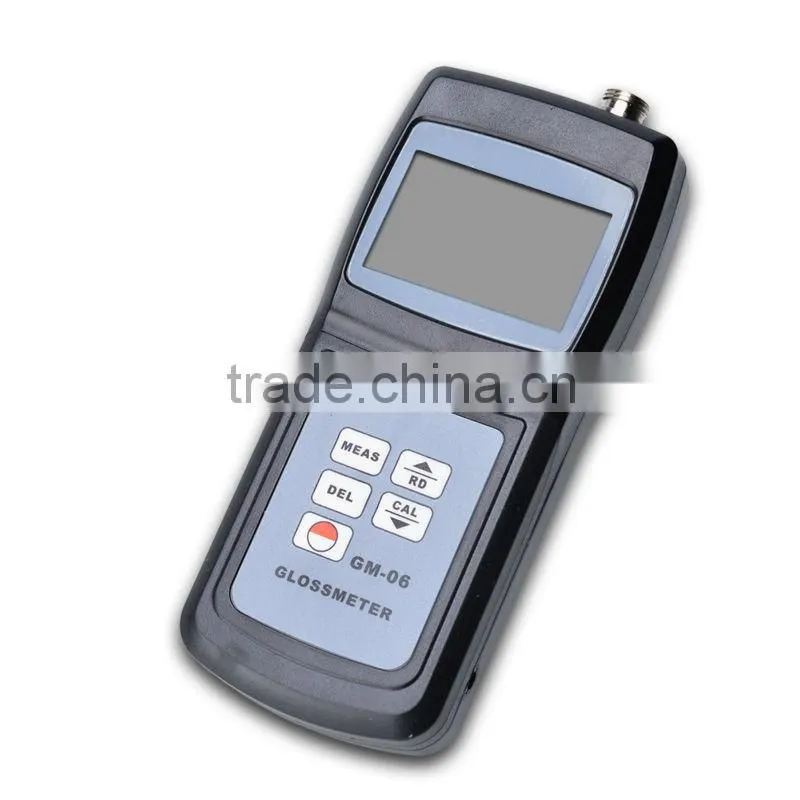

• 1 x Glossmeter

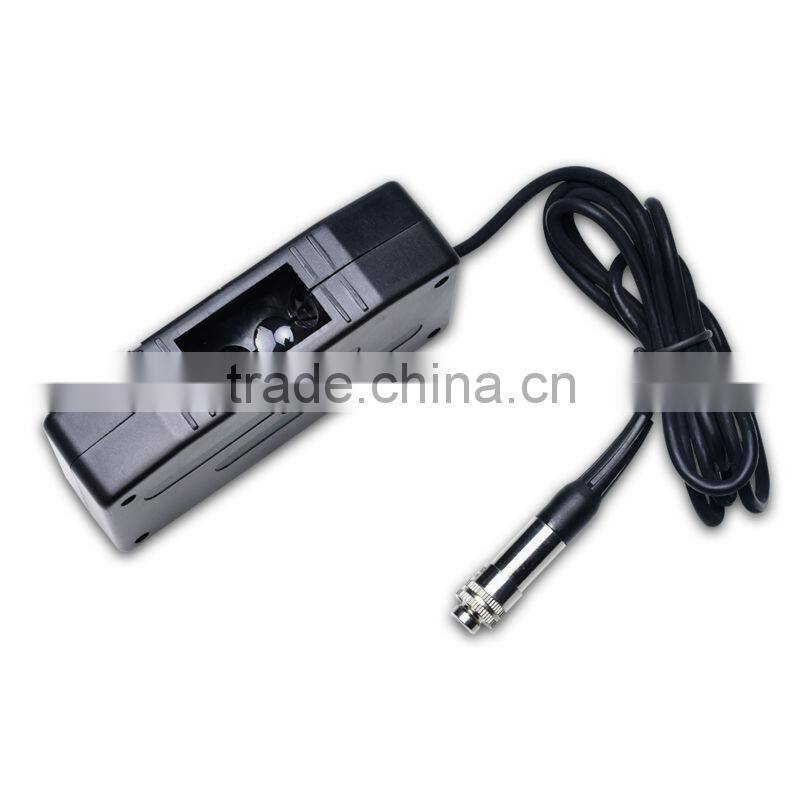

• 1 x External Probe

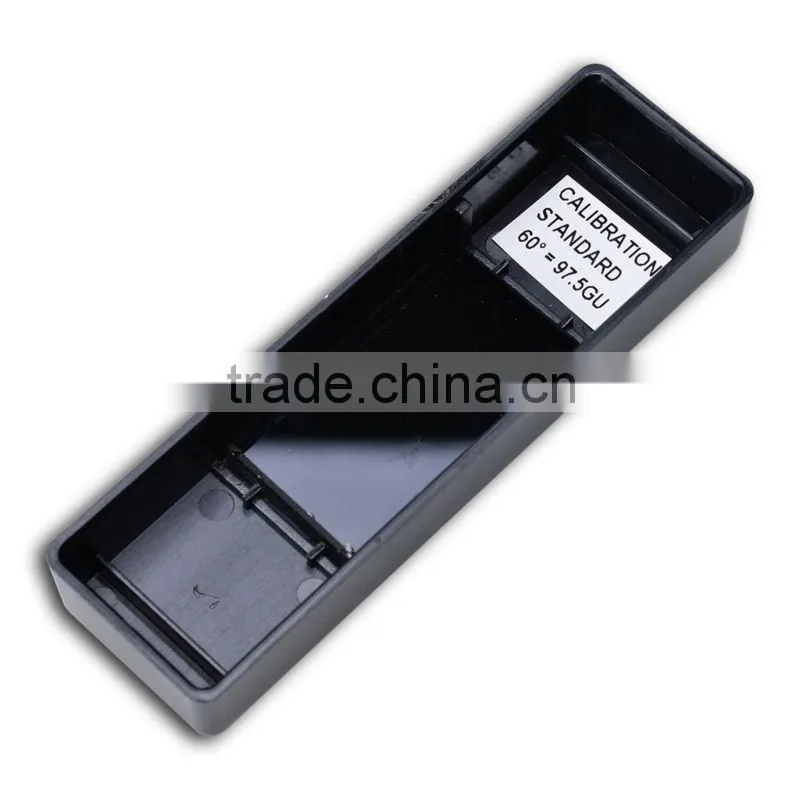

• 1 x Holder with Calibration Standard
• 1 x Optic Cleaning Cloth
• 1 x Operation Manual
• Standard Factory Packaging

• Optional RS232C Cable & Software CD (US $37.9 / GBP £23.5 / AU $42.9 / EUR €29,9 only)
