Gauge F/NF Probes Automotive Painting Paint Coating Thickness Meter
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
TM-101
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Paint Coating Gauge F/NF Probes Painting Non-magnetic Thickness MeterNegotiableMOQ: 1 Piece -
Gauge F/NF Probes Automotive Painting 0~50 Mil Paint Coating Thickness MeterNegotiableMOQ: 1 Piece
-
Tester Gauge Velocity 1.2~225mm Metal Wave Ultrasonic Thickness MeterNegotiableMOQ: 1 Piece
-
Automotive Car Paint Coating Painting 0~50mil F/NF Probes Gauge Thicknes MeterNegotiableMOQ: 1 Piece
-
1.5~200mm Ultrasonic Metal Thickness Meter GaugeNegotiableMOQ: 1 Piece
Place of Origin
China
Model Number
TM-101
Specifications

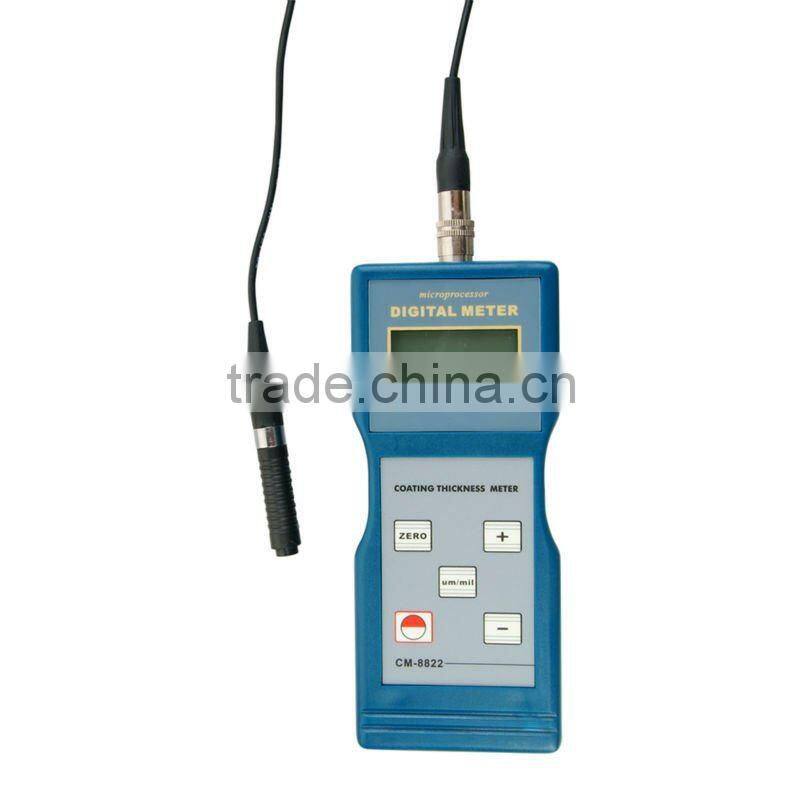

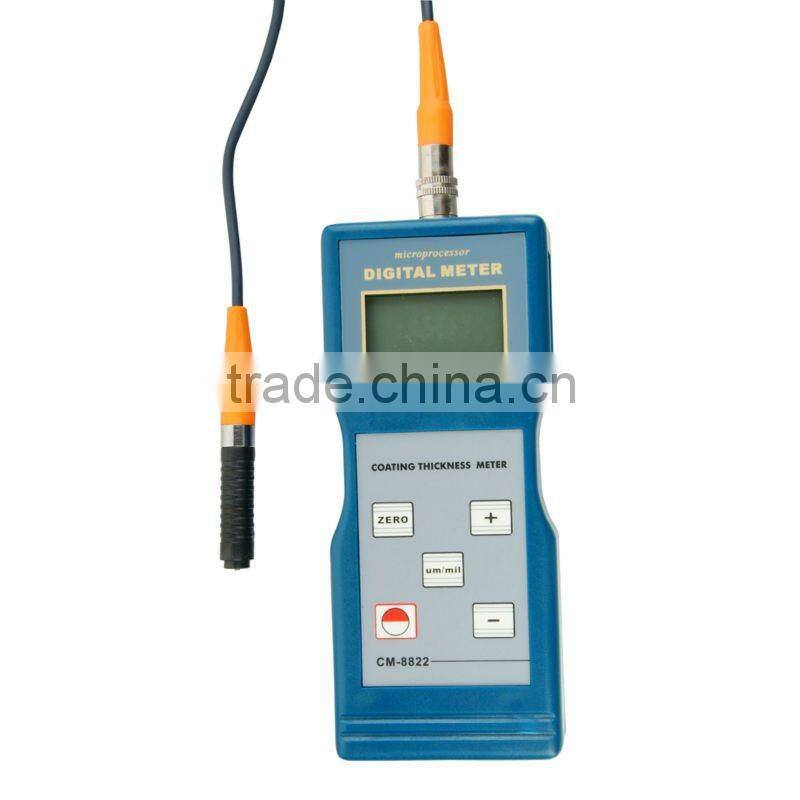

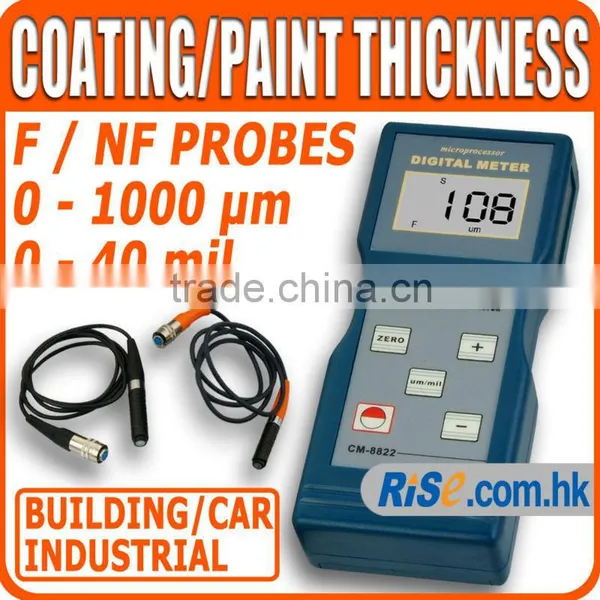

Paint Coating Thickness Meter with F/NF ProbesBrief Description
This Coating Thickness Meter is an ideal gauge for automotive and painting applications. It uses magnetic induction and eddy current principle to measure thickness of magnetic and non-magnetic surface and detect the thickness of nonmagnetic coating on a magnetic substrate (ferrous, F) or an insulating coating on a non-magnetic conductive substrate (non-ferrous, NF).
It's usage of Microcomputer LSI circuit advanced microprocessor technology and crystal time base guarantees that measurement has highest level of accuracy with fast measuring time.
The meter is equipped with NF (NFe) probe used in procedure turbulence current test and F(Fe) that uses magnet inductive. It carries out fast and accurate results with wide measuring range of 0 ~ 1000 μm (0 ~ 40 mil). Moreover, you can connect to the computer to collect and retrieve the Measured Data through software and cables (not included) .
Features
- The F probes measure the thickness of non-magnetic materials such as paint, plastic porcelain enamel, copper, zinc, aluminum, chrome on magnetic materials such as iron, nickel etc. It is often used to measure the thickness of galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminum tile, some alloy tile and paper
- The NF probes measure the thickness of non-magnetic coatings on non-magnetic metals. It is used on anodizing, varnish, paint, enamel, plastic coatings, powder applied to aluminum, brass and non-magnetic stainless steel etc
- Used the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement & fast measuring time
- Wide measuring range (0 ~ 1000 μm / 0 ~ 40 mil) and high resolution
- Digital display with no guessing errors
- The use of durable, long lasting components, including a strong and light weight ABS plastic housing assures maintenance free
- Low Battery Indicator
- Switchable between mils and microns
- Automatic or Manual Power off
- Automatic Calibration (when no other metal substrate nears the probe sensor upon switching on)
- Meets the standards of both ISO2178 and ISO2316. Suitable for the laboratory and for use in harsh field conditions
- Conform with CE Standard
Specifications
- LCD display: 4 digits, 10mm LCD
- Operating Principle: magnetic induction & eddy current (F & NF)
- Coating Thickness Range: 0 ~ 1000 μm / 0 ~ 40 mil
- Minimum Measuring Area: 6 mm (0.01 inch)
- Minimum Sample Thickness: 0.3 mm (0.24 inch)
- Resolution: 0.1 μm (0 ~ 99.9 μm); 1 μm (over 100 μm)
- Accuracy: ± 1 - 3% n or 2.5 μm (whichever is greater)
- Power supply: 4 x 1.5V AA (UM3) batteries (not included)
- Operation Temperature: 0 ~ 50 °C (32 ~ 122 °F)
- Operation Humidity: below 80%
- Item Size: approx. 161 (L) x 69 (W) x 32 (D) mm (6.3 x 2.7 x 1.2 inch)
- Item Weight: approx. 360 g (9.17 oz) (batteries included)

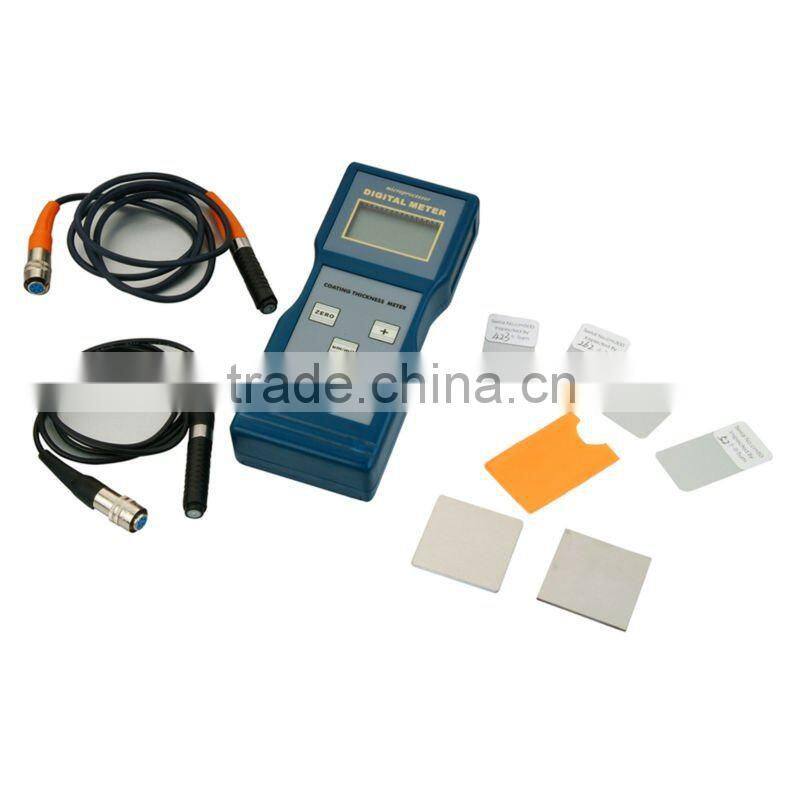

One Set Included
- 1 x Coating Thickness Gauge (main unit)
- 1 x F probe (accessory)
- 1 x NF probe (accessory)
- 4 x Calibration foils
- 1 x Aluminum substrate
- 1 x Iron substrate
- 1 x Instruction Manual
- 1 x Black Storage Case with handle
- Standard Factory Package
